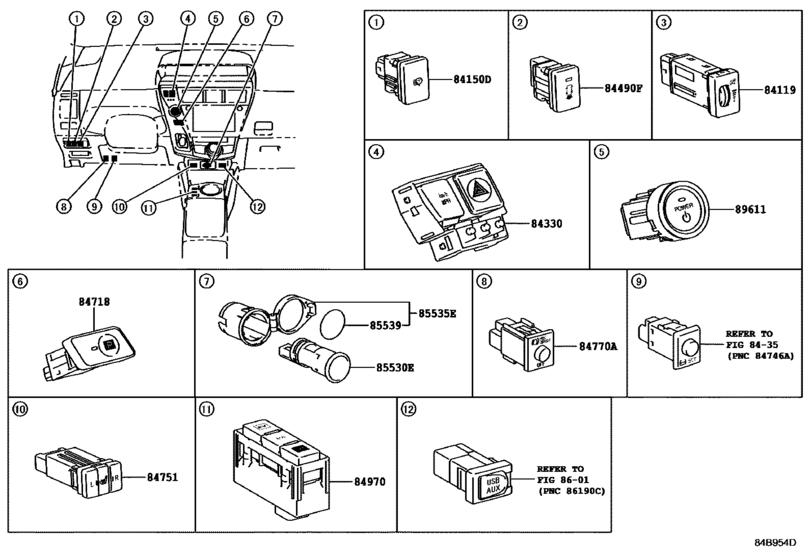

Switch & Relay & Computer ([09.2011 - 11.2014] INSTRUMENT PANEL (1109-1411)) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW41
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS V
- From
- 09.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-47030
Rheostat, Light Control
[09.2011 - 11.2014] ZVW41 |
84119-47030 |
— | ||
| replacement | |||||
|
84119
|
84119
84119-47031
Rheostat, Light Control
[09.2011 - 11.2014] ZVW41 |
84119-47031 |
— | ||
|
84119
|
84119
84119-47031
Rheostat, Light Control
[03.2015 -] ZVW41; ZVW41..USA KOREA SPEC |
84119-47031 |
— | ||
|
84150D
|
84150D
84150-47010 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [09.2011 - 11.2014] ZVW41 HEADLAMP-LED |
84150-47010 |
US $39.60 |
||
| replacement | |||||
|
84150D
|
84150D
84150-47011 Switch Assy, Headlamp Cleaner[09.2011 - 11.2014] ZVW41 HEADLAMP-LED |
84150-47011 |
US $35.96 |
||
|
84330
|
84330
84330-47040
Switch Assy, Hazard Warning Signal
[11.2014 -] ZVW41..USA KOREA SPEC |
84330-47040 |
— | ||
|
84330
|
84330
84330-47070
Switch Assy, Hazard Warning Signal
[09.2011 - 11.2014] ZVW41 |
84330-47070 |
— | ||
|
84330
|
84330
84330-47110
Switch Assy, Hazard Warning Signal
[05.2016 - 12.2017] ZVW41 |
84330-47110 |
— | ||
|
84490F
|
84490F
84490-28030 Switch Assy, Ipa Pre SupportIPA PRE SUPPORT [09.2011 - 11.2014] ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOT H; ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
84490-28030 |
US $34.36 |
||
| replacement | |||||
|
84490F
|
84490F
84490-28031 Switch Assy, Ipa Pre Support[09.2011 - 11.2014] ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOT H; ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
84490-28031 |
US $34.36 |
||
|
84718
|
84718
84718-47040
Switch, Transmission Shift Main
[09.2011 - 11.2014] ZVW41 |
84718-47040 |
— | ||
|
84718
|
84718
84718-47041
Switch, Transmission Shift Main
[11.2014 -] ZVW41 |
84718-47041 |
— | ||
|
84751
|
84751
84751-47030 Switch, Seat Heater[09.2011 - 11.2014] ZVW41 SEAT COVER MATERIAL-LEATHER |
84751-47030 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47031 Switch, Seat Heater[09.2011 - 11.2014] ZVW41 SEAT COVER MATERIAL-LEATHER |
84751-47031 |
US $55.18 |
||
|
84751
|
84751
84751-47031 Switch, Seat Heater[01.2015 -] ZVW41 SEAT COVER MATERIAL-SYNTHETIC LEATHER |
84751-47031 |
US $55.18 |
||
|
84770A
|
84770A
84770-48010 Switch Assy, Pre-Collision System Cancel[09.2011 - 11.2014] ZVW41 PRE-COLLISION SYSTEM-WITH |
84770-48010 |
US $34.36 |
||
|
84970
|
84970
84970-47020 Switch Assy, Combination[09.2011 - 11.2014] ZVW41 |
84970-47020 |
US $111 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[09.2011 - 11.2014] ZVW41 |
85530-42010 |
from US $26.60 |
||
|
85535E
|
85535E
85535-60100-C0 Cover, Power Outlet Socket, No.1 (Black)[09.2011 - 11.2014] ZVW41 BLACK |
85535-60100-C0 |
US $8.32 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[09.2011 - 11.2014] ZVW41 |
85539-60020 |
US $1.41 |
||
|
89611
|
89611
89611-33023 Switch, Push Start[05.2016 -] ZVW41 |
89611-33023 |
US $175.68 |
||
|
89611
|
89611
89611-75042 Switch, Push Start[09.2011 - 02.2012] ZVW41 |
89611-75042 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[09.2011 - 02.2012] ZVW41 |
89611-75044 |
US $210.24 |
||
|
89611
|
89611
89611-75043 Switch, Push Start[03.2012 - 11.2014] ZVW41 |
89611-75043 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[03.2012 - 11.2014] ZVW41 |
89611-75044 |
US $210.24 |
||
|
89611
|
89611
89611-75044 Switch, Push Start[04.2016 - 05.2016] ZVW41 |
89611-75044 |
US $210.24 |
||
