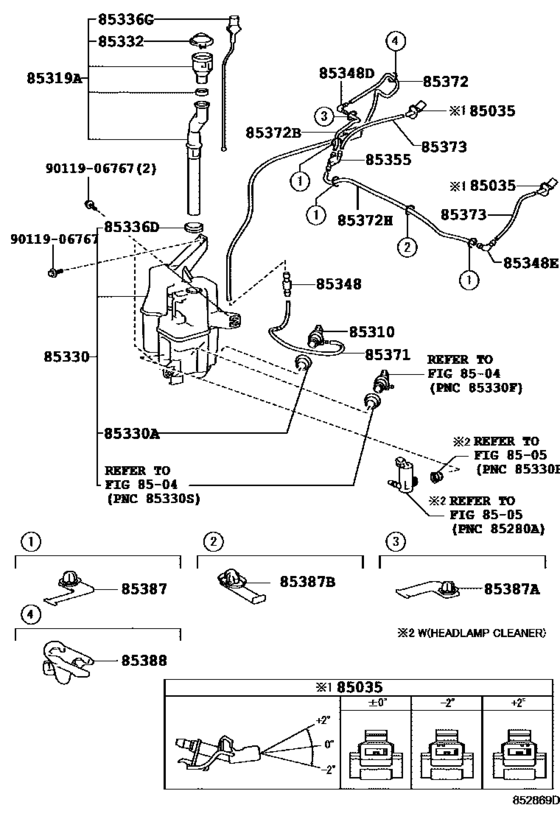

Windshield Washer ([09.2011 - ] (1109- )) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW41
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS V
- From
- 09.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12330 Nozzle Sub-Assy, Washer[09.2011 - 11.2014] ZVW41 ANGLE 0 |
85381-12330 |
from US $7.51 |
||
|
85035
|
85035
85381-12340
Nozzle Sub-Assy, Washer
[09.2011 - 11.2014] ZVW41 ANGLE -2 |
85381-12340 |
— | ||
|
85035
|
85035
85381-12350 Nozzle Sub-Assy, Washer[09.2011 - 11.2014] ZVW41 ANGLE +2 |
85381-12350 |
from US $7.51 |
||
|
85310
|
85310
85330-47010 Motor And Pump Assy, Windshield Washer[09.2011 - 11.2011] ZVW41 HEADLAMP-LED |
85330-47010 |
from US $49.97 |
||
|
85319A
|
85319A
85319-47120
Hose, Inlet
[09.2011 - 11.2011] ZVW41 HEADLAMP-LED |
85319-47120 |
— | ||
|
85319A
|
85319A
85319-47121
Hose, Inlet
[08.2013 - 11.2014] ZVW41; ZVW41 HEADLAMP-LED |
85319-47121 |
— | ||
|
85319A
|
85319A
85319-47220
Hose, Inlet
[11.2014 -] ZVW41 |
85319-47220 |
— | ||
|
85330
|
85330
85315-47140 Jar Assy, Windshield WasherWINDSHIELD WASHER [09.2011 - 11.2014] ZVW41 |
85315-47140 |
US $84.45 |
||
|
85330
|
85330
85315-47220
Jar Assy, Windshield Washer
[11.2014 -] ZVW41 |
85315-47220 |
— | ||
|
85330
|
85330
85355-47020 Jar Assy, Windshield Washer[09.2011 - 11.2011] ZVW41 HEADLAMP-LED |
85355-47020 |
from US $62.34 |
||
|
85330
|
85330
85355-47021 Jar Assy, Windshield Washer[11.2011 - 11.2014] ZVW41 HEADLAMP-LED |
85355-47021 |
US $133.20 |
||
|
85330A
|
85330A
85336-60300 Bush, Windshield Washer Jar[09.2011 - 11.2011] ZVW41 HEADLAMP-LED |
85336-60300 |
from US $1.92 |
||
|
85332
|
85332
85316-47120
Cap, Windshield Washer Jar
[08.2013 - 11.2014] ZVW41 |
85316-47120 |
— | ||
|
85332
|
85332
85316-47220
Cap, Windshield Washer Jar
[11.2014 -] ZVW41 |
85316-47220 |
— | ||
|
85332
|
85332
85386-60060 Cap, Windshield Washer Jar[09.2011 - 08.2013] ZVW41 |
85386-60060 |
from US $2.09 |
||
|
85336D
|
85336D
85336-30160 Bush, Windshield Washer Jar[09.2011 - 11.2011] ZVW41 HEADLAMP-LED |
85336-30160 |
from US $3.32 |
||
|
85336G
|
85336G
85318-47110
Filter, Windshield Washer Jar
[09.2011 - 11.2014] ZVW41 |
85318-47110 |
— | ||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[09.2011 - 11.2014] ZVW41 |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-20200 Joint, Windshield Washer Hose, No.1[09.2011 - 11.2014] ZVW41 |
85355-20200 |
from US $1.03 |
||
|
85348E
|
85348E
85355-20200 Joint, Windshield Washer Hose, No.1[09.2011 - 11.2014] ZVW41 |
85355-20200 |
from US $1.03 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[09.2011 - 11.2014] ZVW41 |
85321-28020 |
from US $10.65 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.2011 - 11.2011] ZVW41 *H,L=470; ZVW41 *H,L=470,HEADLAMP-LED |
90099-33080 |
from US $5.95 |
||
|
85371
|
85371
90099-62091
Hose, Windshield Washer (From Motor To Joint)
[11.2011 - 11.2014] ZVW41 L=470; ZVW41 L=470,HEADLAMP-LED |
90099-62091 |
— | ||
|
85371
|
85371
90099-62096
Hose, Windshield Washer (From Motor To Joint)
[11.2014 -] ZVW41 L=430 |
90099-62096 |
— | ||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.2011 - 11.2014] ZVW41 *H,L=1360 |
90099-33080 |
from US $5.95 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.2011 - 11.2014] ZVW41 *H,L=300 |
90099-33080 |
from US $5.95 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.2011 - 11.2014] ZVW41 *H,L=810 |
90099-33080 |
from US $5.95 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.2011 - 11.2014] ZVW41 *H,L=250 |
90099-33080 |
from US $5.95 |
||
|
85387
|
85387
82711-2C160 Clamp, Sliding Roof Or Removable Roof Drain Hose[09.2011 - 11.2014] ZVW41 |
82711-2C160 |
US $1.44 |
||
|
85387A
|
85387A
82711-2C170 Clamp, Sliding Roof Or Removable Roof Drain Hose[09.2011 - 11.2014] ZVW41 |
82711-2C170 |
US $1.44 |
||
|
85387B
|
85387B
82711-52090 Clamp[09.2011 - 11.2014] ZVW41 |
82711-52090 |
from US $0.96 |
||
|
85388
|
85388
85387-47180
Clamp No.2 (For Windseield Washer)
[09.2011 - 11.2014] ZVW41 |
85387-47180 |
— | ||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
