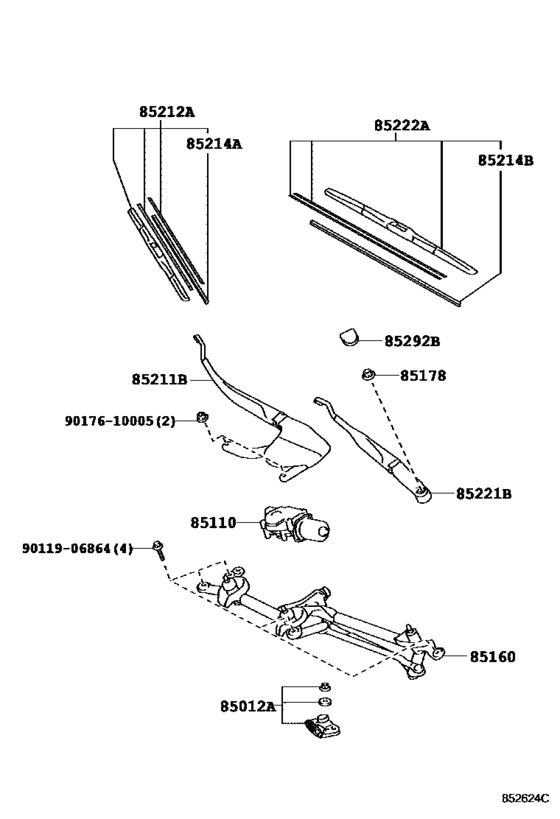

Windshield Wiper ([09.2011 - ] (1109- )) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW41
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS V
- From
- 09.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85012A
|
85012A
85012-47020
Crank Sub-Assy, Front Wiper
[09.2011 - 11.2014] ZVW41 |
85012-47020 |
— | ||
| replacement | |||||
|
85012A
|
85012A
85012-47021
Crank Sub-Assy, Front Wiper
[09.2011 - 11.2014] ZVW41 |
85012-47021 |
— | ||
|
85012A
|
85012A
85012-47021
Crank Sub-Assy, Front Wiper
[12.2015 -] ZVW41 |
85012-47021 |
— | ||
|
85012A
|
85012A
85012-47040
Crank Sub-Assy, Front Wiper
[11.2014 - 11.2015] ZVW41..USA KOREA SPEC |
85012-47040 |
— | ||
| replacement | |||||
|
85012A
|
85012A
85012-47041
Crank Sub-Assy, Front Wiper
[11.2014 - 11.2015] ZVW41..USA KOREA SPEC |
85012-47041 |
— | ||
|
85012A
|
85012A
85012-47041
Crank Sub-Assy, Front Wiper
[12.2015 -] ZVW41..USA KOREA SPEC |
85012-47041 |
— | ||
|
85110
|
85110
85110-47180
Motor Assy, Windshield Wiper
[09.2011 - 11.2014] ZVW41 |
85110-47180 |
— | ||
|
85110
|
85110
85110-47220
Motor Assy, Windshield Wiper
[11.2014 -] ZVW41..USA KOREA SPEC |
85110-47220 |
— | ||
|
85160
|
85160
85150-47160
Link Assy, Windshield Wiper
[09.2011 - 11.2014] ZVW41 |
85150-47160 |
— | ||
|
85160
|
85160
85150-47170
Link Assy, Windshield Wiper
[11.2014 -] ZVW41..USA KOREA SPEC |
85150-47170 |
— | ||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[07.2012 - 11.2014] ZVW41 |
90182-10006 |
from US $1.01 |
||
|
85211B
|
85211B
85211-47140
Arm, Front Wiper, Rh
[09.2011 - 11.2014] ZVW41 |
85211-47140 |
— | ||
|
85211B
|
85211B
85211-47151
Arm, Front Wiper, Rh
[11.2014 -] ZVW41..USA KOREA SPEC |
85211-47151 |
— | ||
|
85212A
|
85212A
85212-47060 Blade, Fr Wiper, Rh[09.2011 - 11.2014] ZVW41 |
85212-47060 |
US $34.94 |
||
|
85212A
|
85212A
85212-47100
Blade, Fr Wiper, Rh
[11.2014 - 02.2015] ZVW41..USA KOREA SPEC |
85212-47100 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-47201
Blade, Fr Wiper, Rh
[11.2014 - 02.2015] ZVW41..USA KOREA SPEC |
85212-47201 |
— | ||
|
85212A
|
85212A
85212-47101
Blade, Fr Wiper, Rh
[03.2015 - 09.2015] ZVW41..USA KOREA SPEC |
85212-47101 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-47201
Blade, Fr Wiper, Rh
[03.2015 - 09.2015] ZVW41..USA KOREA SPEC |
85212-47201 |
— | ||
|
85212A
|
85212A
85212-47201
Blade, Fr Wiper, Rh
[10.2015 -] ZVW41..USA KOREA SPEC |
85212-47201 |
— | ||
|
85214A
|
85214A
85214-47050 Rubber, Wiper, Rh[09.2011 - 12.2011] ZVW41 |
85214-47050 |
US $11.65 |
||
| replacement | |||||
|
85214A
|
85214A
85214-47051 Rubber, Wiper, Rh[09.2011 - 12.2011] ZVW41 |
85214-47051 |
US $11.65 |
||
|
85214A
|
85214A
85214-47051 Rubber, Wiper, Rh[01.2012 - 11.2014] ZVW41 |
85214-47051 |
US $11.65 |
||
|
85214A
|
85214A
85214-47070
Rubber, Wiper, Lh
[11.2014 - 10.2015] ZVW41..USA KOREA SPEC |
85214-47070 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-47160 Rubber, Wiper, Lh[11.2014 - 10.2015] ZVW41..USA KOREA SPEC |
85214-47160 |
US $12 |
||
|
85214A
|
85214A
85214-47160 Rubber, Wiper, Lh[10.2015 -] ZVW41..USA KOREA SPEC |
85214-47160 |
US $12 |
||
|
85214B
|
85214B
85214-47020
Rubber, Wiper, Rh
[11.2014 - 10.2015] ZVW41..USA KOREA SPEC |
85214-47020 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-47150 Rubber, Wiper, Rh[11.2014 - 10.2015] ZVW41..USA KOREA SPEC |
85214-47150 |
US $14.40 |
||
|
85214B
|
85214B
85214-47060
Rubber, Wiper, Lh
[09.2011 - 12.2011] ZVW41 |
85214-47060 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-47061 Rubber, Wiper, Lh[09.2011 - 12.2011] ZVW41 |
85214-47061 |
US $13.10 |
||
|
85214B
|
85214B
85214-47061 Rubber, Wiper, Lh[01.2012 - 11.2014] ZVW41 |
85214-47061 |
US $13.10 |
||
|
85214B
|
85214B
85214-47150 Rubber, Wiper, Rh[10.2015 -] ZVW41..USA KOREA SPEC |
85214-47150 |
US $14.40 |
||
|
85221B
|
85221B
85221-47120
Arm, Front Wiper, Lh
[09.2011 - 11.2014] ZVW41 |
85221-47120 |
— | ||
|
85221B
|
85221B
85221-47131
Arm, Front Wiper, Lh
[11.2014 -] ZVW41..USA KOREA SPEC |
85221-47131 |
— | ||
|
85222A
|
85222A
85222-47040 Blade, Fr Wiper, Lh[09.2011 - 11.2014] ZVW41 |
85222-47040 |
US $62.46 |
||
|
85222A
|
85222A
85222-47080
Blade, Fr Wiper, Lh
[11.2014 - 02.2015] ZVW41..USA KOREA SPEC |
85222-47080 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-47151
Blade, Fr Wiper, Lh
[11.2014 - 02.2015] ZVW41..USA KOREA SPEC |
85222-47151 |
— | ||
|
85222A
|
85222A
85222-47081
Blade, Fr Wiper, Lh
[03.2015 - 09.2015] ZVW41..USA KOREA SPEC |
85222-47081 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-47151
Blade, Fr Wiper, Lh
[03.2015 - 09.2015] ZVW41..USA KOREA SPEC |
85222-47151 |
— | ||
|
85222A
|
85222A
85222-47151
Blade, Fr Wiper, Lh
[10.2015 -] ZVW41..USA KOREA SPEC |
85222-47151 |
— | ||
|
85292B
|
85292B
85292-13010 Cover, Windshield Wiper Arm[09.2011 - 11.2014] ZVW41 |
85292-13010 |
from US $4 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
|
9017610005
|
9017610005
90176-10005 Nut (For Front Wiper Arm Setting) |
90176-10005 |
from US $0.99 |
||
