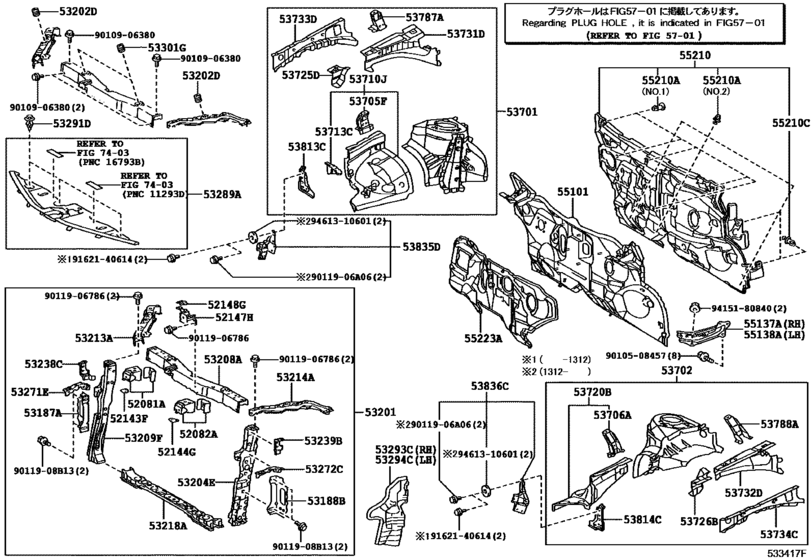

Front Fender Apron & Dash Panel ([04.2011 - ] (1104- )) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- Japan
- Frame
- ZVW41
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS A
- From
- 04.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS A
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52081A
|
52081A
52081-47040 Stay Sub-Assy, Front Bumper, Rh[04.2011 - 11.2014] ZVW4#..CBU |
52081-47040 |
US $29.79 |
||
|
52082A
|
52082A
52082-47040 Stay Sub-Assy, Front Bumper, Lh[04.2011 - 11.2014] ZVW4#..CBU |
52082-47040 |
US $29.79 |
||
|
52143F
|
52143F
52143-47010 Bracket, Front Bumper Side, RhFRONT BUMPER SIDE, RH [04.2011 - 11.2014] ZVW4#..CBU |
52143-47010 |
US $4.48 |
||
|
52144G
|
52144G
52144-47010 Bracket, Front Bumper Side, LhFRONT BUMPER SIDE, LH [04.2011 - 11.2014] ZVW4#..CBU |
52144-47010 |
US $4.48 |
||
|
52147H
|
52147H
52147-47020 Bracket, Front Bumper Mounting[04.2011 - 11.2014] ZVW4#..CBU |
52147-47020 |
US $21.43 |
||
|
52148G
|
52148G
52148-47020 Bracket, Front Bumper Mounting, No.2[04.2011 - 11.2014] ZVW4#..CBU |
52148-47020 |
US $8 |
||
|
53187A
|
53187A
53187-12030 Stay, Radiator Support, Rh[04.2011 - 11.2014] ZVW4#..CBU |
53187-12030 |
US $26.30 |
||
|
53188B
|
53188B
53188-12030 Stay, Radiator Support, Lh[04.2011 - 11.2014] ZVW4#..CBU |
53188-12030 |
US $26.30 |
||
|
53201
|
53201
53201-47050 Support Sub-Assy, Radiator[04.2011 - 11.2014] ZVW4#..CBU |
53201-47050 |
US $637 |
||
|
53202D
|
53202D
90541-15037 Cushion, Radiator SupportRADIATOR SUPPORT [04.2011 - 11.2014] ZVW4#..CBU |
90541-15037 |
from US $3.20 |
||
|
53204E
|
53204E
53204-12060 Brace Sub-Assy, Radiator Support To Cross Member[04.2011 - 11.2014] ZVW4#..CBU |
53204-12060 |
US $112.48 |
||
|
53208A
|
53208A
53208-12560 Support Sub-Assy, Hood Lock[08.2013 - 11.2014] ZVW4#..CBU |
53208-12560 |
US $171.36 |
||
|
53208A
|
53208A
53208-72010 Support Sub-Assy, Hood Lock[04.2011 - 07.2013] ZVW4#..CBU |
53208-72010 |
US $201.60 |
||
|
53209F
|
53209F
53209-12140 Brace Sub-Assy, Radiator Support To Cross Member[04.2011 - 11.2014] ZVW4#..CBU |
53209-12140 |
US $112.48 |
||
|
53213A
|
53213A
53213-47040 Support, Radiator, Upper Rh[04.2011 - 11.2014] ZVW4#..CBU |
53213-47040 |
US $37.39 |
||
|
53214A
|
53214A
53214-47040 Support, Radiator, Upper Lh[04.2011 - 11.2014] ZVW4#..CBU |
53214-47040 |
US $37.39 |
||
|
53218A
|
53218A
53218-12901 Support, Radiator, Lower[04.2011 - 11.2014] ZVW4#..CBU |
53218-12901 |
US $94.72 |
||
|
53238C
|
53238C
53238-47020 Bracket, Hood Bumper Mounting, Rh[04.2011 - 11.2014] ZVW4#..CBU |
53238-47020 |
US $10.56 |
||
|
53239B
|
53239B
53239-47020 Bracket, Hood Bumper Mounting, Lh[04.2011 - 11.2014] ZVW4#..CBU |
53239-47020 |
US $7.02 |
||
|
53271E
|
53271E
53271-47030 Bracket, Headlamp Mounting, Rh[04.2011 - 11.2014] ZVW4#..CBU |
53271-47030 |
US $14.88 |
||
|
53272C
|
53272C
53272-47030 Bracket, Headlamp Mounting, Lh[04.2011 - 11.2014] ZVW4#..CBU |
53272-47030 |
US $9.77 |
||
|
53289A
|
53289A
53289-47040 Cover, Radiator Support Opening[04.2011 - 04.2014] ZVW4#..CBU |
53289-47040 |
US $46.01 |
||
| replacement | |||||
|
53289A
|
53289A
53289-47041 Cover, Radiator Support Opening[04.2011 - 04.2014] ZVW4#..CBU |
53289-47041 |
US $62.47 |
||
|
53289A
|
53289A
53289-47041 Cover, Radiator Support Opening[05.2014 - 11.2014] ZVW4#..CBU |
53289-47041 |
US $62.47 |
||
|
53291D
|
53291D
90467-07211 Clip(For Reserve Tank Outlet Hose No.2)[04.2011 - 09.2012] ZVW4#..CBU |
90467-07211 |
from US $0.88 |
||
|
53291D
|
53291D
90467-07217 Clip, Radiator Support To Frame Seal[10.2012 - 11.2014] ZVW4#..CBU |
90467-07217 |
from US $1.09 |
||
|
53293C
|
53293C
53293-47030 Deflector, Radiator Side, Rh[04.2011 - 11.2014] ZVW4#..CBU |
53293-47030 |
US $43.93 |
||
|
53293C
|
53293C
53293-47050 Deflector, Radiator Side, Rh[11.2014 -] ZVW4#..CBU |
53293-47050 |
US $39.67 |
||
|
53294C
|
53294C
53294-47020 Deflector, Radiator Side, Lh[04.2011 - 11.2014] ZVW4#..CBU |
53294-47020 |
US $43.93 |
||
|
53294C
|
53294C
53294-47040 Deflector, Radiator Side, Lh[11.2014 -] ZVW4#..CBU |
53294-47040 |
US $36.48 |
||
|
53301G
|
53301G
90541-15039 Cushion, Hood Bumper[04.2011 - 11.2014] ZVW4#..CBU |
90541-15039 |
US $3.20 |
||
|
53701
|
53701
53701-47060 Apron Sub-Assy, Front Fender, Rh[04.2011 - 11.2014] ZVW4#..CBU |
53701-47060 |
US $275.18 |
||
|
53702
|
53702
53702-47060 Apron Sub-Assy, Front Fender, Lh[04.2011 - 11.2014] ZVW4#..CBU |
53702-47060 |
US $275.18 |
||
|
53705F
|
53705F
53705-47010 Brace Sub-Assy, Fender Apron, Rh[04.2011 - 11.2014] ZVW4#..CBU |
53705-47010 |
US $11.56 |
||
|
53706A
|
53706A
53706-47010 Brace Sub-Assy, Fender Apron, Lh[04.2011 - 11.2014] ZVW4#..CBU |
53706-47010 |
US $11.56 |
||
|
53710J
|
53710J
53710-47040 Apron Assy, Front Fender, Rh[04.2011 - 11.2014] ZVW4#..CBU |
53710-47040 |
US $65.23 |
||
|
53713C
|
53713C
53713-12160 Extension Sub-Assy, Front Fender Apron, Front Rh[04.2011 - 11.2014] ZVW4#..CBU |
53713-12160 |
US $9.76 |
||
|
53720B
|
53720B
53720-47050 Apron Assy, Front Fender, Lh[04.2011 - 11.2014] ZVW4#..CBU |
53720-47050 |
US $54.60 |
||
|
53725D
|
53725D
53725-12040 Reinforcement, Front Spring Support, No.2 Rh[04.2011 - 11.2014] ZVW4#..CBU |
53725-12040 |
US $20.37 |
||
|
53726B
|
53726B
53726-12040 Reinforcement, Front Spring Support, No.2 Lh[04.2011 - 11.2014] ZVW4#..CBU |
53726-12040 |
US $14.52 |
||
|
53731D
|
53731D
53731-12170 Member, Front Apron To Cowl Side, Upper Rh[04.2011 - 11.2014] ZVW4#..CBU |
53731-12170 |
US $42.81 |
||
|
53732D
|
53732D
53732-12150 Member, Front Apron To Cowl Side, Upper Lh[04.2011 - 11.2014] ZVW4#..CBU |
53732-12150 |
US $51.02 |
||
|
53733D
|
53733D
53733-12070 Member, Front Apron To Cowl Side, Lower Front Rh[04.2011 - 11.2014] ZVW4#..CBU |
53733-12070 |
US $25.86 |
||
|
53734C
|
53734C
53734-12070 Member, Front Apron To Cowl Side, Lower Front Lh[04.2011 - 11.2014] ZVW4#..CBU |
53734-12070 |
US $25.86 |
||
|
53787A
|
53787A
53707-47020 Gusset, Front Fender Apron, Lower Rh[04.2011 - 11.2014] ZVW4#..CBU |
53707-47020 |
US $11.56 |
||
|
53788A
|
53788A
53708-47060 Gusset, Front Fender Apron, Lower Lh[04.2011 - 11.2014] ZVW4#..CBU |
53708-47060 |
US $11.56 |
||
|
53813C
|
53813C
53813-47020 Extension, Front Fender, RhFRONT FENDER, RH [04.2011 - 11.2014] ZVW4#..CBU |
53813-47020 |
US $16 |
||
|
53814C
|
53814C
53814-47020 Extension, Front Fender, LhFRONT FENDER, LH [04.2011 - 11.2014] ZVW4#..CBU |
53814-47020 |
US $17.18 |
||
|
53835D
|
53835D
53803-47030 Bracket, Front Side Panel, Rh[12.2013 - 11.2014] ZVW4#..CBU |
53803-47030 |
US $21.43 |
||
|
53835D
|
53835D
53835-47020 Bracket, Front Side Panel, Rh[04.2011 - 12.2013] ZVW4#..CBU |
53835-47020 |
US $15.72 |
||
| replacement | |||||
|
53835D
|
53835D
53803-47030 Bracket, Front Side Panel, Rh[04.2011 - 12.2013] ZVW4#..CBU |
53803-47030 |
US $21.43 |
||
|
53836C
|
53836C
53804-47030 Bracket, Front Side Panel, Lh[12.2013 - 11.2014] ZVW4#..CBU |
53804-47030 |
US $23.41 |
||
|
53836C
|
53836C
53836-47020 Bracket, Front Side Panel, Lh[04.2011 - 12.2013] ZVW4#..CBU |
53836-47020 |
US $15.72 |
||
| replacement | |||||
|
53836C
|
53836C
53804-47030 Bracket, Front Side Panel, Lh[04.2011 - 12.2013] ZVW4#..CBU |
53804-47030 |
US $23.41 |
||
|
55101
|
55101
55101-72010 Panel Sub-Assy, Dash[04.2011 - 02.2012] ZVW4#..CBU |
55101-72010 |
US $323.23 |
||
| replacement | |||||
|
55101
|
55101
55101-72011 Panel Sub-Assy, Dash[04.2011 - 02.2012] ZVW4#..CBU |
55101-72011 |
US $244.61 |
||
|
55101
|
55101
55101-72011 Panel Sub-Assy, Dash[03.2012 - 11.2014] ZVW4#..CBU |
55101-72011 |
US $244.61 |
||
|
55137A
|
55137A
55137-47030 Brace, Dash To Frame, RhDASH TO FRAME, RH [04.2011 - 11.2014] ZVW4#..CBU |
55137-47030 |
US $17.47 |
||
|
55138A
|
55138A
55138-47050 Brace, Dash To Frame, LhDASH TO FRAME, LH [04.2011 - 11.2013] ZVW4#..CBU |
55138-47050 |
US $18.93 |
||
| replacement | |||||
|
55138A
|
55138A
55138-47060 Brace, Dash To Frame, Lh[04.2011 - 11.2013] ZVW4#..CBU |
55138-47060 |
US $30.87 |
||
|
55138A
|
55138A
55138-47060 Brace, Dash To Frame, Lh[12.2013 - 11.2014] ZVW4#..CBU |
55138-47060 |
US $30.87 |
||
|
55138A
|
55138A
55138-47080
Brace, Dash To Frame, Lh
[02.2016 -] ZVW4#..CBU |
55138-47080 |
— | ||
|
55210
|
55210
55210-47130 Insulator Assy, Dash Panel[04.2011 - 06.2011] ZVW4#..CBU |
55210-47130 |
US $93.18 |
||
| replacement | |||||
|
55210
|
55210
55210-47131 Insulator Assy, Dash Panel[04.2011 - 06.2011] ZVW4#..CBU |
55210-47131 |
US $69.74 |
||
|
55210
|
55210
55210-47131 Insulator Assy, Dash Panel[06.2011 - 11.2014] ZVW4#..CBU |
55210-47131 |
US $69.74 |
||
|
55210A
|
55210A
90467-11122 Clip[04.2011 - 11.2014] ZVW4#..CBU ＮＯ．１：イラスト参照 |
90467-11122 |
US $1.60 |
||
|
55210A
|
55210A
90467-11127 Clip[04.2011 - 11.2014] ZVW4#..CBU ＮＯ．２：イラスト参照 |
90467-11127 |
US $1.51 |
||
|
55210C
|
55210C
90467-13079 Clip[04.2011 - 11.2014] ZVW4#..CBU |
90467-13079 |
US $1.92 |
||
|
55223A
|
55223A
55223-47060 Insulator, Dash Panel, OuterDASH PANEL, OUTER [04.2011 - 11.2014] ZVW4#..CBU |
55223-47060 |
US $75.71 |
||
|
9011906A06
|
9011906A06
90119-06A06 BOLT WWASHER |
90119-06A06 |
US $0.96 |
||
|
9011908B13
|
9011908B13
90119-08B13 BOLT WWASHER |
90119-08B13 |
US $1.44 |
||
|
9010508457
|
9010508457
90105-08457 New Genuine Part |
90105-08457 |
US $1.28 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.96 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.44 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $1.28 |
||
|
9415180840
|
9415180840
94151-80840 NUT, FLANGE |
94151-80840 |
from US $0.96 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
