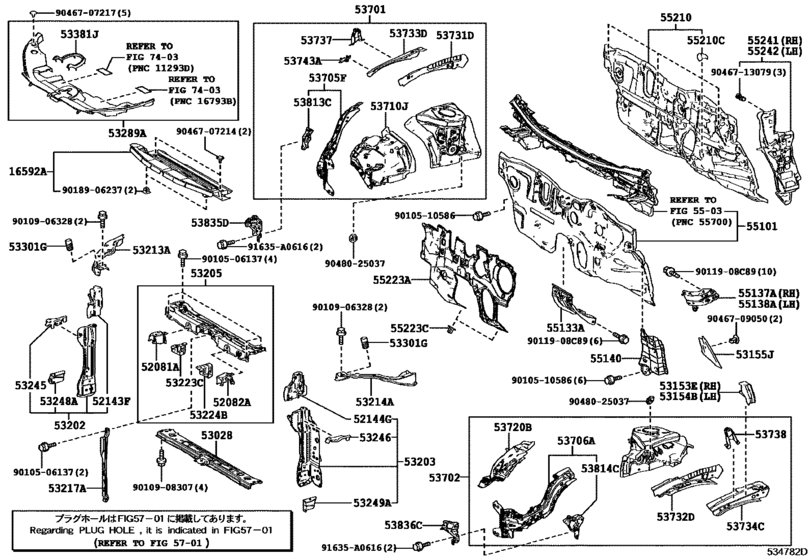

Front Fender Apron & Dash Panel ([11.2015 - ] (1511- )) Diagram Toyota PRIUS
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW50
- grade
- BASE
- ENGINE
- 2ZRFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 11.2015
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16592A
|
16592A
16592-37010 Guide, Radiator Air, No.3[11.2015 -] 2ZRFXE..ZVW5# |
16592-37010 |
US $47.72 |
||
|
52081A
|
52081A
52137-47010 Stay Sub-Assy, Front Bumper, Rh[11.2015 -] ZVW5# |
52137-47010 |
US $14.41 |
||
|
52082A
|
52082A
52138-47010 Stay Sub-Assy, Front Bumper, Lh[11.2015 -] ZVW5# |
52138-47010 |
US $14.41 |
||
|
52143F
|
52143F
52143-47030 Bracket, Front Bumper Side, Rh[11.2015 -] ZVW5# |
52143-47030 |
US $15.94 |
||
|
52144G
|
52144G
52144-47050 Bracket, Front Bumper Side, Lh[11.2015 -] ZVW5# |
52144-47050 |
US $15.94 |
||
|
53028
|
53028
53028-47010 Support Sub-Assy, Radiator, Lower[11.2015 -] ZVW5# |
53028-47010 |
from US $149.39 |
||
|
53153E
|
53153E
53153-47010 Guide, Front Side Air[11.2015 -] ZVW5# |
53153-47010 |
US $20.52 |
||
|
53154B
|
53154B
53154-47010 Guide, Front Side Air, No.2[11.2015 -] ZVW5# |
53154-47010 |
US $20.52 |
||
|
53155J
|
53155J
53155-47010 Seal, Radiator Grille, No.1[11.2015 -] ZVW5# |
53155-47010 |
US $14.40 |
||
|
53202
|
53202
53202-47901 Support Sub-Assy, Radiator, Rh[11.2015 -] ZVW5# |
53202-47901 |
from US $91.81 |
||
|
53203
|
53203
53203-47901 Support Sub-Assy, Radiator, Lh[11.2015 -] ZVW5# |
53203-47901 |
from US $90.46 |
||
|
53205
|
53205
53205-47900 Support Sub-Assy, Radiator, Upper[11.2015 -] ZVW5# |
53205-47900 |
from US $141.82 |
||
|
53213A
|
53213A
53213-47050 Support, Radiator, Upper Rh[11.2015 -] ZVW5# |
53213-47050 |
from US $29.70 |
||
|
53214A
|
53214A
53214-47050 Support, Radiator, Upper Lh[11.2015 -] ZVW5# |
53214-47050 |
from US $28.41 |
||
|
53217A
|
53217A
53217-47030 Brace, Hood Lock Support[11.2015 -] ZVW5# |
53217-47030 |
from US $32.19 |
||
|
53223C
|
53223C
53223-47020 Bracket, Radiator Grille Mounting, Rh[11.2015 -] ZVW5# |
53223-47020 |
US $11.07 |
||
|
53224B
|
53224B
53224-47010 Bracket, Radiator Grille Mounting, Lh[11.2015 -] ZVW5# |
53224-47010 |
US $11.07 |
||
|
53245
|
53245
53245-47010 Bracket, Headlamp, Rh[11.2015 -] ZVW5# |
53245-47010 |
US $10.48 |
||
|
53246
|
53246
53246-47010 Bracket, Headlamp, Lh[11.2015 -] ZVW5# |
53246-47010 |
US $10.48 |
||
|
53248A
|
53248A
53248-47010 Bracket, Radiator Shutter, Rh[11.2015 -] ZVW5# |
53248-47010 |
from US $6.99 |
||
|
53249A
|
53249A
53249-47010 Bracket, Radiator Shutter, Lh[11.2015 -] ZVW5# |
53249-47010 |
from US $8.01 |
||
|
53289A
|
53289A
53289-47050 Cover, Radiator Support Opening[11.2015 - 05.2016] ZVW5# |
53289-47050 |
US $78.62 |
||
| replacement | |||||
|
53289A
|
53289A
53289-47071 Cover, Radiator Support Opening[11.2015 - 05.2016] ZVW5# |
53289-47071 |
US $71.20 |
||
|
53289A
|
53289A
53289-47070 Cover, Radiator Support Opening[05.2016 - 12.2016] ZVW5# |
53289-47070 |
US $78.62 |
||
| replacement | |||||
|
53289A
|
53289A
53289-47071 Cover, Radiator Support Opening[05.2016 - 12.2016] ZVW5# |
53289-47071 |
US $71.20 |
||
|
53289A
|
53289A
53289-47071 Cover, Radiator Support Opening[01.2017 -] ZVW5# |
53289-47071 |
US $71.20 |
||
|
53301G
|
53301G
90541-15037 Cushion, Radiator SupportRADIATOR SUPPORT [11.2015 -] ZVW5# |
90541-15037 |
from US $3.20 |
||
|
53381J
|
53381J
53381-47050 Seal, Hood To Radiator Support[11.2015 -] ZVW5# |
53381-47050 |
US $6.26 |
||
|
53701
|
53701
53701-47110 Apron Sub-Assy, Front Fender, Rh[11.2015 - 06.2016] ZVW5# |
53701-47110 |
US $396.03 |
||
| replacement | |||||
|
53701
|
53701
53701-47111 Apron Sub-Assy, Front Fender, Rh[11.2015 - 06.2016] ZVW5# |
53701-47111 |
US $359.63 |
||
|
53701
|
53701
53701-47111 Apron Sub-Assy, Front Fender, Rh[07.2016 -] ZVW5# |
53701-47111 |
US $359.63 |
||
|
53702
|
53702
53702-47100 Apron Sub-Assy, Front Fender, Lh[11.2015 - 06.2016] ZVW5# |
53702-47100 |
US $396.03 |
||
| replacement | |||||
|
53702
|
53702
53702-47101 Apron Sub-Assy, Front Fender, Lh[11.2015 - 06.2016] ZVW5# |
53702-47101 |
US $359.63 |
||
|
53702
|
53702
53702-47101 Apron Sub-Assy, Front Fender, Lh[07.2016 -] ZVW5# |
53702-47101 |
US $359.63 |
||
|
53705F
|
53705F
53705-47900 Brace Sub-Assy, Fender Apron, Rh[11.2015 - 07.2016] ZVW5# |
53705-47900 |
US $99.01 |
||
| replacement | |||||
|
53705F
|
53705F
53705-47901 Brace Sub-Assy, Fender Apron, Rh[11.2015 - 07.2016] ZVW5# |
53705-47901 |
US $97.68 |
||
|
53705F
|
53705F
53705-47901 Brace Sub-Assy, Fender Apron, Rh[07.2016 -] ZVW5# |
53705-47901 |
US $97.68 |
||
|
53706A
|
53706A
53706-47900 Brace Sub-Assy, Fender Apron, Lh[11.2015 - 07.2016] ZVW5# |
53706-47900 |
US $99.01 |
||
| replacement | |||||
|
53706A
|
53706A
53706-47901 Brace Sub-Assy, Fender Apron, Lh[11.2015 - 07.2016] ZVW5# |
53706-47901 |
US $97.68 |
||
|
53706A
|
53706A
53706-47901 Brace Sub-Assy, Fender Apron, Lh[07.2016 -] ZVW5# |
53706-47901 |
US $97.68 |
||
|
53710J
|
53710J
53710-47060 Apron Assy, Front Fender, Rh[11.2015 -] ZVW5# |
53710-47060 |
US $72.20 |
||
|
53720B
|
53720B
53720-47070 Apron Assy, Front Fender, Lh[11.2015 -] ZVW5# |
53720-47070 |
US $72.20 |
||
|
53731D
|
53731D
53731-47030 Member, Front Apron To Cowl Side, Upper Rh[11.2015 - 06.2016] ZVW5# |
53731-47030 |
US $36.55 |
||
| replacement | |||||
|
53731D
|
53731D
53731-47031 Member, Front Apron To Cowl Side, Upper Rh[11.2015 - 06.2016] ZVW5# |
53731-47031 |
US $37.54 |
||
|
53731D
|
53731D
53731-47031 Member, Front Apron To Cowl Side, Upper Rh[07.2016 -] ZVW5# |
53731-47031 |
US $37.54 |
||
|
53732D
|
53732D
53732-47020 Member, Front Apron To Cowl Side, Upper Lh[11.2015 -] ZVW5# |
53732-47020 |
US $37.54 |
||
|
53733D
|
53733D
53733-47020 Member, Front Apron To Cowl Side, Lower Front Rh[11.2015 -] ZVW5# |
53733-47020 |
from US $21.58 |
||
|
53734C
|
53734C
53734-47020 Member, Front Apron To Cowl Side, Lower Front Lh[11.2015 -] ZVW5# |
53734-47020 |
US $21.74 |
||
|
53737
|
53737
53737-47040 Plate, Front Apron To Cowl Side Member, Rh[11.2015 -] ZVW5# |
53737-47040 |
US $8.80 |
||
|
53738
|
53738
53738-47040 Plate, Front Apron To Cowl Side Member, Lh[11.2015 -] ZVW5# |
53738-47040 |
US $8.80 |
||
|
53743A
|
53743A
53743-47020 Reinforcement, Front Fender Apron, Front Rh[11.2015 -] ZVW5# |
53743-47020 |
US $13.12 |
||
|
53813C
|
53813C
53813-47050 Extension, Front Fender, Rh[11.2015 -] ZVW5# |
53813-47050 |
US $17.18 |
||
|
53814C
|
53814C
53814-47030 Extension, Front Fender, Lh[11.2015 -] ZVW5# |
53814-47030 |
US $17.18 |
||
|
53835D
|
53835D
53835-47050 Bracket, Front Side Panel, Rh[11.2015 -] ZVW5# |
53835-47050 |
from US $22.19 |
||
|
53836C
|
53836C
53836-47050 Bracket, Front Side Panel, Lh[11.2015 -] ZVW5# |
53836-47050 |
from US $22.19 |
||
|
55101
|
55101
55101-47900
Panel Sub-Assy, Dash
[11.2015 -] ZVW5# |
55101-47900 |
— | ||
|
55133A
|
55133A
55133-47010 Reinforcement, Dash To Floor, Rh[11.2015 -] ZVW5#..BASE,L,S |
55133-47010 |
US $29.41 |
||
|
55137A
|
55137A
55137-47040 Brace, Dash To Frame, Rh[11.2015 -] ZVW5# |
55137-47040 |
US $17.76 |
||
|
55138A
|
55138A
55138-47070 Brace, Dash To Frame, Lh[11.2015 -] ZVW5# |
55138-47070 |
US $17.76 |
||
|
55140
|
55140
55140-47010
Plate Assy,fender Apron Set, Lh
[11.2015 -] ZVW5# |
55140-47010 |
— | ||
|
55210
|
55210
55210-47200
Insulator Assy, Dash Panel
[11.2015 -] ZVW5#..BASE,ECO,S; ZVW51..L TIRE & DISC WHEEL-215/45R17, 7J, ALUMINUM |
55210-47200 |
— | ||
|
55210C
|
55210C
90467-11122 Clip[11.2015 -] ZVW5# |
90467-11122 |
US $1.60 |
||
|
55223A
|
55223A
55223-47090 Insulator, Dash Panel, Outer[11.2015 -] ZVW5# |
55223-47090 |
US $66.51 |
||
|
55223C
|
55223C
90467-06197 Clip[11.2015 -] ZVW5# |
90467-06197 |
from US $1.54 |
||
|
55241
|
55241
55241-47010 Silencer, Front Panel Side, No.1 Rh[11.2015 -] ZVW5# |
55241-47010 |
US $13.40 |
||
|
55242
|
55242
55242-47010 Silencer, Front Panel Side, No.1 Lh[11.2015 -] ZVW5# |
55242-47010 |
US $13.40 |
||
|
91635A0616
|
91635A0616
91635-A0616 BOLT WWASHER |
91635-A0616 |
from US $0.82 |
||
|
9011908C89
|
9011908C89
90119-08C89 BOLT WWASHER |
90119-08C89 |
from US $0.80 |
||
|
9010506137
|
9010506137
90105-06137 BOLT, WASHER BASED H |
90105-06137 |
from US $0.98 |
||
|
9010510586
|
9010510586
90105-10586 New Genuine Part |
90105-10586 |
US $1.60 |
||
|
9010906328
|
9010906328
90109-06328 BOLT |
90109-06328 |
from US $0.96 |
||
| replacement | |||||
|
9010906328
|
9010906328
90080-10342 New Genuine Part |
90080-10342 |
US $3.92 |
||
|
9010908307
|
9010908307
90109-08307 New Genuine Part |
90109-08307 |
US $1.28 |
||
|
9018906237
|
9018906237
90189-06237 Grommet(For Engine Under Cover) |
90189-06237 |
from US $0.78 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.88 |
||
|
9046707217
|
9046707217
90467-07217 Clip, Radiator Support To Frame Seal |
90467-07217 |
from US $1.03 |
||
|
9046709050
|
9046709050
90467-09050 Clip(For Hood Insulator) |
90467-09050 |
from US $0.94 |
||
|
9046713079
|
9046713079
90467-13079 Clip |
90467-13079 |
US $1.92 |
||
|
9048025037
|
9048025037
90480-25037 GROMMET |
90480-25037 |
from US $1.60 |
||
