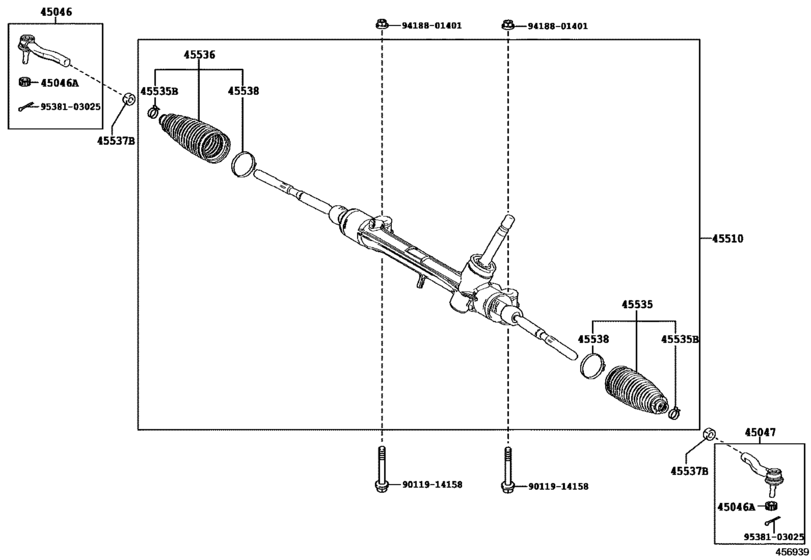

Front Steering Gear & Link ([11.2015 - ] (1511- )) Diagram Toyota PRIUS
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW50
- grade
- BASE
- ENGINE
- 2ZRFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 11.2015
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-49255 End Sub-Assy, Tie Rod, Rh[11.2015 -] ZVW5# |
45046-49255 |
from US $40.89 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[11.2015 -] ZVW5# |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-49195 End Sub-Assy, Tie Rod, Lh[11.2015 -] ZVW5# |
45047-49195 |
from US $40.89 |
||
|
45510
|
45510
45510-47160 Gear Assy, Steering[11.2015 -] ZVW5#..BASE,ECO,L |
45510-47160 |
US $609.18 |
||
|
45535
|
45535
45535-59075 Boot, Steering Rack, No.1[11.2015 -] ZVW5# |
45535-59075 |
from US $12.64 |
||
|
45535B
|
45535B
90467-19019 Clip[11.2015 -] ZVW5# |
90467-19019 |
from US $4.41 |
||
|
45536
|
45536
45535-59075 Boot, Steering Rack, No.1[11.2015 -] ZVW5# |
45535-59075 |
from US $12.64 |
||
|
45537B
|
45537B
90178-16001 Nut[11.2015 -] ZVW5# |
90178-16001 |
from US $1.85 |
||
|
45538
|
45538
45538-48020 Clamp(For Steering Rack Boot)STEERING RACK BOOT [11.2015 -] ZVW5# |
45538-48020 |
US $3.84 |
||
|
9011914158
|
9011914158
90119-14158 New Genuine Part |
90119-14158 |
US $6.88 |
||
|
9418801401
|
9418801401
94188-01401 Nut(For Front Support To Front Shock Absorber) |
94188-01401 |
from US $1.70 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
