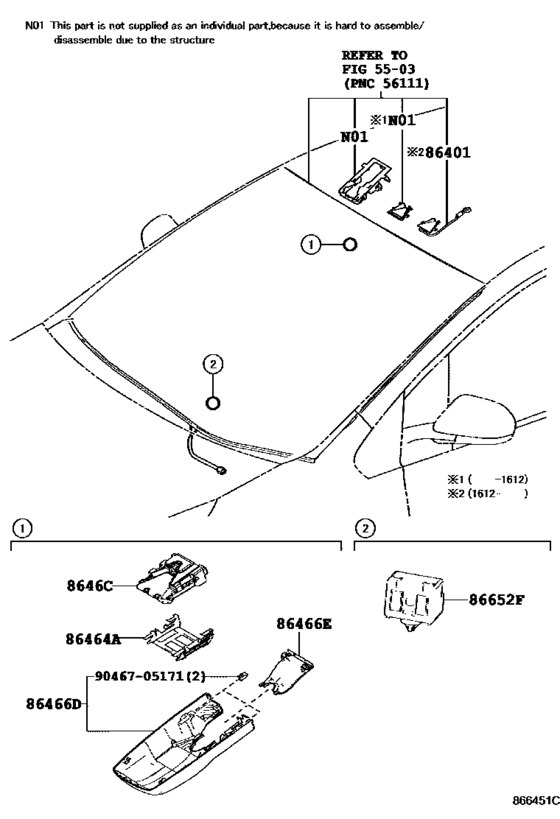

Pre-Collision System ([11.2015 - ] (1511- )) Diagram Toyota PRIUS
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW50
- grade
- BASE
- ENGINE
- 2ZRFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 11.2015
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8646C
|
8646C
8646C-47010 Camera, Forward Recognition[11.2015 - 08.2016] ZVW51..S; ZVW5#..BASE,ECO,L PRE-COLLISION SYSTEM-WITH |
8646C-47010 |
US $608.61 |
||
|
8646C
|
8646C
8646C-47030 Camera, Forward Recognition[08.2016 - 12.2016] ZVW51..S; ZVW5#..BASE,ECO,L PRE-COLLISION SYSTEM-WITH |
8646C-47030 |
US $608.61 |
||
|
8646C
|
8646C
8646C-47031 Camera, Forward Recognition[12.2016 -] ZVW51..S; ZVW5#..BASE,ECO,L PRE-COLLISION SYSTEM-WITH |
8646C-47031 |
US $515.72 |
||
|
86401
|
86401
86401-47010 Hood Sub-Assy, Forward Recognition W/heater[12.2016 -] ZVW51..S; ZVW5#..BASE,ECO,L PRE-COLLISION SYSTEM-WITH |
86401-47010 |
US $83.52 |
||
|
86464A
|
86464A
86464-48011 Latch, Forward Recognition[11.2015 -] ZVW51..S; ZVW5#..BASE,ECO,L PRE-COLLISION SYSTEM-WITH |
86464-48011 |
from US $7.98 |
||
|
86466D
|
86466D
86466-47020 Cover, Forward Recognition, No.1[11.2015 - 12.2016] ZVW51..S; ZVW5#..BASE,ECO,L PRE-COLLISION SYSTEM-WITH |
86466-47020 |
US $56.24 |
||
|
86466D
|
86466D
86466-47021 Cover, Forward Recognition, No.1[12.2016 -] ZVW51..S; ZVW5#..BASE,ECO,L PRE-COLLISION SYSTEM-WITH |
86466-47021 |
US $38.91 |
||
|
86466E
|
86466E
86466-47030 Cover, Forward Recognition, No.2[11.2015 -] ZVW51..S; ZVW5#..BASE,ECO,L PRE-COLLISION SYSTEM-WITH |
86466-47030 |
US $9.28 |
||
|
86652F
|
86652F
86652-50010 Buzzer Assy[11.2015 -] ZVW51..S; ZVW5#..BASE,ECO,L PRE-COLLISION SYSTEM-WITH |
86652-50010 |
from US $31.45 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
from US $0.74 |
