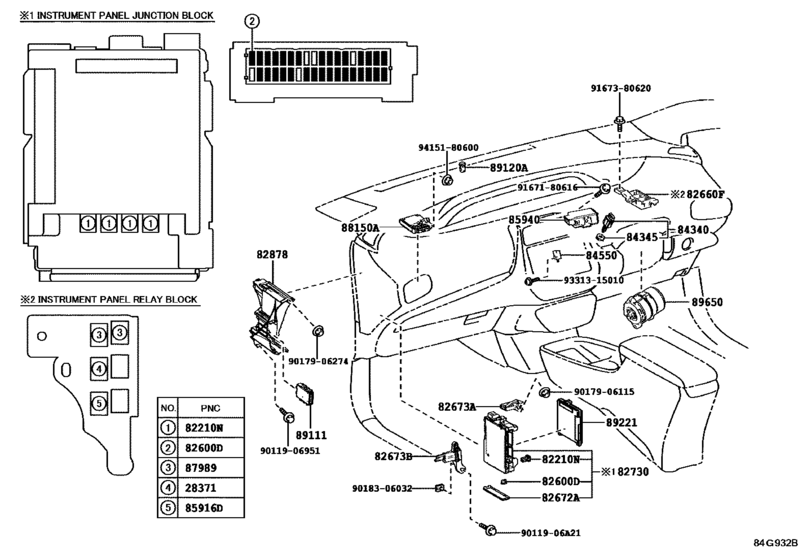

Switch & Relay & Computer ([11.2015 - ] COWL (1511- )ARL) Diagram Toyota PRIUS
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ZVW50
- ENGINE
- 2ZRFXE
- DESTINATION
- ARL
- Model
- PRIUS
- From
- 11.2015
- Vehicle Model
- PRIUS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02027 Relay[11.2015 -] 2ZRFXE..ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
90987-02027 |
from US $44.54 |
||
|
82210N
|
82210N
90982-08306 Fusible Link[11.2015 -] ZVW50 30A,TERMINAL:FEMALE |
90982-08306 |
from US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[11.2015 -] ZVW50 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[11.2015 -] ZVW50 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[11.2015 -] ZVW50 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[11.2015 -] ZVW50 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[11.2015 -] ZVW50 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82660F
|
82660F
82660-47060 Block Assy, Relay[11.2015 -] ZVW50..ARL |
82660-47060 |
US $17.33 |
||
|
82672A
|
82672A
82672-47150 Cover, Junction Block[11.2015 -] ZVW50 |
82672-47150 |
US $3.49 |
||
|
82673A
|
82673A
82673-47190 Bracket, Junction Block[11.2015 -] ZVW50..ARL |
82673-47190 |
US $7.43 |
||
|
82673B
|
82673B
82673-47210 Bracket, Junction Block[11.2015 -] ZVW50..ARL |
82673-47210 |
US $10.05 |
||
|
82730
|
82730
82730-47530 Block Assy, Instrument Panel Junction[11.2015 -] ZVW50 |
82730-47530 |
US $176.18 |
||
|
82878
|
82878
82878-47020 Box, Computer Integration, Lh[11.2015 -] ZVW50..ARL |
82878-47020 |
US $33.92 |
||
|
84340
|
84340
84340-49075 Switch Assy, Stop Lamp[11.2015 -] ZVW50 |
84340-49075 |
from US $22.21 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[11.2015 -] ZVW50 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[11.2015 -] ZVW50 |
84550-30080 |
from US $18.39 |
||
|
85916D
|
85916D
90987-02027 Relay[11.2015 -] ZVW50 |
90987-02027 |
from US $44.54 |
||
|
85940
|
85940
85940-47060 Relay Assy, Windshield Wiper[11.2015 -] ZVW50..ARL |
85940-47060 |
US $139.78 |
||
|
87989
|
87989
85927-22010 Relay, Mirror ControlCOOLING FAN, NO.2 [11.2015 -] ZVW50 |
85927-22010 |
US $15.43 |
||
|
88150A
|
88150A
88150-47110
Computer Assy, Driving Support
[11.2015 - 08.2016] ZVW50..ARL HEAD-UP DISPLAY-WITH |
88150-47110 |
— | ||
|
88150A
|
88150A
88150-47140 Computer Assy, Driving Support[08.2016 - 11.2017] ZVW50..ARL HEAD-UP DISPLAY-WITH |
88150-47140 |
US $937.66 |
||
|
89111
|
89111
89111-47062 Computer, Network Gateway[11.2015 -] ZVW50 |
89111-47062 |
US $174.72 |
||
|
89120A
|
89120A
89121-30020 Sensor, Automatic Light Control[11.2015 -] ZVW50 |
89121-30020 |
from US $56.10 |
||
|
89221
|
89221
89220-4EE20
Computer, Multiplex Network Body
[11.2015 -] ZVW50..ARL |
89220-4EE20 |
— | ||
|
89650
|
89650
89650-47570 Computer Assy, Power Steering[11.2015 -] ZVW50 |
89650-47570 |
US $579.49 |
||
|
9011906A21
|
9011906A21
90119-06A21 New Genuine Part |
90119-06A21 |
US $1.28 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018306032
|
9018306032
90183-06032 New Genuine Part |
90183-06032 |
US $1.12 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $0.96 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
