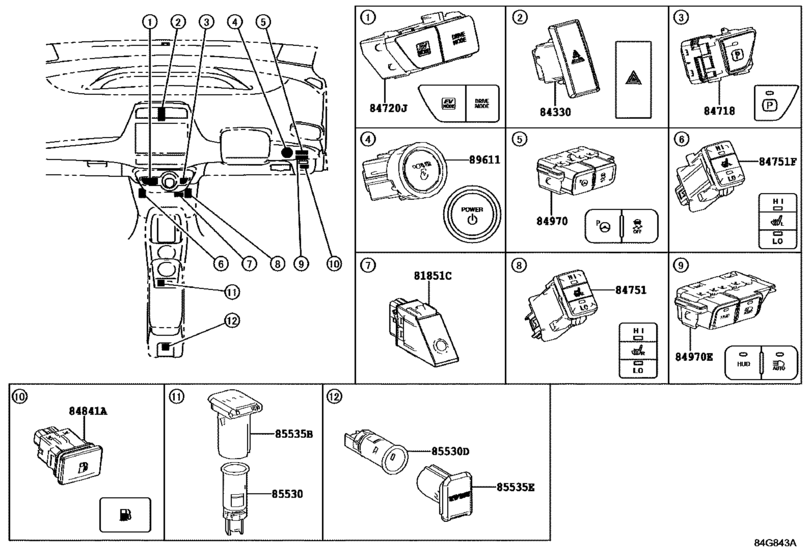

Switch & Relay & Computer ([11.2015 - ] INSTRUMENT PANEL (1511- )RHD) Diagram Toyota PRIUS
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- ZVW50
- ENGINE
- 2ZRFXE
- DESTINATION
- EUR
- Model
- PRIUS
- From
- 11.2015
- Vehicle Model
- PRIUS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81851C
|
81851C
81850-47030 Lamp Assy, Indicator[11.2015 -] ZVW50 SEAT HEATER-WITH(*DRP) |
81850-47030 |
US $15.14 |
||
|
84330
|
84330
84332-47050 Switch Assy, Hazard Warning Signal[11.2015 -] ZVW50 |
84332-47050 |
US $35.96 |
||
|
84718
|
84718
84718-47090 Switch, Transmission Shift Main[11.2015 -] ZVW50..RHD |
84718-47090 |
US $60.80 |
||
|
84720J
|
84720J
84010-47300
Switch Assy, Pattern Select
[11.2015 -] ZVW50..RHD |
84010-47300 |
— | ||
|
84751
|
84751
84751-47070 Switch, Seat Heater[11.2015 -] ZVW50 SEAT HEATER-WITH(*DRP) |
84751-47070 |
US $55.18 |
||
|
84751F
|
84751F
84751-47060 Switch, Seat Heater[11.2015 -] ZVW50 SEAT HEATER-WITH(*DRP) |
84751-47060 |
US $55.18 |
||
|
84841A
|
84841A
84841-47020 Switch, Fuel Lid Opener[11.2015 -] ZVW50 |
84841-47020 |
US $31.16 |
||
|
84970
|
84970
84010-47270 Switch Assy, Combination[11.2015 -] ZVW50..RHD CLEARANCE & BACK SONAR-WITH |
84010-47270 |
US $63.63 |
||
|
84970
|
84970
84010-47280 Switch Assy, Combination[11.2015 -] ZVW50..RHD |
84010-47280 |
US $47.76 |
||
|
84970E
|
84970E
84010-47210 Switch Assy, Combination No.2[11.2015 -] ZVW50..RHD EXPORT UPPER PACKAGE; ZVW50..RHD EUROPE SUPERLATIVE PACKAGE |
84010-47210 |
US $77.17 |
||
|
84970E
|
84970E
84010-47230
Switch Assy, Combination No.2
[11.2015 -] ZVW50..RHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITHOUT; ZVW50..RHD EUROPE SUPERLATIVE PACKAGE&PRE-COLLISION SYSTEM-WITHOUT |
84010-47230 |
— | ||
|
84970E
|
84970E
84010-47250 Switch Assy, Combination No.2[11.2015 -] ZVW50; ZVW50 PRE-COLLISION SYSTEM-WITHOUT |
84010-47250 |
US $79.92 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[11.2015 -] ZVW50 |
85530-42010 |
from US $26.60 |
||
|
85530D
|
85530D
85530-42010 Socket Assy, Power Outlet, No.1[11.2015 -] ZVW50 |
85530-42010 |
from US $26.60 |
||
|
85535B
|
85535B
85535-47030 Cover, Power Outlet Socket, No.1[11.2015 -] ZVW50 |
85535-47030 |
US $8.32 |
||
|
85535E
|
85535E
85535-47030 Cover, Power Outlet Socket, No.1[11.2015 -] ZVW50 |
85535-47030 |
US $8.32 |
||
|
89611
|
89611
89611-30141 Switch, Push Start[11.2015 - 05.2016] ZVW50 |
89611-30141 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-30142 Switch, Push Start[11.2015 - 05.2016] ZVW50 |
89611-30142 |
US $122.30 |
||
|
89611
|
89611
89611-30142 Switch, Push Start[06.2016 -] ZVW50 |
89611-30142 |
US $122.30 |
||
