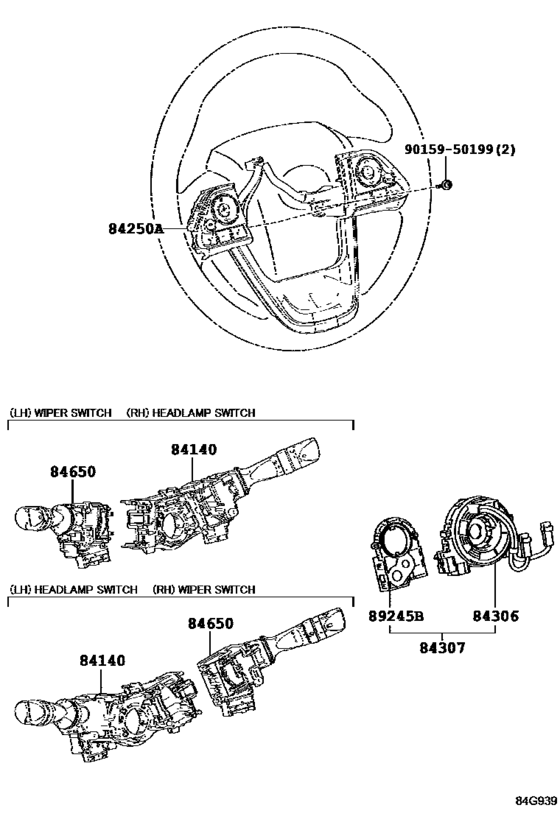

Switch & Relay & Computer ([11.2015 - ] STEERING (1511- )) Diagram Toyota PRIUS
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- ZVW50
- ENGINE
- 2ZRFXE
- DESTINATION
- EUR
- Model
- PRIUS
- From
- 11.2015
- Vehicle Model
- PRIUS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-33221 Switch Assy, Headlamp Dimmer[11.2015 -] ZVW50..RHD HONG KONG OR MACAO SPEC&LIGHT CONTROL SYSTEM-WITH(*ALC & FOLLOW ME HOME); ZVW50..RHD BRUNEI SPEC&LIGHT CONTROL SYSTEM-WITH(*ALC & FOLLOW ME HOME); ZVW50..RHD SINGAPORE SPEC&LIGHT CONTROL SYSTEM-WITH(*ALC & FOLLOW ME HOME); ZVW50..RH |
84140-33221 |
US $121.36 |
||
|
84140
|
84140
84140-33250 Switch Assy, Headlamp Dimmer[11.2015 -] ZVW50 LIGHT CONTROL SYSTEM-WITH(*ALC & FOLLOW ME HOME) |
84140-33250 |
US $117.94 |
||
|
84140
|
84140
84140-47190
Switch Assy, Headlamp Dimmer
[11.2015 -] ZVW50..RHD MALAYSIA SPEC |
84140-47190 |
— | ||
|
84140
|
84140
84140-47200
Switch Assy, Headlamp Dimmer
[11.2015 -] ZVW50 |
84140-47200 |
— | ||
|
84250A
|
84250A
84250-47520-C1
Switch Assy, Steering Pad
[11.2015 -] ZVW50 PRE-COLLISION SYSTEM-WITHOUT&CRUISE CONTROL-WITH&SPEED LIMITER CONTROL-WITHOUT&AUD IO-ASEAN SPEC & *DA & *BT & USB & JBL,BLACK,TRIM1#,2#; ZVW50..RHD PRE-COLLISION SYSTEM-WITHOUT&CRUISE CONTROL-WITH&SPEED LIMITER CONTROL-WITHOUT&AUD IO-IN |
84250-47520-C1 |
— | ||
|
84250A
|
84250A
84250-47530-C1 Switch Assy, Steering Pad[11.2015 -] ZVW50 SPEED LIMITER CONTROL-WITHOUT,BLACK,TRIM1#,2# |
84250-47530-C1 |
US $244.61 |
||
|
84250A
|
84250A
84250-47540-C1 Switch Assy, Steering Pad[11.2015 -] ZVW50 PRE-COLLISION SYSTEM-WITHOUT&CRUISE CONTROL-WITH&SPEED LIMITER CONTROL-WITHOUT,BLA CK,TRIM1#,2# |
84250-47540-C1 |
US $214.03 |
||
|
84250A
|
84250A
84250-47550-C1 Switch Assy, Steering Pad[11.2015 -] ZVW50 PRE-COLLISION SYSTEM-WITHOUT&CRUISE CONTROL-WITH&SPEED LIMITER CONTROL-WITHOUT&AUD IO-AUDIO LESS & 6SPEAKER,BLACK,TRIM1#,2# |
84250-47550-C1 |
US $195.10 |
||
|
84250A
|
84250A
84250-47560-C1
Switch Assy, Steering Pad
[11.2015 -] ZVW50 BLACK,TRIM1#,2# |
84250-47560-C1 |
— | ||
|
84250A
|
84250A
84250-47570-C1
Switch Assy, Steering Pad
[11.2015 -] ZVW50 PRE-COLLISION SYSTEM-WITHOUT&CRUISE CONTROL-WITH,BLACK,TRIM1#,2# |
84250-47570-C1 |
— | ||
|
84306
|
84306
84308-47020
Cable Sub-Assy, Spiral
[11.2015 -] ZVW50 |
84308-47020 |
— | ||
|
84307
|
84307
84307-47161
Cable Sub-Assy, Spiral W/sensor
[11.2015 -] ZVW50 |
84307-47161 |
— | ||
|
84650
|
84650
84652-12A90 Switch Assy, Windshield Wiper[11.2015 -] ZVW50..LHD TAIWAN SPEC&AUDIO-TAIWAN SPEC & AVN,*BT,USB,JBL; ZVW50..LHD BRASIL SPEC&AUDIO-BRAZIL SPEC & AVN,*BT,USB,JBL; ZVW50..LHD ARGENTINA SPEC&AUDIO-ARGENTINA SPEC & AVN,*BT,USB,JBL; ZVW50 AUDIO-*DA & *BT & USB & JBL; ZVW50..LHD AUDIO-GCC S |
84652-12A90 |
US $91.76 |
||
|
84650
|
84650
84652-1A860
Switch Assy, Windshield Wiper
[11.2015 -] ZVW50 |
84652-1A860 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-47190 SWITCH WINDSHIELD[11.2015 -] ZVW50 |
84652-47190 |
US $147.95 |
||
|
84650
|
84650
84652-47050 Switch Assy, Windshield Wiper[11.2015 -] ZVW50..RHD SINGAPORE SPEC&AUDIO-AUDIO LESS & 6SPEAKER; ZVW50..RHD SOUTH AFRICA SPEC |
84652-47050 |
US $88.44 |
||
|
84650
|
84650
84652-58020 Switch Assy, Windshield Wiper[11.2015 -] ZVW50..RHD HONG KONG OR MACAO SPEC&AUDIO-HONGKONG SPEC & *DA,*BT,USB,JBL; ZVW50..RHD BRUNEI SPEC&AUDIO-ASEAN SPEC & *DA & *BT & USB & JBL; ZVW50..RHD SINGAPORE SPEC&AUDIO-ASEAN SPEC & *DA & *BT & USB & JBL; ZVW50..RHD INDONESIA SPEC&AUDIO-ASEA |
84652-58020 |
US $134.68 |
||
|
89245B
|
89245B
8924B-47010 Sensor, Steering[11.2015 -] ZVW50 |
8924B-47010 |
US $210.24 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
