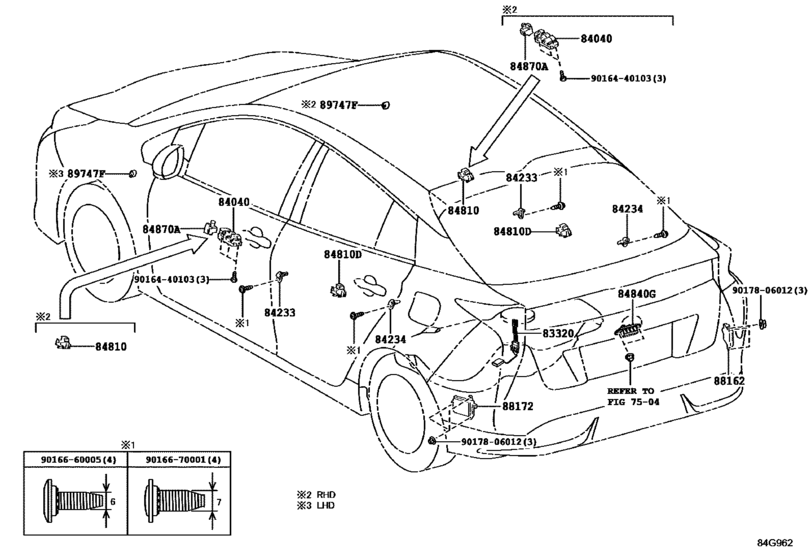

Switch & Relay & Computer ([11.2015 - ] DOOR,ROOF,FLOOR & BACK DOOR (1511- )) Diagram Toyota PRIUS
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- ZVW50
- ENGINE
- 2ZRFXE
- DESTINATION
- EUR
- Model
- PRIUS
- From
- 11.2015
- Vehicle Model
- PRIUS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-47120 Gage Assy, Fuel Sender[11.2015 -] ZVW50 |
83320-47120 |
US $60.72 |
||
|
84040
|
84040
84040-47080 Master Switch Assy,multiplex Network[11.2015 -] ZVW50..RHD |
84040-47080 |
US $303.80 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[11.2015 -] ZVW50 |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[11.2015 -] ZVW50 |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-47010 Switch Assy, Power Window Regulator[11.2015 -] ZVW50 |
84810-47010 |
US $44.19 |
||
|
84810D
|
84810D
84810-47010 Switch Assy, Power Window Regulator[11.2015 -] ZVW50 |
84810-47010 |
US $44.19 |
||
|
84840G
|
84840G
84840-47030 Switch Assy, Back Door Opener[11.2015 -] ZVW50 |
84840-47030 |
US $35.26 |
||
|
84840G
|
84840G
84840-47040 Switch Assy, Back Door Opener[11.2015 -] ZVW50..RHD PAKISTAN SPEC; ZVW50..RHD PAKISTAN SPEC&EXPORT UPPER PACKAGE; ZVW50..LHD JORDAN SPEC; ZVW50..LHD JORDAN SPEC&EXPORT UPPER PACKAGE; ZVW50 EXPORT UPPER PACKAGE; ZVW50 EUROPE SUPERLATIVE PACKAGE |
84840-47040 |
US $48.79 |
||
|
84870A
|
84870A
84872-47060 Switch Assy, Outer Mirror[11.2015 -] ZVW50..RHD |
84872-47060 |
from US $43.32 |
||
|
88162
|
88162
88162-0W270 Sensor, Blind Spot Monitor, Rh[11.2015 - 11.2017] ZVW50..RHD EXPORT UPPER PACKAGE; ZVW50..RHD EUROPE SUPERLATIVE PACKAGE; ZVW50..LHD BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); ZVW50..LHD BLIND SPOT MONITOR-WITH |
88162-0W270 |
US $1,203.60 |
||
|
88172
|
88172
88162-0W270 Sensor, Blind Spot Monitor, Rh[11.2015 - 11.2017] ZVW50..RHD EXPORT UPPER PACKAGE; ZVW50..RHD EUROPE SUPERLATIVE PACKAGE; ZVW50..LHD BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); ZVW50..LHD BLIND SPOT MONITOR-WITH |
88162-0W270 |
US $1,203.60 |
||
|
89747F
|
89747F
89747-52010 Buzzer, Wireless Door Lock[11.2015 - 11.2017] ZVW50..RHD EXPORT UPPER PACKAGE; ZVW50..RHD EUROPE SUPERLATIVE PACKAGE |
89747-52010 |
from US $29.60 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016660005
|
9016660005
90166-60005 New Genuine Part |
90166-60005 |
US $0.96 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.82 |
