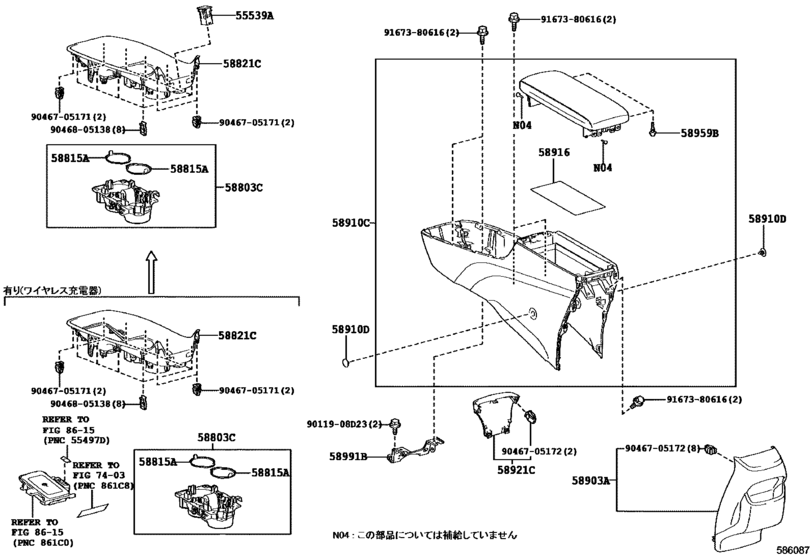

Console Box & Bracket ([12.2016 - ] ｱﾘ(ｿｰﾗﾙｰﾌ) (1612- )S..CBU) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZVW52
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-58070-C0 Cover, Spare Switch Hole[09.2016 -] ZVW52..S..CBU BLACK; ZVW52..S..CBU “ナビパッケージ”＆オーディオ−ＡＶＮ（１１インチ），Ｗｉ−Ｆｉ，＊ＢＴ，ＵＳＢ ＆ ６スピーカ,BLACK; ZVW52..S..CBU オーディオ−ＡＶＮ（１１インチ），Ｗｉ−Ｆｉ，＊ＢＴ，ＵＳＢ ＆ ６スピーカ,BLACK |
55539-58070-C0 |
US $6.56 |
||
|
58803C
|
58803C
58803-47011-C0 Box Sub-Assy, Console Cup Holder[09.2016 -] ZVW52..S..CBU BLACK METALLC,TRIM1#,2#; ZVW52..PREM BLACK METALLC,TRIM2#; ZVW52..A BLACK METALLC,TRIM10,2# |
58803-47011-C0 |
US $85.84 |
||
|
58815A
|
58815A
58815-47080 Carpet, Console Box[09.2016 -] ZVW52..CBU |
58815-47080 |
US $10.24 |
||
|
58821C
|
58821C
58821-47041-C0 Panel, Console, Upper[09.2016 -] ZVW52..S..CBU ワイヤレス充電器−有り,BLACK METALLC,TRIM1#,2#; ZVW52..PREM ワイヤレス充電器−有り,BLACK METALLC,TRIM2#; ZVW52..A ワイヤレス充電器−有り,BLACK METALLC,TRIM10,2# |
58821-47041-C0 |
US $120.85 |
||
|
58821C
|
58821C
58821-47051-C0 Panel, Console, Upper[09.2016 -] ZVW52..S..CBU BLACK METALLC,TRIM1#,2#; ZVW52..PREM BLACK METALLC,TRIM2#; ZVW52..A BLACK METALLC,TRIM10,2# |
58821-47051-C0 |
US $172.80 |
||
|
58903A
|
58903A
58903-47060-C0 Panel Sub-Assy, Console Rear End[09.2016 -] ZVW52..PREM BLACK,TRIM1#,2#; ZVW52..(A,S)..CBU アクセサリーコンセント−有り,BLACK,TRIM1#,2# |
58903-47060-C0 |
US $39.31 |
||
|
58903A
|
58903A
58903-47070-C0 Panel Sub-Assy, Console Rear End[09.2016 -] ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
58903-47070-C0 |
US $39.31 |
||
|
58903A
|
58903A
58903-47090-C1 Panel Sub-Assy, Console Rear End[12.2016 -] ZVW52..S..CBU ソーラルーフ−有り＆アクセサリーコンセント−有り,BLACK,TRIM1#,2# |
58903-47090-C1 |
US $119.39 |
||
|
58903A
|
58903A
58903-47100-C0 Panel Sub-Assy, Console Rear End[12.2016 -] ZVW52..S..CBU ソーラルーフ−有り,BLACK,TRIM1#,2# |
58903-47100-C0 |
US $119.39 |
||
|
58910C
|
58910C
58910-47140-C0 Box Assy, Console, Rear[09.2016 -] ZVW52..(A,S)..CBU BLACK,TRIM1#,2# |
58910-47140-C0 |
US $417.87 |
||
|
58910C
|
58910C
58910-47150-C0 Box Assy, Console, Rear[12.2016 -] ZVW52..S..CBU ソーラルーフ−有り,BLACK,TRIM1#,2# |
58910-47150-C0 |
US $380.02 |
||
|
58910D
|
58910D
90467-07212-C0 Clip(For Console Box)[12.2016 -] ZVW52..S..CBU ソーラルーフ−有り,BLACK,TRIM1#,2# |
90467-07212-C0 |
US $1.02 |
||
|
58916
|
58916
58916-47020 Mat, Box Bottom[09.2016 -] ZVW52..CBU |
58916-47020 |
US $3.20 |
||
|
58916
|
58916
58916-47040 Mat, Box Bottom[12.2016 -] ZVW52..S..CBU ソーラルーフ−有り |
58916-47040 |
US $3.20 |
||
|
58921C
|
58921C
58921-47021-C0 Plate, Box, Upper No.1[09.2016 -] ZVW52..S..CBU BLACK METALLC,TRIM1#,2#; ZVW52..PREM BLACK METALLC,TRIM2#; ZVW52..A BLACK METALLC,TRIM10,2# |
58921-47021-C0 |
US $65.51 |
||
|
58959B
|
58959B
90541-03078 Cushion(For Cup Holder)[09.2016 -] ZVW52..CBU |
90541-03078 |
from US $1.74 |
||
|
58991B
|
58991B
58991-47020 Bracket, Console Box Mounting, Front[09.2016 -] ZVW52..CBU |
58991-47020 |
US $15.84 |
||
|
9011908D23
|
9011908D23
90119-08D23 New Genuine Part |
90119-08D23 |
US $0.96 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
from US $0.74 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $0.96 |
||
|
9046805138
|
9046805138
90468-05138 Clip, Instrument Panel |
90468-05138 |
US $1.28 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
