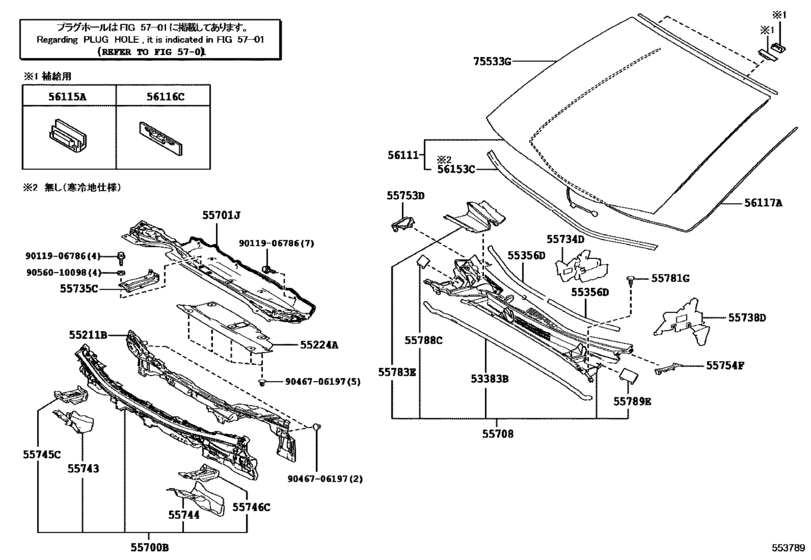

Cowl Panel & Windshield Glass ([09.2016 - ] (1609- )CBU) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZVW52
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-47150 Seal, Hood To Cowl Top[09.2016 -] ZVW52..CBU |
53383-47150 |
US $11.84 |
||
|
55211B
|
55211B
55211-47090 Silencer, Front Panel[09.2016 -] ZVW52..CBU |
55211-47090 |
US $31.01 |
||
|
55224A
|
55224A
55224-47040 Insulator, Dash Panel, Outer No.2[09.2016 -] ZVW52..CBU |
55224-47040 |
US $43.83 |
||
|
55356D
|
55356D
55356-47110 Cushion, Instrument Panel, No.2[09.2016 -] ZVW52..CBU |
55356-47110 |
US $9.60 |
||
|
55700B
|
55700B
55700-47240 Panel Assy, Front[09.2016 -] ZVW52..CBU |
55700-47240 |
US $238.78 |
||
|
55701J
|
55701J
55701-47070 Panel Sub-Assy, Cowl Top, Outer[09.2016 -] ZVW52..CBU |
55701-47070 |
US $156.96 |
||
|
55708
|
55708
55708-47230 Louver Sub-Assy, Cowl Top Ventilator[09.2016 - 05.2017] ZVW52..CBU |
55708-47230 |
US $131.04 |
||
|
55708
|
55708
55708-47240 Louver Sub-Assy, Cowl Top Ventilator[09.2016 - 05.2017] ZVW52..CBU 寒冷地仕様 |
55708-47240 |
US $144.14 |
||
|
55734D
|
55734D
55734-47090 Plate, Water Guard[09.2016 -] ZVW52..CBU |
55734-47090 |
US $12.16 |
||
|
55735C
|
55735C
55735-47030 Reinforcement, Cowl Body Mounting, Rh[09.2016 -] ZVW52..CBU |
55735-47030 |
US $19.51 |
||
|
55738D
|
55738D
55738-47030 Seal, Heater Air Duct Splash Shield, No.2[09.2016 -] ZVW52..CBU |
55738-47030 |
US $11.52 |
||
|
55743
|
55743
55743-47030 Panel, Cowl Top Outside Corner, Rh[09.2016 -] ZVW52..CBU |
55743-47030 |
US $17.76 |
||
|
55744
|
55744
55744-47020 Panel, Cowl Top Outside Corner, Lh[09.2016 -] ZVW52..CBU |
55744-47020 |
US $17.76 |
||
|
55745C
|
55745C
55745-47030 Reinforcement, Cowl Top, Inner[09.2016 -] ZVW52..CBU |
55745-47030 |
US $18.35 |
||
|
55746C
|
55746C
55746-47030 Reinforcement, Cowl Top, Inner[09.2016 -] ZVW52..CBU |
55746-47030 |
US $18.35 |
||
|
55753D
|
55753D
55753-47090 Shield, Cowl Water Extract, Rh[09.2016 -] ZVW52..CBU |
55753-47090 |
from US $8 |
||
|
55754F
|
55754F
55754-47070 Shield, Cowl Water Extract, Lh[09.2016 -] ZVW52..CBU |
55754-47070 |
from US $8 |
||
|
55781G
|
55781G
90467-09242 Clip, Engine Under Cover, No.2[09.2016 -] ZVW52..CBU |
90467-09242 |
from US $1.37 |
||
|
55783E
|
55783E
55783-47130 Louver, Cowl Top Ventilator, Center No.1[09.2016 - 05.2017] ZVW52..CBU |
55783-47130 |
US $29.70 |
||
|
55788C
|
55788C
55788-47150 Protector, Cowl Top Ventilator Louver[09.2016 -] ZVW52..CBU |
55788-47150 |
US $5.92 |
||
|
55789E
|
55789E
55789-47070 Protector, Cowl Top Venttinator Louver, No.2[09.2016 -] ZVW52..CBU |
55789-47070 |
US $8 |
||
|
56111
|
56111
56101-4E943
Glass, Windshield
[09.2016 -] ZVW52..S..CBU プリクラッシュセーフティシステム−無し |
56101-4E943 |
— | ||
|
56111
|
56111
56101-4E944
Glass, Windshield
[09.2016 -] ZVW52..S..CBU 寒冷地仕様＆プリクラッシュセーフティシステム−無し |
56101-4E944 |
— | ||
|
56111
|
56111
56101-4E945
Glass, Windshield
[09.2016 - 12.2016] ZVW52..S..CBU |
56101-4E945 |
— | ||
|
56111
|
56111
56101-4E946
Glass, Windshield
[09.2016 - 12.2016] ZVW52..S..CBU 寒冷地仕様 |
56101-4E946 |
— | ||
|
56111
|
56111
56101-4E972
Glass, Windshield
[09.2016 -] ZVW52..S..CBU “ナビパッケージ”＆プリクラッシュセーフティシステム−無し＆オーディオ−ＡＶＮ（１ １インチ），Ｗｉ−Ｆｉ，＊ＢＴ，ＵＳＢ ＆ ６スピーカ |
56101-4E972 |
— | ||
|
56111
|
56111
56101-4E973
Glass, Windshield
[09.2016 -] ZVW52..S..CBU “ナビパッケージ”＆寒冷地仕様＆プリクラッシュセーフティシステム−無し＆オーディオ −ＡＶＮ（１１インチ），Ｗｉ−Ｆｉ，＊ＢＴ，ＵＳＢ ＆ ６スピーカ |
56101-4E973 |
— | ||
|
56111
|
56111
56101-4E974
Glass, Windshield
[09.2016 - 12.2016] ZVW52..A; ZVW52..S..CBU “ナビパッケージ”＆オーディオ−ＡＶＮ（１１インチ），Ｗｉ−Ｆｉ，＊ＢＴ，ＵＳＢ ＆ ６スピーカ |
56101-4E974 |
— | ||
|
56111
|
56111
56101-4E975
Glass, Windshield
[09.2016 - 12.2016] ZVW52..S..CBU “ナビパッケージ”＆寒冷地仕様＆オーディオ−ＡＶＮ（１１インチ），Ｗｉ−Ｆｉ，＊Ｂ Ｔ，ＵＳＢ ＆ ６スピーカ; ZVW52..A 寒冷地仕様 |
56101-4E975 |
— | ||
|
56111
|
56111
56101-4E985
Glass, Windshield
[12.2016 -] ZVW52..S..CBU |
56101-4E985 |
— | ||
|
56111
|
56111
56101-4E986
Glass, Windshield
[12.2016 -] ZVW52..S..CBU 寒冷地仕様 |
56101-4E986 |
— | ||
|
56111
|
56111
56101-4E999
Glass, Windshield
[12.2016 -] ZVW52..A; ZVW52..S..CBU “ナビパッケージ”＆オーディオ−ＡＶＮ（１１インチ），Ｗｉ−Ｆｉ，＊ＢＴ，ＵＳＢ ＆ ６スピーカ |
56101-4E999 |
— | ||
|
56111
|
56111
56101-4F901
Glass, Windshield
[12.2016 -] ZVW52..S..CBU “ナビパッケージ”＆寒冷地仕様＆オーディオ−ＡＶＮ（１１インチ），Ｗｉ−Ｆｉ，＊Ｂ Ｔ，ＵＳＢ ＆ ６スピーカ; ZVW52..A 寒冷地仕様 |
56101-4F901 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[09.2016 -] ZVW52..CBU |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[09.2016 -] ZVW52..CBU |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-64010 Dam, Window Glass Adhesive[09.2016 -] ZVW52..CBU ＊Ｄ，Ｌ＝２９４７; ZVW52..S..CBU [カ; ZVW52..S..CBU j，Ｗｉ−Ｆｉ，＊ＢＴ，ＵＳＢ ＆ ６スピーカ; ZVW52..S..CBU [ディオ−ＡＶＮ（１１インチ），Ｗｉ−Ｆｉ，＊ＢＴ，ＵＳＢ ＆ ６スピーカ; ZVW52..S..CBU 堰C＊ＢＴ，ＵＳＢ ＆ ６スピーカ; ZVW52..CBU ＊Ｄ，Ｌ＝２９４７,寒冷地仕様; ZVW52..S..CBU ＊Ｄ，Ｌ＝２９４７,寒冷地仕様＆プリクラッシュセーフティシステム−無し; |
56117-64010 |
from US $22.50 |
||
|
56153C
|
56153C
56153-47020 Moulding, Front Window, Inner Center[09.2016 -] ZVW52..CBU |
56153-47020 |
from US $62.73 |
||
|
75533G
|
75533G
75533-47070 Moulding, Windshield, Outside[09.2016 -] ZVW52..CBU |
75533-47070 |
US $23.41 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.44 |
||
|
9046706197
|
9046706197
90467-06197 Clip |
90467-06197 |
US $1.92 |
||
|
9056010098
|
9056010098
90560-10098 Washer, No.2 (For Center Support Bearing) |
90560-10098 |
US $2.56 |
