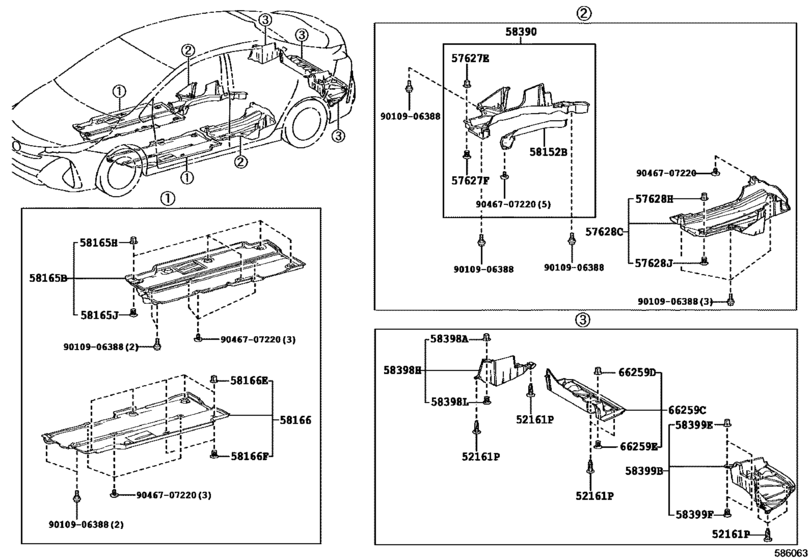

Floor Pan & Lower Back Panel ([09.2016 - ] ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ (1609- )CBU) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZVW52
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161P
|
52161P
52161-16010 Clip[09.2016 -] ZVW52..CBU |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161P
|
52161P
52161-0K040 Clip[09.2016 -] ZVW52..CBU |
52161-0K040 |
from US $1.46 |
||
|
52161P
|
52161P
52161-02020 Clip[09.2016 -] ZVW52..CBU |
52161-02020 |
US $5.27 |
||
|
57627E
|
57627E
90467-17026-A0 Clip, No.1(For Front Fender Seal)[09.2016 -] ZVW52..CBU SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
57627F
|
57627F
90467-17027-C0 Clip, No.2(For Front Fender Seal)[09.2016 -] ZVW52..CBU BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
57628C
|
57628C
57628-47020 Cover, Rear Floor Side Member, Lh[09.2016 -] ZVW52..CBU |
57628-47020 |
US $145.44 |
||
|
57628H
|
57628H
90467-17026-A0 Clip, No.1(For Front Fender Seal)[09.2016 -] ZVW52..CBU SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
57628J
|
57628J
90467-17027-C0 Clip, No.2(For Front Fender Seal)[09.2016 -] ZVW52..CBU BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
58152B
|
58152B
58152-47010 Insulator, Front Floor Heat, No.1 Lower[09.2016 -] ZVW52..CBU |
58152-47010 |
US $38.61 |
||
|
58165B
|
58165B
58165-47040 Cover, Front Floor, Rh[09.2016 -] ZVW52..CBU |
58165-47040 |
US $167.73 |
||
|
58165H
|
58165H
90467-17026-A0 Clip, No.1(For Front Fender Seal)[09.2016 -] ZVW52..CBU SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
58165J
|
58165J
90467-17027-C0 Clip, No.2(For Front Fender Seal)[09.2016 -] ZVW52..CBU BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
58166
|
58166
58166-47040 Cover, Front Floor, Lh[09.2016 -] ZVW52..CBU |
58166-47040 |
US $185.76 |
||
|
58166E
|
58166E
90467-17026-A0 Clip, No.1(For Front Fender Seal)[09.2016 -] ZVW52..CBU SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
58166F
|
58166F
90467-17027-C0 Clip, No.2(For Front Fender Seal)[09.2016 -] ZVW52..CBU BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
58390
|
58390
58390-47010 Cover Assy, Floor Under, No.1[09.2016 -] ZVW52..CBU |
58390-47010 |
US $96.10 |
||
|
58398A
|
58398A
90467-17026-A0 Clip, No.1(For Front Fender Seal)[09.2016 -] ZVW52..CBU SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
58398H
|
58398H
58398-47060 Cover, Floor Under, No.1[09.2016 -] ZVW52..CBU |
58398-47060 |
US $70.22 |
||
|
58398L
|
58398L
90467-17027-C0 Clip, No.2(For Front Fender Seal)[09.2016 -] ZVW52..CBU BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
58399B
|
58399B
58399-47040 Cover, Floor Under, No.2[09.2016 -] ZVW52..CBU |
58399-47040 |
US $93.24 |
||
|
58399E
|
58399E
90467-17026-A0 Clip, No.1(For Front Fender Seal)[09.2016 -] ZVW52..CBU SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
58399F
|
58399F
90467-17027-C0 Clip, No.2(For Front Fender Seal)[09.2016 -] ZVW52..CBU BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
66259C
|
66259C
66259-47020 Cover, Rear Body Floor, Rear[09.2016 -] ZVW52..CBU |
66259-47020 |
US $91.76 |
||
|
66259D
|
66259D
90467-17026-A0 Clip, No.1(For Front Fender Seal)[09.2016 -] ZVW52..CBU SUPER WHITE 2 |
90467-17026-A0 |
from US $1.09 |
||
|
66259E
|
66259E
90467-17027-C0 Clip, No.2(For Front Fender Seal)[09.2016 -] ZVW52..CBU BLACK |
90467-17027-C0 |
from US $1.29 |
||
|
9010906388
|
9010906388
90109-06388 BOLT |
90109-06388 |
from US $0.68 |
||
| replacement | |||||
|
9010906388
|
9010906388
90109-A0061 Bolt |
90109-A0061 |
US $1.77 |
||
|
9046707220
|
9046707220
90467-07220 Clip |
90467-07220 |
US $1.28 |
||
