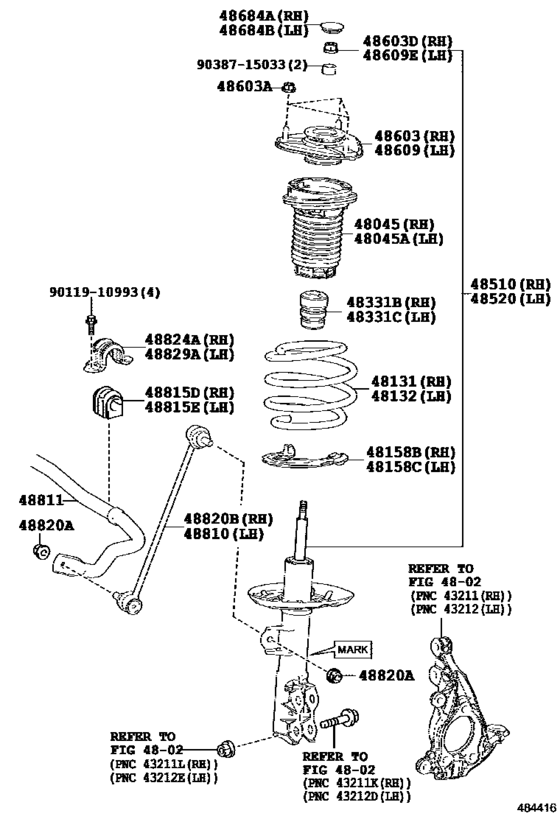

Front Spring & Shock Absorber ([09.2016 - ] (1609- )CBU) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZVW52
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48045
|
48045
48045-47010
Seat Sub-Assy, Front Spring Rh, W/insulator
[09.2016 - 12.2016] ZVW52..CBU |
48045-47010 |
— | ||
| replacement | |||||
|
48045
|
48045
48045-47011 Seat Sub-Assy, Front Spring Rh, W/insulator[09.2016 - 12.2016] ZVW52..CBU |
48045-47011 |
US $49.10 |
||
|
48045
|
48045
48045-47011 Seat Sub-Assy, Front Spring Rh, W/insulator[01.2017 -] ZVW52..CBU |
48045-47011 |
US $49.10 |
||
|
48045A
|
48045A
48045-47010
Seat Sub-Assy, Front Spring Rh, W/insulator
[09.2016 - 12.2016] ZVW52..CBU |
48045-47010 |
— | ||
| replacement | |||||
|
48045A
|
48045A
48045-47011 Seat Sub-Assy, Front Spring Rh, W/insulator[09.2016 - 12.2016] ZVW52..CBU |
48045-47011 |
US $49.10 |
||
|
48045A
|
48045A
48045-47011 Seat Sub-Assy, Front Spring Rh, W/insulator[01.2017 -] ZVW52..CBU |
48045-47011 |
US $49.10 |
||
|
48131
|
48131
48131-47340 Spring, Front Coil, Rh[09.2016 -] ZVW52..CBU |
48131-47340 |
US $58.97 |
||
|
48132
|
48132
48131-47340 Spring, Front Coil, Rh[09.2016 -] ZVW52..CBU |
48131-47340 |
US $58.97 |
||
|
48158B
|
48158B
48158-47020 Insulator, Front Coil Spring, Lower Rh[09.2016 -] ZVW52..CBU |
48158-47020 |
US $10.88 |
||
|
48158C
|
48158C
48158-47020 Insulator, Front Coil Spring, Lower Rh[09.2016 -] ZVW52..CBU |
48158-47020 |
US $10.88 |
||
|
48331B
|
48331B
48331-47030 Bumper, Front Spring, Rh[09.2016 -] ZVW52..CBU |
48331-47030 |
US $6.40 |
||
|
48331C
|
48331C
48331-47030 Bumper, Front Spring, Rh[09.2016 -] ZVW52..CBU |
48331-47030 |
US $6.40 |
||
|
48510
|
48510
48510-80588
Absorber Assy, Shock, Front Rh
[09.2016 -] ZVW52..CBU マーク ４８５１０−４７３８０ |
48510-80588 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-80815 Absorber Assy, Shock, Front Rh[09.2016 -] ZVW52..CBU マーク ４８５１０−４７３８０ |
48510-80815 |
from US $193.73 |
||
|
48520
|
48520
48520-80518
Absorber Assy, Shock, Front Lh
[09.2016 -] ZVW52..CBU マーク ４８５２０−４７３８０ |
48520-80518 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-80492 Absorber Assy, Shock, Front Lh[09.2016 -] ZVW52..CBU マーク ４８５２０−４７３８０ |
48520-80492 |
from US $193.83 |
||
|
48603
|
48603
48609-47060 Support Sub-Assy, Front Suspension[09.2016 -] ZVW52..CBU |
48609-47060 |
US $64.14 |
||
|
48603A
|
48603A
90178-10029 Nut(For Front Suspension Support)[09.2016 -] ZVW52..CBU |
90178-10029 |
from US $0.98 |
||
|
48603D
|
48603D
90177-14007 Nut (For Front Support To Front Shock Absorber)[09.2016 -] ZVW52..CBU |
90177-14007 |
from US $1.09 |
||
|
48609
|
48609
48609-47060 Support Sub-Assy, Front Suspension[09.2016 -] ZVW52..CBU |
48609-47060 |
US $64.14 |
||
|
48609E
|
48609E
90177-14007 Nut (For Front Support To Front Shock Absorber)[09.2016 -] ZVW52..CBU |
90177-14007 |
from US $1.09 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[09.2016 -] ZVW52..CBU |
48684-52010 |
US $9.60 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[09.2016 -] ZVW52..CBU |
48684-52010 |
US $9.60 |
||
|
48810
|
48810
48820-47040 Link Assy, Front Stabilizer[09.2016 -] ZVW52..CBU |
48820-47040 |
from US $50.46 |
||
|
48811
|
48811
48811-47090 Bar, Stabilizer, Front[09.2016 -] ZVW52..CBU |
48811-47090 |
from US $127.28 |
||
|
48815D
|
48815D
48815-47050 Bush, Front Stabilizer Bar, Rh[09.2016 -] ZVW52..CBU |
48815-47050 |
US $9.28 |
||
|
48815E
|
48815E
48815-47050 Bush, Front Stabilizer Bar, Rh[09.2016 -] ZVW52..CBU |
48815-47050 |
US $9.28 |
||
|
48820A
|
48820A
94151-21241 Nut(For Front Stabilizer Link)[09.2016 -] ZVW52..CBU |
94151-21241 |
from US $1.05 |
||
|
48820B
|
48820B
48820-47040 Link Assy, Front Stabilizer[09.2016 -] ZVW52..CBU |
48820-47040 |
from US $50.46 |
||
|
48824A
|
48824A
48824-47020 Bracket, Front Stabilizer, No.1[09.2016 -] ZVW52..CBU |
48824-47020 |
US $17.02 |
||
|
48829A
|
48829A
48824-47020 Bracket, Front Stabilizer, No.1[09.2016 -] ZVW52..CBU |
48824-47020 |
US $17.02 |
||
|
9011910993
|
9011910993
90119-10993 9011910993 |
90119-10993 |
US $1.92 |
||
|
9038715033
|
9038715033
90387-15033 COLLAR |
90387-15033 |
from US $3.20 |
||
