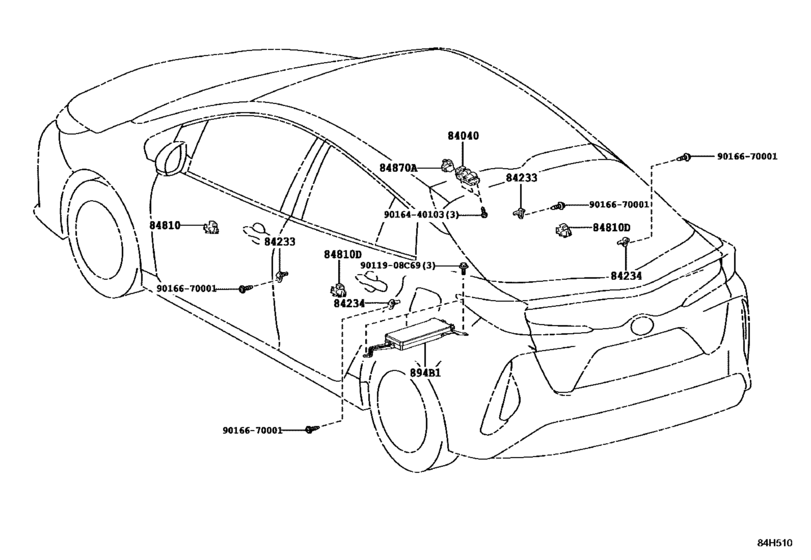

Switch & Relay & Computer ([09.2016 - ] ﾄﾞｱ & ﾙｰﾌ (1609- )CBU) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZVW52
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
894B1
|
894B1
894B0-47010
Solar Energy Control Unit
[12.2016 -] ZVW52..S..CBU ソーラルーフ−有り |
894B0-47010 |
— | ||
| replacement | |||||
|
894B1
|
894B1
894B0-47011 Solar Energy Control Unit[12.2016 -] ZVW52..S..CBU ソーラルーフ−有り |
894B0-47011 |
US $2,743.10 |
||
|
84040
|
84040
84040-47080 Master Switch Assy,multiplex Network[09.2016 -] ZVW52..CBU |
84040-47080 |
US $303.80 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[09.2016 -] ZVW52..CBU |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[09.2016 -] ZVW52..CBU |
84231-53010 |
from US $10.56 |
||
|
84810
|
84810
84810-47010 Switch Assy, Power Window Regulator[09.2016 -] ZVW52..CBU |
84810-47010 |
US $44.19 |
||
|
84810D
|
84810D
84810-47010 Switch Assy, Power Window Regulator[09.2016 -] ZVW52..CBU |
84810-47010 |
US $44.19 |
||
|
84870A
|
84870A
84872-47060 Switch Assy, Outer Mirror[09.2016 -] ZVW52..CBU |
84872-47060 |
from US $43.32 |
||
|
9011908C69
|
9011908C69
90119-08C69 New Genuine Part |
90119-08C69 |
US $1.31 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
