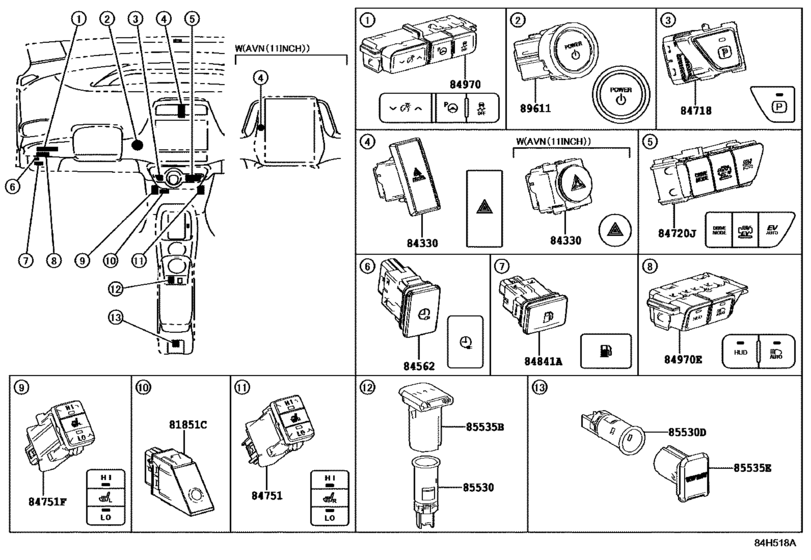

Switch & Relay & Computer ([09.2016 - ] INSTRUMENT PANEL (1609- )) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW52
- grade
- BASE
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81851C
|
81851C
81850-47030 Lamp Assy, Indicator[09.2016 -] ZVW52 |
81850-47030 |
US $15.14 |
||
|
84330
|
84330
84332-47050 Switch Assy, Hazard Warning Signal[09.2016 -] ZVW52..BASE |
84332-47050 |
US $35.96 |
||
|
84330
|
84330
84332-47060 Switch Assy, Hazard Warning Signal[09.2016 -] ZVW52..L; ZVW52..BASE AUDIO-AVN(11INCH), WI-FI, *BT, USB & 6SPEAKER |
84332-47060 |
US $35.96 |
||
|
84562
|
84562
84562-47010
Switch, Fuel Control
[09.2016 -] ZVW52 |
84562-47010 |
— | ||
|
84718
|
84718
84718-47080
Switch, Transmission Shift Main
[09.2016 -] ZVW52 |
84718-47080 |
— | ||
|
84720J
|
84720J
84010-47400
Switch Assy, Pattern Select
[09.2016 -] ZVW52 |
84010-47400 |
— | ||
|
84751
|
84751
84751-47070 Switch, Seat Heater[09.2016 -] ZVW52 |
84751-47070 |
US $55.18 |
||
|
84751F
|
84751F
84751-47060 Switch, Seat Heater[09.2016 -] ZVW52 |
84751-47060 |
US $55.18 |
||
|
84841A
|
84841A
84841-47020 Switch, Fuel Lid Opener[09.2016 -] ZVW52 |
84841-47020 |
US $31.16 |
||
|
84970
|
84970
84010-47260
Switch Assy, Combination
[09.2016 -] ZVW52 |
84010-47260 |
— | ||
|
84970E
|
84970E
84010-47230
Switch Assy, Combination No.2
[09.2016 -] ZVW52..BASE KOREA SPEC&W(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT |
84010-47230 |
— | ||
|
84970E
|
84970E
84010-47250 Switch Assy, Combination No.2[09.2016 -] ZVW52; ZVW52..BASE KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT |
84010-47250 |
US $79.92 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[09.2016 -] ZVW52 |
85530-42010 |
from US $26.60 |
||
|
85530D
|
85530D
85530-42010 Socket Assy, Power Outlet, No.1[09.2016 -] ZVW52 |
85530-42010 |
from US $26.60 |
||
|
85535B
|
85535B
85535-47030 Cover, Power Outlet Socket, No.1[09.2016 -] ZVW52 |
85535-47030 |
US $8.32 |
||
|
85535E
|
85535E
85535-47030 Cover, Power Outlet Socket, No.1[09.2016 -] ZVW52 |
85535-47030 |
US $8.32 |
||
|
89611
|
89611
89611-30142 Switch, Push Start[09.2016 -] ZVW52 |
89611-30142 |
US $122.30 |
