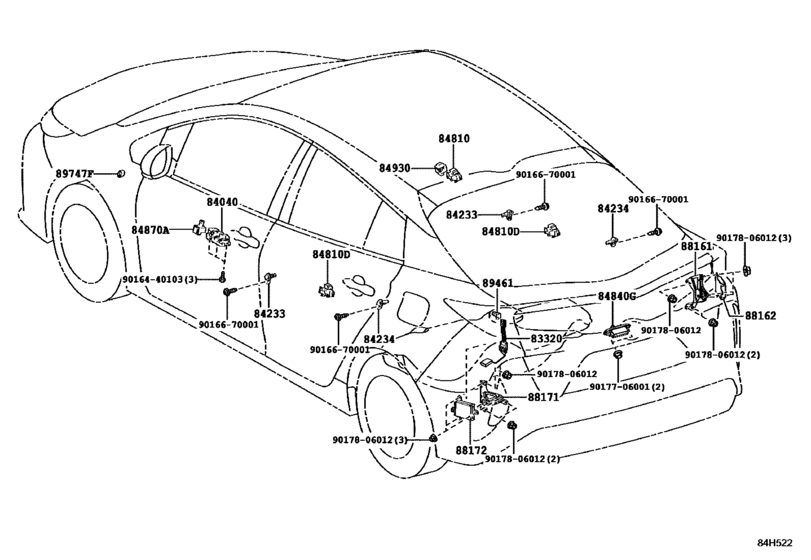

Switch & Relay & Computer ([09.2016 - ] DOOR, ROOF, FLOOR & LUGGAGE (1609- )) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW52
- grade
- BASE
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-47110
Gage Assy, Fuel Sender
[09.2016 -] ZVW52 |
83320-47110 |
— | ||
|
84040
|
84040
84040-47070 Master Switch Assy,multiplex Network[09.2016 -] ZVW52 |
84040-47070 |
US $216.26 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[09.2016 -] ZVW52 |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[09.2016 -] ZVW52 |
84231-53010 |
from US $10.56 |
||
|
84810
|
84810
84810-47010 Switch Assy, Power Window Regulator[09.2016 -] ZVW52 |
84810-47010 |
US $44.19 |
||
|
84810D
|
84810D
84810-47010 Switch Assy, Power Window Regulator[09.2016 -] ZVW52 |
84810-47010 |
US $44.19 |
||
|
84840G
|
84840G
84840-47050
Switch Assy, Back Door Opener
[09.2016 -] ZVW52..BASE |
84840-47050 |
— | ||
|
84870A
|
84870A
84872-47030 Switch Assy, Outer Mirror[09.2016 -] ZVW52 |
84872-47030 |
US $126.46 |
||
|
84930
|
84930
84930-47030
Switch Assy, Door Control
[09.2016 -] ZVW52 |
84930-47030 |
— | ||
|
89461
|
89461
89461-48020
Sensor Assy, Vapor Pressure
[09.2016 -] ZVW52 |
89461-48020 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.84 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9017706001
|
9017706001
90177-06001 New Genuine Part |
90177-06001 |
US $0.96 |
||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.78 |
