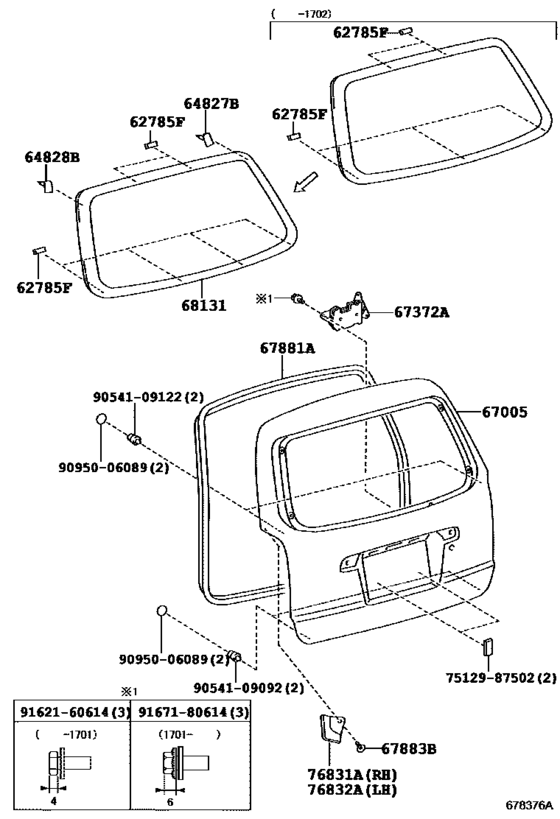

Back Door Panel & Glass ([09.2014 - ] ﾄﾞｱﾊﾟﾈﾙ (1409- )) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NCP165
- grade
- DXCOM
- body
- VAN
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- PROBOX
- From
- 09.2014
- Vehicle Model
- PROBOX
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62785F
|
62785F
62785-16030 Spacer Quarter Panel, No.1[09.2014 - 02.2017] NCP16#,NSP160 |
62785-16030 |
from US $2.46 |
||
|
64827B
|
64827B
64827-52030 Clip, Back Window Glass, Rh[09.2014 -] NCP16#,NSP160 |
64827-52030 |
US $3.04 |
||
|
64828B
|
64828B
64828-52030 Clip, Back Window Glass, Lh[09.2014 -] NCP16#,NSP160 |
64828-52030 |
US $3.04 |
||
|
67005
|
67005
67005-52472 Panel Sub-Assy, Back Door[09.2014 -] NCP16#,NSP160..F,GL,TX,ULX; NCP16#,NSP160..DX,DXCOM,U,UL リヤウィンドウワイパ−有り |
67005-52472 |
US $530.60 |
||
|
67005
|
67005
67005-52E40 Panel Sub-Assy, Back Door[09.2014 -] NCP16#,NSP160..DX,DXCOM,U,UL |
67005-52E40 |
US $530.60 |
||
|
67005
|
67005
67005-52F00 Panel Sub-Assy, Back Door[09.2014 -] NCP16#,NSP160..DX,DXCOM,U,UL リヤウィンドウワイパ−有り＆バックモニタ−有り; NCP16#,NSP160..F,GL,TX,ULX バックモニタ−有り |
67005-52F00 |
US $481.60 |
||
|
67005
|
67005
67005-52F30 Panel Sub-Assy, Back Door[09.2014 -] NCP16#,NSP160..DX,DXCOM,U,UL バックモニタ−有り |
67005-52F30 |
US $481.60 |
||
|
67372A
|
67372A
67049-52010 Weight, Back Door[09.2014 -] NCP16#,NSP160..DX,DXCOM,U,UL; NCP16#,NSP160..DX,DXCOM,U,UL リヤウィンドウワイパ−有り |
67049-52010 |
US $45.75 |
||
|
67881A
|
67881A
67881-52051 Weatherstrip, Back Door[09.2014 -] NCP16#,NSP160 |
67881-52051 |
US $116.92 |
||
|
67883B
|
67883B
90467-05005
Clip, Luggage Trim, Rear
[09.2014 -] NCP16#,NSP160 |
90467-05005 |
— | ||
| replacement | |||||
|
67883B
|
67883B
90467-05005-01 Clip(For Room Partition Board)[09.2014 -] NCP16#,NSP160 |
90467-05005-01 |
US $1.92 |
||
|
68131
|
68131
68105-52190
Glass, Back Door
[09.2014 -] NCP16#,NSP160..F,GL,TX,ULX; NCP16#,NSP160..DX,DXCOM,U,UL リヤサイドガラス−プライバシ |
68105-52190 |
— | ||
|
68131
|
68131
68105-52490
Glass, Back Door
[09.2014 -] NCP16#,NSP160..DX,DXCOM,U,UL |
68105-52490 |
— | ||
|
76831A
|
76831A
76831-52030 Cover, Back Door Finish Panel, Rh[09.2014 -] NCP16#,NSP160 |
76831-52030 |
US $1.92 |
||
|
76832A
|
76832A
76832-52030 Cover, Back Door Finish Panel, Lh[09.2014 -] NCP16#,NSP160 |
76832-52030 |
US $1.92 |
||
|
7512987502
|
7512987502
75129-87502 Cushion, Rear Licence Plate |
75129-87502 |
US $3.04 |
||
|
9054109092
|
9054109092
90541-09092 Cushion(For Back Door Panel) |
90541-09092 |
US $4.16 |
||
|
9054109122
|
9054109122
90541-09122 CUSHION |
90541-09122 |
US $2.56 |
||
|
9095006089
|
9095006089
90950-06089 Protector, Rear Body, No.1 |
90950-06089 |
from US $1.64 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
