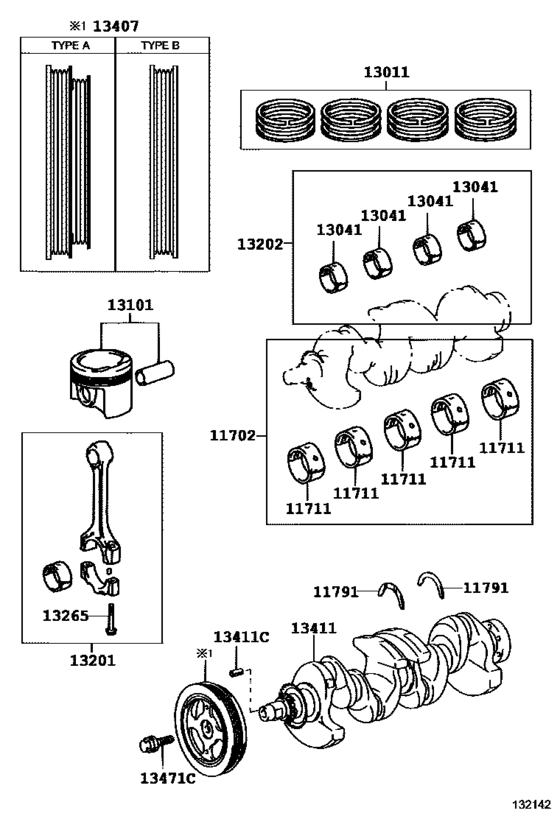

Crankshaft & Piston ([09.2014 - ] (1409- )1NZFE) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NCP165
- grade
- DXCOM
- body
- VAN
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- PROBOX
- From
- 09.2014
- Vehicle Model
- PROBOX
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-21033 Bearing Set, Crankshaft[09.2014 -] 1NZFE..NCP16# Ｕ／Ｓ ０．２５ |
11704-21033 |
US $157.25 |
||
|
11711
|
11711
11701-21033-01 Bearing, Crankshaft[09.2014 -] 1NZFE..NCP16# MARK 1,修理書参照 |
11701-21033-01 |
US $29.79 |
||
|
11711
|
11711
11701-21033-02 Bearing, Crankshaft[09.2014 -] 1NZFE..NCP16# MARK 2,修理書参照 |
11701-21033-02 |
US $29.79 |
||
|
11711
|
11711
11701-21033-03 Bearing, Crankshaft[09.2014 -] 1NZFE..NCP16# MARK 3,修理書参照 |
11701-21033-03 |
US $29.79 |
||
|
11711
|
11711
11701-21033-04 Bearing, Crankshaft[09.2014 -] 1NZFE..NCP16# MARK 4,修理書参照 |
11701-21033-04 |
US $29.79 |
||
|
11791
|
11791
11791-37010 Washer, Crankshaft Thrust, Upper[09.2014 -] 1NZFE..NCP16# ＳＴＤ |
11791-37010 |
US $26.45 |
||
|
11791
|
11791
11792-37010 Washer, Crankshaft Thrust, Upper[09.2014 -] 1NZFE..NCP16# Ｏ／Ｓ ０．１２５ |
11792-37010 |
US $23.44 |
||
|
11791
|
11791
11793-37010 Washer, Crankshaft Thrust, Upper[09.2014 -] 1NZFE..NCP16# Ｏ／Ｓ ０．２５ |
11793-37010 |
US $23.44 |
||
|
13011
|
13011
13011-21091 Ring Set, Piston[09.2014 -] 1NZFE..NCP16# ＳＴＤ |
13011-21091 |
US $151.20 |
||
|
13041
|
13041
13041-21033-01 Bearing, Connecting Rod[09.2014 -] 1NZFE..NCP16# MARK 1,修理書参照 |
13041-21033-01 |
from US $12.79 |
||
|
13041
|
13041
13041-21033-02 Bearing, Connecting Rod[09.2014 -] 1NZFE..NCP16# MARK 2,修理書参照 |
13041-21033-02 |
from US $11.58 |
||
|
13041
|
13041
13041-21033-03 Bearing, Connecting Rod[09.2014 -] 1NZFE..NCP16# MARK 3,修理書参照 |
13041-21033-03 |
US $21.13 |
||
|
13101
|
13101
13101-21120 Piston Sub-Assy, W/pin[09.2014 -] 1NZFE..NCP165 ＳＴＤ |
13101-21120 |
US $59.43 |
||
|
13201
|
13201
13201-29737
Rod Sub-Assy, Connecting
[09.2014 -] 1NZFE..NCP16# |
13201-29737 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29757 Rod sub-assy, Connecting[09.2014 -] 1NZFE..NCP16# |
13201-29757 |
US $105.08 |
||
|
13202
|
13202
13204-21033 Bearing Set, Connecting Rod[09.2014 -] 1NZFE..NCP16# Ｕ／Ｓ ０．２５ |
13204-21033 |
US $79.32 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[09.2014 -] 1N#..NCP16#,NSP160 |
13265-21020 |
from US $3.35 |
||
|
13407
|
13407
13407-21020 Damper Sub-Assy, Crankshaft[09.2014 - 10.2016] 1NZFE..NCP165 ＴＹＰＥ Ａ：イラスト参照 |
13407-21020 |
US $220.32 |
||
|
13407
|
13407
13407-21032 Damper Sub-Assy, Crankshaft[09.2014 -] 1NZFE..NCP16# ＴＹＰＥ Ｂ：イラスト参照 |
13407-21032 |
from US $128.76 |
||
|
13411
|
13411
13401-21020 Crankshaft[09.2014 -] 1NZFE..NCP165 |
13401-21020 |
US $701.79 |
||
|
13411C
|
13411C
90250-03095 Pin, Straight(For Crankshaft)[05.2016 -] 1NZFE..NCP16# |
90250-03095 |
from US $0.57 |
||
|
13411C
|
13411C
90254-03025
Pin, Straight(For Crankshaft)
[09.2014 - 04.2016] 1NZFE..NCP16# |
90254-03025 |
— | ||
| replacement | |||||
|
13411C
|
13411C
90250-03095 Pin, Straight(For Crankshaft)[09.2014 - 04.2016] 1NZFE..NCP16# |
90250-03095 |
from US $0.57 |
||
|
13471C
|
13471C
90119-12345 Bolt(For Crankshaft Pulley Set)[09.2014 -] 1N#..NCP16#,NSP160 |
90119-12345 |
from US $2.79 |
||
