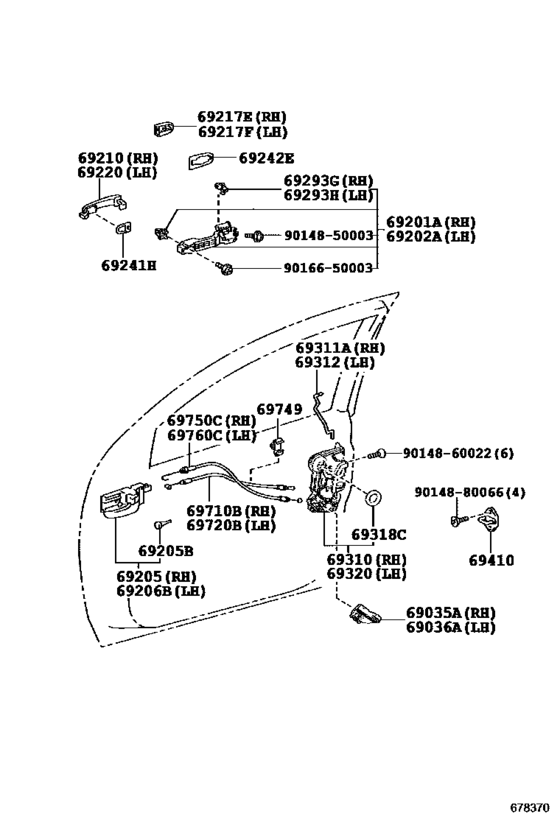

Front Door Lock & Handle ([09.2014 - ] (1409- )) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NCP165
- grade
- DXCOM
- body
- VAN
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- PROBOX
- From
- 09.2014
- Vehicle Model
- PROBOX
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69035A
|
69035A
69035-30010 Cover Sub-Assy, Front Door Lock, Rh[09.2014 -] NCP16#,NSP160 |
69035-30010 |
from US $3.52 |
||
|
69036A
|
69036A
69036-30010 Cover Sub-Assy, Front Door Lock, Lh[09.2014 -] NCP16#,NSP160 |
69036-30010 |
US $3.52 |
||
|
69201A
|
69201A
69201-52010 Frame Sub-Assy, Front Door Outside Handle, Rh[09.2014 -] NCP16#,NSP160 |
69201-52010 |
US $45.30 |
||
|
69202A
|
69202A
69202-52010 Frame Sub-Assy, Front Door Outside Handle, Lh[09.2014 -] NCP16#,NSP160 |
69202-52010 |
US $45.30 |
||
|
69205
|
69205
69205-12200-C0 Handle Sub-Assy, Front Door Inside, Rh[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
69205-12200-C0 |
US $29.18 |
||
|
69205B
|
69205B
90541-04027 Cushion(For Front Door Inside Handle)[09.2014 -] NCP16#,NSP160 |
90541-04027 |
from US $1.60 |
||
|
69206B
|
69206B
69206-12200-C0 Handle Sub-Assy, Front Door Inside, Lh[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
69206-12200-C0 |
US $29.18 |
||
|
69210
|
69210
69211-42010 Handle Assy, Front Door, Outside Rh[09.2014 -] NCP16#,NSP160..DX,DXCOM,U,UL 材料着色（黒） |
69211-42010 |
from US $24.78 |
||
|
69217E
|
69217E
69217-42010 Cover, Front Door Outside Handle[09.2014 -] NCP16#,NSP160..DX,DXCOM,U,UL 材料着色（黒） |
69217-42010 |
US $6.40 |
||
|
69217F
|
69217F
69217-12030 Cover, Front Door Outside Handle[09.2014 -] NCP16#,NSP160..DXCOM,UL 材料着色（黒） |
69217-12030 |
US $8.48 |
||
|
69220
|
69220
69211-42010 Handle Assy, Front Door, Outside Rh[09.2014 -] NCP16#,NSP160..DX,DXCOM,U,UL 材料着色（黒） |
69211-42010 |
from US $24.78 |
||
|
69241H
|
69241H
69241-42020 Pad, Front Door Outside Handle, Rh[09.2014 -] NCP16#,NSP160 |
69241-42020 |
from US $6.40 |
||
|
69242E
|
69242E
69242-52020 Pad, Front Door Outside Handle, Rear[09.2014 -] NCP16#,NSP160 |
69242-52020 |
from US $6.40 |
||
|
69293G
|
69293G
69293-12030 Snap, Front Door Outside Handle[09.2014 -] NCP16#,NSP160 |
69293-12030 |
from US $2.09 |
||
|
69293H
|
69293H
69293-12040 Snap, Front Door Outside Handle[09.2014 -] NCP16#,NSP160 |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69030-30A70 Lock Assy, Front Door W/motor, Rh[09.2014 -] NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX |
69030-30A70 |
US $162.72 |
||
|
69311A
|
69311A
69311-52070 Rod, Front Door Lock Open, Rh[09.2014 -] NCP16#,NSP160 |
69311-52070 |
US $5.37 |
||
|
69312
|
69312
69312-52070 Rod, Front Door Lock Open, Lh[09.2014 -] NCP16#,NSP160 |
69312-52070 |
US $6.88 |
||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[09.2014 -] NCP16#,NSP160 |
69318-51010 |
from US $1.64 |
||
|
69320
|
69320
69040-52430 Lock Assy, Front Door, Lh[09.2014 -] NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX |
69040-52430 |
US $145.04 |
||
|
69410
|
69410
69410-20110 Plate Assy, Front Door Lock Striker[09.2014 -] NCP16#,NSP160 |
69410-20110 |
from US $15.96 |
||
|
69710B
|
69710B
69710-52230 Cable Assy, Front Door Lock Remote Control, Rh[09.2014 -] NCP16#,NSP160 |
69710-52230 |
US $17.78 |
||
|
69720B
|
69720B
69710-52230 Cable Assy, Front Door Lock Remote Control, Rh[09.2014 -] NCP16#,NSP160 |
69710-52230 |
US $17.78 |
||
|
69749
|
69749
69749-32040 Clamp, Front Door Lock Link[09.2014 -] NCP16#,NSP160 |
69749-32040 |
US $3.36 |
||
|
69750C
|
69750C
69750-52150 Cable Assy, Front Door Inside Locking, Rh[09.2014 -] NCP16#,NSP160 |
69750-52150 |
US $17.78 |
||
|
69760C
|
69760C
69750-52150 Cable Assy, Front Door Inside Locking, Rh[09.2014 -] NCP16#,NSP160 |
69750-52150 |
US $17.78 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.49 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.68 |
||
|
9016650003
|
9016650003
90166-50003 New Genuine Part |
90166-50003 |
US $0.73 |
||
