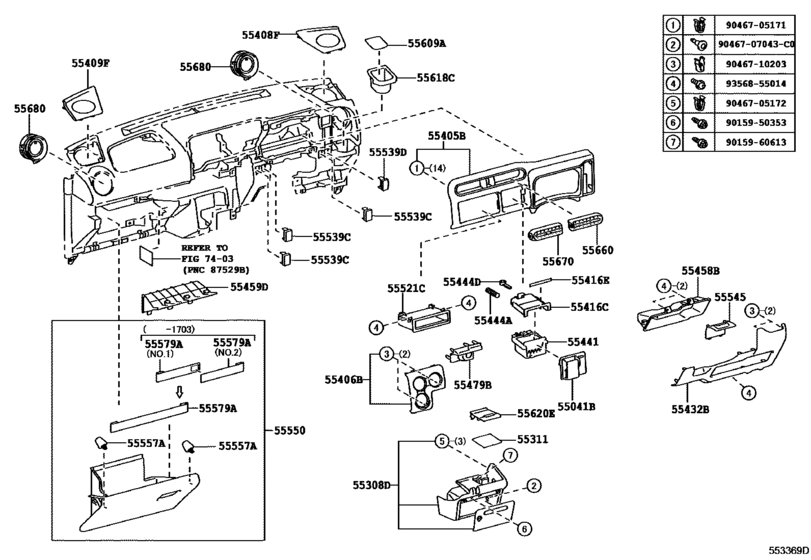

Instrument Panel & Glove Compartment ([09.2014 - ] (1409- )) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NCP165
- grade
- DXCOM
- body
- VAN
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- PROBOX
- From
- 09.2014
- Vehicle Model
- PROBOX
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55041B
|
55041B
55041-52130-C0 Door Sub-Assy, Instrument Panel Box, No.1[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55041-52130-C0 |
US $48.94 |
||
|
55308D
|
55308D
55308-52110-C0 Box Sub-Assy, Instrument Panel, Center[09.2014 - 08.2015] NCP16#,NSP160 BLACK,TRIM1# |
55308-52110-C0 |
US $117.94 |
||
| replacement | |||||
|
55308D
|
55308D
55308-52111-C0 Box Sub-Assy, Instrument Panel, Center[09.2014 - 08.2015] NCP16#,NSP160 BLACK,TRIM1# |
55308-52111-C0 |
US $116.92 |
||
|
55308D
|
55308D
55308-52111-C0 Box Sub-Assy, Instrument Panel, Center[09.2015 -] NCP16#,NSP160 BLACK,TRIM1# |
55308-52111-C0 |
US $116.92 |
||
|
55311
|
55311
58815-52150 Mat, Instrument Panel Under Tray[09.2014 -] NCP16#,NSP160 |
58815-52150 |
US $1.46 |
||
|
55405B
|
55405B
55405-52B70-C0 Panel Sub-Assy, Instrument Cluster Finish, Center[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55405-52B70-C0 |
US $87.32 |
||
|
55406B
|
55406B
55406-52420-C0 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55406-52420-C0 |
US $36.94 |
||
|
55408F
|
55408F
55472-52060-C0 Panel Sub-Assy, Instrument Panel Speaker, No.1[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55472-52060-C0 |
US $12.67 |
||
|
55409F
|
55409F
55473-52060-C0 Panel Sub-Assy, Instrument Panel Speaker, No.2[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55473-52060-C0 |
US $15.66 |
||
|
55416C
|
55416C
55416-52180-C0 Retainer, Instrument Cluster Finish Panel[09.2014 - 12.2016] NCP16#,NSP160 BLACK,TRIM1# |
55416-52180-C0 |
US $23 |
||
|
55416C
|
55416C
55416-52181-C0 Retainer, Instrument Cluster Finish Panel[01.2017 -] NCP16#,NSP160 BLACK,TRIM1# |
55416-52181-C0 |
US $23.56 |
||
|
55416E
|
55416E
41991-52010 Label, Caution[09.2014 -] NCP16#,NSP160 |
41991-52010 |
US $1.76 |
||
|
55432B
|
55432B
55432-52120-C0 Panel, Instrument Panel Finish, Lower[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55432-52120-C0 |
US $52.23 |
||
|
55441
|
55441
55441-52230-C0 Box, Instrument Panel[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55441-52230-C0 |
US $32.22 |
||
|
55444A
|
55444A
55478-52070 Spring, Instrument Panel Box[09.2014 -] NCP16#,NSP160 |
55478-52070 |
US $1.02 |
||
|
55444D
|
55444D
55444-52280 Pin, Instrument Panel Box Door, No.1[09.2014 -] NCP16#,NSP160 |
55444-52280 |
US $1.44 |
||
|
55458B
|
55458B
55458-52060-C0 Cover, Instrument, Lwr[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55458-52060-C0 |
US $39.17 |
||
|
55459D
|
55459D
55459-52020-C0 Cover, Instrument, Lower Lh[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55459-52020-C0 |
US $38.15 |
||
|
55479B
|
55479B
55479-52080-C0 Cover, Instrument, Lower Center[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55479-52080-C0 |
US $15.43 |
||
|
55479B
|
55479B
55479-52090-C0 Cover, Instrument, Lower Center[09.2014 -] NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX アクセサリコネクタ−有り（ＡＣ１００Ｖ）,BLACK,TRIM1# |
55479-52090-C0 |
US $16.02 |
||
|
55521C
|
55521C
55521-26020-C0 Cover, Stereo Opening[09.2014 -] NCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX BLACK,TRIM1#; NCP16#..F,TX オーディオ−ＡＭ／ＦＭ ＆ ２スピーカ,BLACK,TRIM1# |
55521-26020-C0 |
US $17.62 |
||
|
55539C
|
55539C
55539-52060-C0 Cover, Spare Switch Hole[09.2014 - 01.2017] NCP165,NSP160 BLACK,TRIM1# |
55539-52060-C0 |
from US $3.53 |
||
|
55539C
|
55539C
55539-52060-C4 Cover, Spare Switch Hole[01.2017 -] NCP165,NSP160 BLACK,TRIM1#; NCP160 プリクラッシュシステム−無し,BLACK,TRIM1#; NCP160 無し（ＳＴＯＰ ＆ ＳＴＡＲＴシステム）,BLACK,TRIM1# |
55539-52060-C4 |
US $3.52 |
||
|
55539D
|
55539D
55539-33080-C0 Cover, Spare Switch Hole[09.2014 - 10.2016] NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX BLACK,TRIM1# |
55539-33080-C0 |
US $3.20 |
||
|
55539D
|
55539D
55539-33080-C1 Cover, Spare Switch Hole[10.2016 -] NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX BLACK,TRIM1# |
55539-33080-C1 |
US $3.52 |
||
|
55545
|
55545
55545-52080-C0 Cover, Fuse Box Opening[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55545-52080-C0 |
US $10.48 |
||
|
55550
|
55550
55550-52230-C0 Door Assy, Glove Compartment[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55550-52230-C0 |
US $175.68 |
||
|
55557A
|
55557A
55557-60050 Cushion, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR CHECK [09.2014 -] NCP16#,NSP160 |
55557-60050 |
from US $0.82 |
||
|
55579A
|
55579A
55579-52010 Band, Glove Compartment Box[09.2014 - 03.2017] NCP16#,NSP160 ＮＯ．１：イラスト参照 |
55579-52010 |
US $5.39 |
||
|
55579A
|
55579A
55579-52020 Band, Glove Compartment Box[09.2014 - 03.2017] NCP16#,NSP160 ＮＯ．２：イラスト参照 |
55579-52020 |
US $5.39 |
||
|
55579A
|
55579A
55579-52030
Band, Glove Compartment Box
[03.2017 -] NCP16#,NSP160 |
55579-52030 |
— | ||
|
55609A
|
55609A
58815-52140 Mat Set, Instrument Panel Cup Holder[09.2014 -] NCP16#,NSP160 |
58815-52140 |
US $1.46 |
||
|
55618C
|
55618C
55618-52090-C0 Holder, Instrument Panel Cup[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55618-52090-C0 |
US $25.99 |
||
|
55620E
|
55620E
55620-52090-C0 Holder Assy, Instrument Panel Cup[09.2014 -] NCP16#,NSP160 BLACK,TRIM1# |
55620-52090-C0 |
US $16.20 |
||
|
55660
|
55660
55660-52140-C0 Register Assy, Instrument Panel, No.2[09.2014 -] NCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX BLACK,TRIM1# |
55660-52140-C0 |
US $32.38 |
||
|
55670
|
55670
55670-52170-C0 Register Assy, Instrument Panel, No.3[09.2014 -] NCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX BLACK,TRIM1# |
55670-52170-C0 |
US $28.68 |
||
|
55680
|
55680
55680-52120-C0 Register Assy, Instrument Panel, No.1[09.2014 -] NCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX BLACK,TRIM1# |
55680-52120-C0 |
US $43.39 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.72 |
||
|
9015960613
|
9015960613
90159-60613 New Genuine Part |
90159-60613 |
US $0.96 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
from US $0.66 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $0.96 |
||
|
9046707043C0
|
9046707043C0
90467-07043-C0 Clip(For Rear Bumper Retainer) |
90467-07043-C0 |
from US $0.64 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
