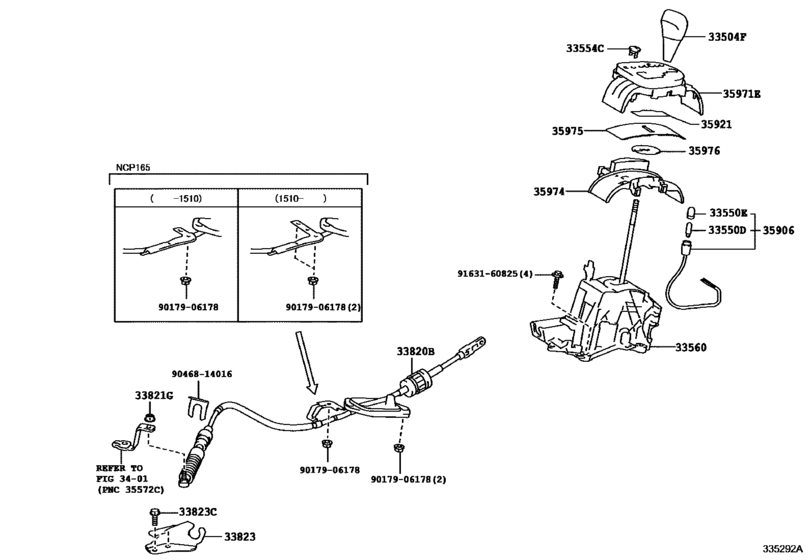

Shift Lever & Retainer ([09.2014 - ] (1409- )NCP16#) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NCP165
- grade
- DXCOM
- body
- VAN
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- PROBOX
- From
- 09.2014
- Vehicle Model
- PROBOX
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-52180-C0 Knob Sub-Assy, Shift Lever[09.2014 -] NCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX BLACK,TRIM1# |
33504-52180-C0 |
US $34.50 |
||
|
33550D
|
33550D
35955-74010 Bulb, Position Indicator LampPOSITION INDICATOR LAMP [09.2014 -] NCP16#,NSP160 １２Ｖ １．４Ｗ |
35955-74010 |
US $4.16 |
||
|
33550E
|
33550E
35956-52010 Cap, Position Indicator Lamp[09.2014 -] NCP16#,NSP160 |
35956-52010 |
US $1.60 |
||
|
33554C
|
33554C
33554-52110 Cover, Shift Lock Release Button[09.2014 -] NCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX |
33554-52110 |
US $0.80 |
||
|
33560
|
33560
33560-52422 Unit Assy, Shift Lock Control[09.2014 -] NCP16#,NSP160 |
33560-52422 |
US $247.52 |
||
|
33820B
|
33820B
33820-52A00 Cable Assy, Transmission Control[09.2014 - 10.2015] NCP165 |
33820-52A00 |
US $158.70 |
||
|
33820B
|
33820B
33820-52A01 Cable Assy, Transmission Control[10.2015 -] NCP165 |
33820-52A01 |
US $144.14 |
||
|
33821G
|
33821G
94151-80800 Nut (For Transmission Control Cable)[09.2014 -] NCP16#,NSP160 |
94151-80800 |
from US $0.82 |
||
|
33823
|
33823
33823-52120 Bracket, Transmission Control Cable, No.1[09.2014 -] NCP16# |
33823-52120 |
US $8.88 |
||
|
33823C
|
33823C
91611-B0816 Bolt[09.2014 -] NCP16#,NSP160 |
91611-B0816 |
from US $1.09 |
||
|
35906
|
35906
35906-52150 Wire Sub-Assy, Indicator Lamp[09.2014 -] NCP16#,NSP160 |
35906-52150 |
US $6.70 |
||
|
35921
|
35921
35921-52130 Plate, Control Position Indicator[09.2014 -] NCP16#,NSP160 |
35921-52130 |
US $10.19 |
||
|
35971E
|
35971E
35971-52700 Housing, Position Indicator[09.2014 -] NCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX |
35971-52700 |
US $24.75 |
||
|
35974
|
35974
35974-52050 Housing, Position Indicator, Lower[09.2014 -] NCP16#,NSP160 |
35974-52050 |
US $32.91 |
||
|
35975
|
35975
35975-52140 Cover, Slide (For Position Indicator)[09.2014 -] NCP16#,NSP160 |
35975-52140 |
US $6.99 |
||
|
35976
|
35976
35976-52140 Cover, Slide, No.2 (For Position Indicator)[09.2014 -] NCP16#,NSP160 |
35976-52140 |
US $4.40 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.84 |
