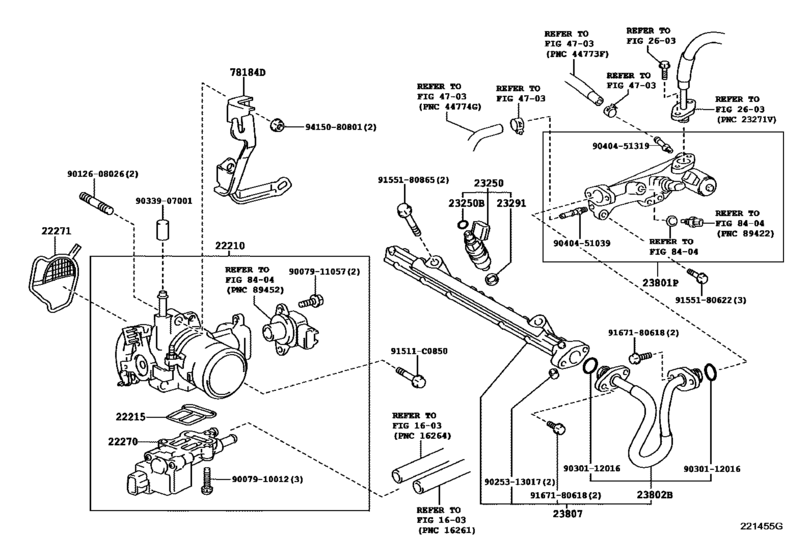

Fuel Injection System ([04.2003 - ] (0304- )1NZFNE) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2003 - 2014
- Sales region
- Japan
- Frame
- NCP52
- grade
- DX
- body
- VAN
- ENGINE
- 1NZFNE
- TRANSMISSION
- ATM
- Model
- PROBOX
- From
- 04.2003
- To
- 09.2014
- Gear Shift Type
- 4FC
- Vehicle Model
- PROBOX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-21010 Body Assy, Throttle[06.2002 -] 1NZ#,2NZFE..NCP5# |
22210-21010 |
US $1,230.80 |
||
|
22215
|
22215
22215-7A680 Gasket, Throttle Body Cover[06.2002 -] 1NZ#,2NZFE..NCP5# |
22215-7A680 |
from US $3.45 |
||
|
22270
|
22270
22270-21010 Valve Assy, Idle Speed Control(For Thlottle Body)[06.2002 - 04.2003] 1NZFE,2NZFE..NCP5# |
22270-21010 |
US $601.33 |
||
| replacement | |||||
|
22270
|
22270
22270-21011 Valve Assy, Idle Speed Control(For Thlottle Body)[06.2002 - 04.2003] 1NZFE,2NZFE..NCP5# |
22270-21011 |
US $624.40 |
||
|
22270
|
22270
22270-21011 Valve Assy, Idle Speed Control(For Thlottle Body)[04.2003 -] 1NZ#,2NZFE..NCP5# |
22270-21011 |
US $624.40 |
||
|
22271
|
22271
22271-21050 Gasket, Throttle Body[01.2003 - 09.2014] 1NZ#,2NZFE..NCP5# |
22271-21050 |
from US $3.45 |
||
|
23250
|
23250
23209-29045 Injector Assy, Fuel[04.2003 - 09.2014] 1NZFNE..NCP52 |
23209-29045 |
US $515.42 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[06.2002 -] 1NZFNE..NCP52 |
90301-07024 |
from US $2.91 |
||
|
23291
|
23291
23291-21010 Insulator, Injector Vibration[04.2003 - 09.2014] 1NZFNE..NCP52 |
23291-21010 |
US $3.64 |
||
|
23801P
|
23801P
23801-21020 Pipe Sub-Assy, Fuel, No.1[04.2003 - 09.2014] 1NZFNE..NCP52 |
23801-21020 |
US $1,470.56 |
||
|
23802B
|
23802B
23802-21010 Pipe Sub-Assy, Fuel, No.2[04.2003 -] 1NZFNE..NCP52 |
23802-21010 |
US $96.10 |
||
|
23807
|
23807
23807-21040 Pipe Sub-Assy, Fuel Delivery[04.2003 -] 1NZFNE..NCP52 |
23807-21040 |
US $793.52 |
||
|
78184D
|
78184D
78184-52011 Bracket, Accelerator Control Cable[06.2002 -] NCP5# |
78184-52011 |
US $18.49 |
||
|
91511C0850
|
91511C0850
91511-C0850 New Genuine Part |
91511-C0850 |
US $0.87 |
||
|
9007910012
|
9007910012
90079-10012 SCREW |
90079-10012 |
US $1.76 |
||
|
9007911057
|
9007911057
90079-11057 SCREW WWASHER |
90079-11057 |
US $1.76 |
||
|
9012608026
|
9012608026
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head) |
90126-08026 |
from US $2.46 |
||
|
9025313017
|
9025313017
90253-13017 Pin, Ring W/head |
90253-13017 |
from US $1.40 |
||
|
9030112016
|
9030112016
90301-12016 New Genuine Part |
90301-12016 |
US $1.89 |
||
|
9033907001
|
9033907001
90339-07001 Plug, Heater Water |
90339-07001 |
from US $3.20 |
||
|
9040451039
|
9040451039
90404-51039 Union, Vacuum Hose(For Manifold Side) |
90404-51039 |
US $5.53 |
||
|
9040451319
|
9040451319
90404-51319 Union, No.1 |
90404-51319 |
from US $3.52 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $0.96 |
||
|
9155180865
|
9155180865
91551-80865 Shaft, Clutch Pedal |
91551-80865 |
US $1.60 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $0.96 |
||
|
9415080801
|
9415080801
94150-80801 Nut |
94150-80801 |
US $1.28 |
||
