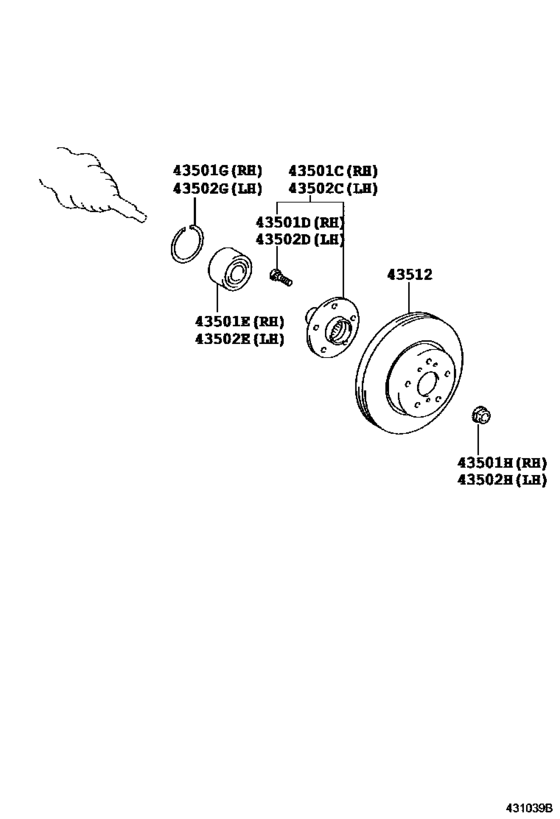

Front Axle Hub ([06.2002 - ] (0206- )) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2002 - 2013
- Sales region
- Japan
- Frame
- NCP58
- grade
- F
- body
- WG
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- PROBOX
- From
- 06.2002
- To
- 10.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- PROBOX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-52010 Hub Sub-Assy, Front Axle[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
43502-52010 |
US $152.52 |
||
|
43501D
|
43501D
90942-02049 Bolt, Hub[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
90942-02082 |
from US $2.32 |
||
|
43501E
|
43501E
90369-38021 Bearing (For Front Axle Hub)[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
90369-38021 |
from US $84.71 |
||
|
43501G
|
43501G
90521-77001 Ring, Hole Snap (For Front Axle Hub Rh)[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
90521-77001 |
from US $2.03 |
||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
90177-22001 |
from US $2.36 |
||
|
43502C
|
43502C
43502-52010 Hub Sub-Assy, Front Axle[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
43502-52010 |
US $152.52 |
||
|
43502D
|
43502D
90942-02049 Bolt, Hub[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
90942-02082 |
from US $2.32 |
||
|
43502E
|
43502E
90369-38021 Bearing (For Front Axle Hub)[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
90369-38021 |
from US $84.71 |
||
|
43502G
|
43502G
90521-77001 Ring, Hole Snap (For Front Axle Hub Rh)[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
90521-77001 |
from US $2.03 |
||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
90177-22001 |
from US $2.36 |
||
|
43512
|
43512
43512-52060 Disc, Front[06.2002 - 09.2014] NCP5#,NLP51..DX,F,GL,TX,U,UL |
43512-52060 |
US $206.40 |
||
|
43512
|
43512
43512-52090 Disc, Front[06.2010 - 10.2013] NCP58,59..TX タイヤ ＆ ディスクホイール−１７５／６５Ｒ１４ ５．５ＪＪ ブラック; NCP58,59..TX タイヤ ＆ ディスクホイール−１７５／６５Ｒ１４ ５．５ＪＪ アルミ; NCP58,59..F センタオーナメント（アルミ用） |
43512-52090 |
US $206.40 |
||
