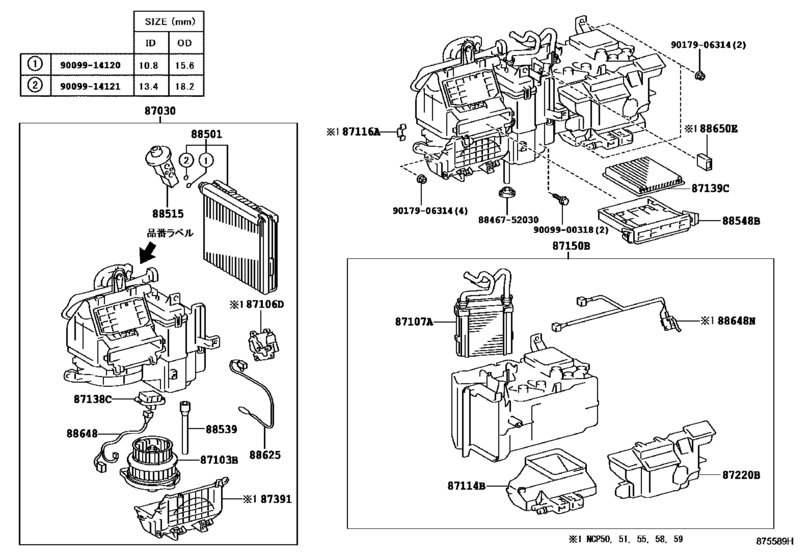

Heating & Air Conditioning - Cooler Unit ([06.2002 - ] ｶﾝﾚｲﾁ ｼﾖｳ (0206- )NCP5#) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2002 - 2013
- Sales region
- Japan
- Frame
- NCP58
- grade
- F
- body
- WG
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- PROBOX
- From
- 06.2002
- To
- 10.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- PROBOX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87030
|
87030
87030-52300
Blower Assy, Air Conditioner
[06.2002 - 12.2002] NCP5# |
87030-52300 |
— | ||
|
87030
|
87030
87030-52301
Blower Assy, Air Conditioner
[12.2002 - 02.2003] NCP5# |
87030-52301 |
— | ||
|
87030
|
87030
87030-52302
Blower Assy, Air Conditioner
[02.2003 - 08.2011] NCP5# |
87030-52302 |
— | ||
|
87030
|
87030
87030-52303
Blower Assy, Air Conditioner
[08.2011 -] NCP5# |
87030-52303 |
— | ||
|
87030
|
87030
87030-52310
Blower Assy, Air Conditioner
[06.2002 - 02.2003] NCP5# 寒冷地仕様 |
87030-52310 |
— | ||
|
87030
|
87030
87030-52311
Blower Assy, Air Conditioner
[02.2003 - 08.2011] NCP50,51,55,58,59 寒冷地仕様 |
87030-52311 |
— | ||
|
87030
|
87030
87030-52312
Blower Assy, Air Conditioner
[08.2011 -] NCP50,51,55,58,59 寒冷地仕様 |
87030-52312 |
— | ||
|
87030
|
87030
87030-52340
Blower Assy, Air Conditioner
[06.2002 -] NCP50,51,55,58,59..DX,DXJ,F,TX,U エアコン−無し |
87030-52340 |
— | ||
|
87030
|
87030
87030-52350
Blower Assy, Air Conditioner
[06.2002 - 02.2003] NCP5#..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87030-52350 |
— | ||
|
87030
|
87030
87030-52351
Blower Assy, Air Conditioner
[02.2003 -] NCP50,51,55,58,59..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87030-52351 |
— | ||
|
87103B
|
87103B
87103-52010
Motor Sub-Assy, Blower W/fan
[06.2002 -] NCP50,51,55,58,59..DX,DXJ,F,TX,U エアコン−無し |
87103-52010 |
— | ||
|
87103B
|
87103B
87103-52030
Motor Sub-Assy, Blower W/fan
[06.2002 - 02.2003] NCP5#,NLP51 寒冷地仕様; NCP5#..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87103-52030 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-52070
Motor Sub-Assy, Blower W/fan
[06.2002 - 02.2003] NCP5#,NLP51 寒冷地仕様; NCP5#..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87103-52070 |
— | ||
|
87103B
|
87103B
87103-52050
Motor Sub-Assy, Blower W/fan
[06.2002 - 02.2003] NCP5#,NLP51 |
87103-52050 |
— | ||
|
87103B
|
87103B
87103-52070
Motor Sub-Assy, Blower W/fan
[02.2003 -] NCP50,51,55,58,59,NLP51 寒冷地仕様; NCP50,51,55,58,59..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87103-52070 |
— | ||
|
87103B
|
87103B
87103-52100
Motor Sub-Assy, Blower W/fan
[02.2003 -] NCP5#,NLP51 |
87103-52100 |
— | ||
|
87106D
|
87106D
87106-52030
Servo Sub-Assy, Damper, No.1
[06.2002 -] NCP50,51,55,58,59,NLP51 寒冷地仕様; NCP50,51,55,58,59..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87106-52030 |
— | ||
|
87107A
|
87107A
87107-52010
Unit Sub-Assy, Heater Radiator
[06.2002 - 09.2014] NCP5#,NLP51 |
87107-52010 |
— | ||
|
87114B
|
87114B
87114-52010
Cover, Heater
[06.2002 - 11.2011] NCP5#,NLP51 |
87114-52010 |
— | ||
| replacement | |||||
|
87114B
|
87114B
87114-52011
Cover, Heater
[06.2002 - 11.2011] NCP5#,NLP51 |
87114-52011 |
— | ||
|
87114B
|
87114B
87114-52011
Cover, Heater
[12.2011 -] NCP5# |
87114-52011 |
— | ||
|
87114B
|
87114B
87114-52020
Cover, Heater
[06.2002 - 11.2011] NCP50,51,55,58,59..DX,F,GL,TX,U,UL 寒冷地仕様; NCP50,51,55,58,59..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87114-52020 |
— | ||
|
87114B
|
87114B
87114-52021
Cover, Heater
[12.2011 -] NCP50,51,55,58,59 寒冷地仕様; NCP50,51,55,58,59..DX,F,TX,U 寒冷地仕様＆エアコン−無し |
87114-52021 |
— | ||
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[02.2003 -] NCP50,51,55,58,59,NLP51 寒冷地仕様 |
87116-14010 |
— | ||
|
87138C
|
87138C
87138-52010 Resistor, Blower[06.2002 -] NCP5#,NLP51 |
87138-52010 |
from US $16.77 |
||
|
87139C
|
87139C
87139-12010 Filter, Clean Air[06.2002 -] NCP5#..DX,F,GL,TX,U,UL 補給専用微細塵フィルタ |
87139-12010 |
from US $33.60 |
||
|
87139C
|
87139C
87139-44010 Filter, Clean Air[06.2002 -] NCP5#..DX,F,GL,TX,U,UL 脱臭フィルタ |
87139-44010 |
US $67.20 |
||
|
87150B
|
87150B
87150-52010
Radiator Assy, Heater
[06.2002 -] NCP5# |
87150-52010 |
— | ||
|
87150B
|
87150B
87150-52030
Radiator Assy, Heater
[06.2002 -] NCP50,51,55,58,59 寒冷地仕様; NCP50,51,55,58,59..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87150-52030 |
— | ||
|
87220B
|
87220B
87220-52010
Duct Assy, Air
[06.2002 -] NCP5#,NLP51 |
87220-52010 |
— | ||
|
87391
|
87391
87391-52010
Cover, Blower Motor
[06.2002 - 12.2002] NCP5#,NLP51 寒冷地仕様; NCP5#..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87391-52010 |
— | ||
| replacement | |||||
|
87391
|
87391
87391-52011
Cover, Blower Motor
[06.2002 - 12.2002] NCP5#,NLP51 寒冷地仕様; NCP5#..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87391-52011 |
— | ||
|
87391
|
87391
87391-52011
Cover, Blower Motor
[02.2003 -] NCP50,51,55,58,59,NLP51 寒冷地仕様; NCP50,51,55,58,59..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
87391-52011 |
— | ||
|
88501
|
88501
88501-52010 Evaporator Sub-Assy, Cooler, No.1[06.2002 - 02.2003] NCP5#,NLP51 寒冷地仕様 |
88501-52010 |
US $529.40 |
||
|
88501
|
88501
88501-52030
Evaporator Sub-Assy, Cooler, No.1
[06.2002 - 12.2002] NCP5# |
88501-52030 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-52070 Evaporator Sub-Assy, Cooler, No.1[06.2002 - 12.2002] NCP5# |
88501-52070 |
US $405.35 |
||
|
88501
|
88501
88501-52070 Evaporator Sub-Assy, Cooler, No.1[12.2002 -] NCP5# |
88501-52070 |
US $405.35 |
||
|
88515
|
88515
88515-52020 Valve, Cooler Expansion[06.2002 - 12.2003] NCP5# |
88515-52020 |
US $139.78 |
||
| replacement | |||||
|
88515
|
88515
88515-52040 Valve, Cooler Expansion[06.2002 - 12.2003] NCP5# |
88515-52040 |
US $159.08 |
||
|
88515
|
88515
88515-52040 Valve, Cooler Expansion[12.2003 - 08.2011] NCP5# |
88515-52040 |
US $159.08 |
||
|
88515
|
88515
88515-52080 Valve, Cooler Expansion[08.2011 - 09.2014] NCP5# |
88515-52080 |
US $159.08 |
||
|
88539
|
88539
88539-52010
Hose, Cooler Unit Drain, No.1
[06.2002 - 02.2003] NCP5#..DX,DXJ,F,TX,U エアコン−無し |
88539-52010 |
— | ||
|
88548B
|
88548B
88548-52010 Case, Air Filter[06.2002 -] NCP5#,NLP51 クリーン エア フィルター−有り |
88548-52010 |
from US $9.43 |
||
| replacement | |||||
|
88548B
|
88548B
88548520101
Holder Sub-Assy, Filter
[06.2002 -] NCP5#,NLP51 クリーン エア フィルター−有り |
88548520101 |
— | ||
|
88625
|
88625
88625-52090
Thermistor, Cooler, No.1
[02.2003 -] NCP5#,NLP51 |
88625-52090 |
— | ||
|
88625
|
88625
88625-60140 Thermistor, Cooler, No.1[06.2002 - 02.2003] NCP5#,NLP51 |
88625-60140 |
US $10.51 |
||
|
88648
|
88648
88648-52020
Wiring, Cooler, No.1
[06.2002 - 02.2003] NCP5#,NLP51 |
88648-52020 |
— | ||
|
88648
|
88648
88648-52120
Wiring, Cooler, No.1
[02.2003 -] NCP5#,NLP51 |
88648-52120 |
— | ||
|
88648N
|
88648N
88648-52010
Wiring, Cooler, No.2
[06.2002 -] NCP50,51,55,58,59 寒冷地仕様; NCP50,51,55,58,59..DX,DXJ,F,TX,U 寒冷地仕様＆エアコン−無し |
88648-52010 |
— | ||
|
88650E
|
88650E
88650-52150
Amplifier Assy, Air Conditioner, No.1
[06.2002 -] NCP50,51,55,58,59 寒冷地仕様 |
88650-52150 |
— | ||
|
8846752030
|
8846752030
88467-52030
Grommet (For Cooler Unit Drain Hose)
|
88467-52030 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
