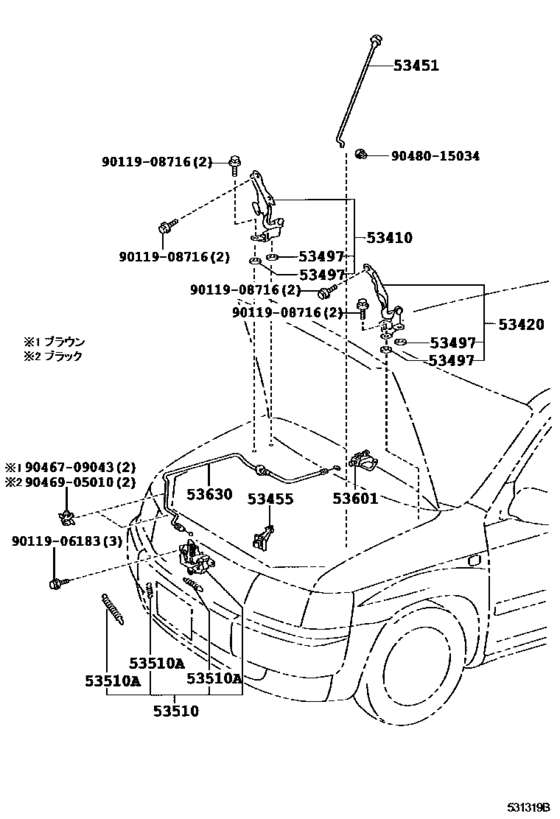

Hood Lock & Hinge ([06.2002 - ] (0206- )) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2002 - 2013
- Sales region
- Japan
- Frame
- NCP58
- grade
- F
- body
- WG
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- PROBOX
- From
- 06.2002
- To
- 10.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- PROBOX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-16100 Hinge Assy, Hood, Rh[06.2002 - 09.2014] NCP5#,NLP51 |
53410-16100 |
US $43.51 |
||
|
53420
|
53420
53420-16080 Hinge Assy, Hood, Lh[06.2002 - 09.2014] NCP5#,NLP51 |
53420-16080 |
US $43.51 |
||
|
53451
|
53451
53440-52060 Rod, Hood Support[06.2002 -] NCP5#,NLP51 |
53440-52060 |
US $12.38 |
||
|
53455
|
53455
53455-52020 Clamp, Hood Support Rod[06.2002 -] NCP5#,NLP51 |
53455-52020 |
US $8.24 |
||
|
53497
|
53497
53497-20070 Pad, Hood Hinge, No.1[10.2002 -] NCP5#,NLP51 厚さ＝２．０ |
53497-20070 |
US $2.51 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[06.2002 -] NCP5#,NLP51 厚さ＝０．５ |
53497-42010 |
US $1.79 |
||
|
53510
|
53510
53510-52150 Lock Assy, Hood[06.2002 -] NCP5#,NLP51 |
53510-52150 |
US $53.76 |
||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[06.2002 -] NCP5#,NLP51 線径＝０．９，コイル巻数＝２１ |
90506-09055 |
from US $1.52 |
||
|
53510A
|
53510A
90506-12063 Spring, Tension(For Hood Lock)[06.2002 -] NCP5#,NLP51 線径＝１．２，コイル巻数＝８．５ |
90506-12063 |
from US $1.33 |
||
|
53510A
|
53510A
90506-18067 Spring, Tension(For Hood Lock)[06.2002 -] NCP5#,NLP51 線径＝１．８，コイル巻数＝１３ |
90506-18067 |
from US $1.48 |
||
|
53601
|
53601
53601-52010-B3 Lever Sub-Assy, Hood Lock Control[06.2002 - 09.2014] NCP5#,NLP51 DK.GRAY,TRIM1# |
53601-52010-B3 |
from US $26.04 |
||
|
53630
|
53630
53630-52040 Cable Assy, Hood Lock Control[06.2002 - 01.2009] NCP5#,NLP51 |
53630-52040 |
US $21.55 |
||
| replacement | |||||
|
53630
|
53630
53630-52041 Cable Assy, Hood Lock Control[06.2002 - 01.2009] NCP5#,NLP51 |
53630-52041 |
US $26.71 |
||
|
53630
|
53630
53630-52041 Cable Assy, Hood Lock Control[02.2009 -] NCP5# |
53630-52041 |
US $26.71 |
||
|
9011906183
|
9011906183
90119-06183 New Genuine Part |
90119-06183 |
US $1.97 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.76 |
||
|
9046709043
|
9046709043
90467-09043 Clamp, Hood Lock Control Cable |
90467-09043 |
from US $1.42 |
||
|
9046905010
|
9046905010
90469-05010 Clamp, No.2(For Air Tube, No.2) |
90469-05010 |
US $1.65 |
||
|
9048015034
|
9048015034
90480-15034 Grommet(For Hood Support) |
90480-15034 |
from US $1.81 |
||
