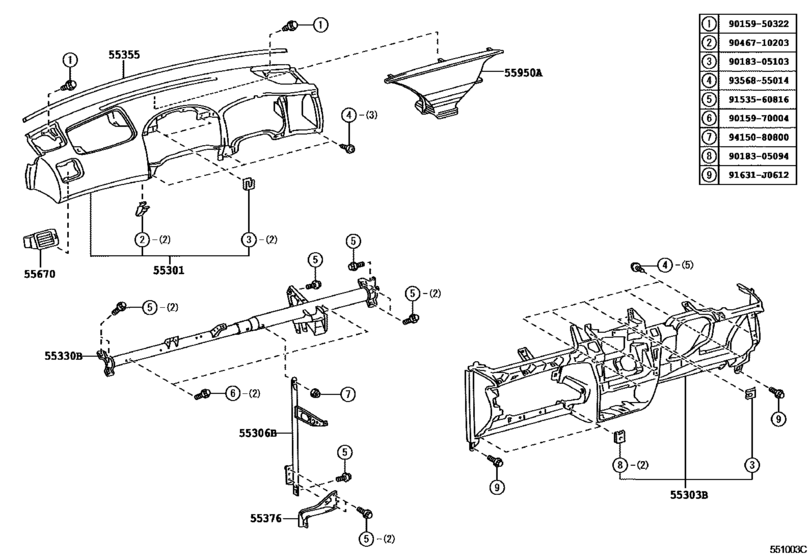

Instrument Panel & Glove Compartment ([06.2002 - ] (0206- )) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2002 - 2013
- Sales region
- Japan
- Frame
- NCP58
- grade
- F
- body
- WG
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- PROBOX
- From
- 06.2002
- To
- 10.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- PROBOX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-52080-B0 Panel Sub-Assy, Instrument[06.2002 - 09.2014] NCP5#,NLP51 DK.GRAY,TRIM1# |
55301-52080-B0 |
US $228.59 |
||
|
55303B
|
55303B
55303-52050-B0 Panel Sub-Assy, Instrument, Lower[06.2002 - 09.2014] NCP5#,NLP51 DK.GRAY,TRIM1# |
55303-52050-B0 |
US $269.36 |
||
|
55306B
|
55306B
55306-52080 Brace Sub-Assy, Instrument Panel To Cowl[06.2002 -] NCP5#,NLP51 |
55306-52080 |
US $29.12 |
||
|
55330B
|
55330B
55330-52190 Reinforcement Assy, Instrument Panel[06.2002 -] NCP5#..4FC |
55330-52190 |
US $131.04 |
||
|
55355
|
55355
55355-52050 Cushion, Instrument Panel, No.1[06.2002 -] NCP5#,NLP51 |
55355-52050 |
US $11.11 |
||
|
55376
|
55376
55376-52020 Bracket, Instrument Panel Mounting, No.1[06.2002 - 06.2010] NCP50,51,55,58,59..DX,F,GL,TX,U,UL |
55376-52020 |
US $10.05 |
||
|
55376
|
55376
55376-52070 Bracket, Instrument Panel Mounting, No.1[06.2010 -] NCP50,51,55,58,59 |
55376-52070 |
US $11.65 |
||
|
55670
|
55670
55670-12270-B2 Register Assy, Instrument Panel, No.3[06.2002 - 09.2014] NCP5#,NLP51 DK.GRAY,TRIM1# |
55670-12270-B2 |
US $60.31 |
||
|
55950A
|
55950A
55950-52060 Nozzle Assy, Defroster[06.2002 -] NCP5#,NLP51 |
55950-52060 |
US $47.03 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9153560816
|
9153560816
91535-60816 BOLT WWASHER |
91535-60816 |
US $1.05 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
