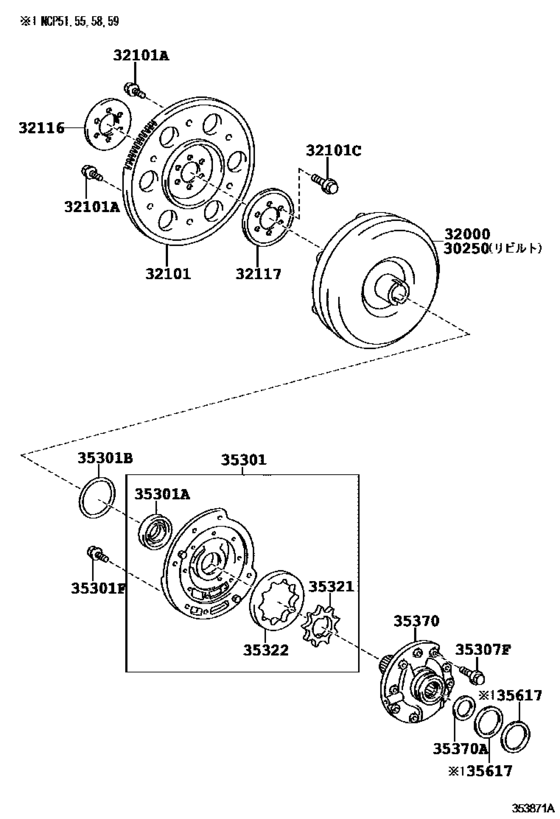

Torque Converter, Front Oil Pump & Chain (Atm) ([06.2002 - ] U340E,U340F,U441E (0206- )4FC) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2002 - 2013
- Sales region
- Japan
- Frame
- NCP58
- grade
- F
- body
- WG
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- PROBOX
- From
- 06.2002
- To
- 10.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- PROBOX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-52040 Converter Assy, Torque[06.2002 - 12.2006] NCP51,52,55,58,59..4FC |
32000-52040 |
US $1,674.40 |
||
| replacement | |||||
|
32000
|
32000
32000-52041 Converter Assy, Torque[06.2002 - 12.2006] NCP51,52,55,58,59..4FC |
32000-52041 |
from US $1,051.23 |
||
|
32000
|
32000
32000-52041 Converter Assy, Torque[12.2006 - 09.2014] NCP51,52,55,58,59..4FC |
32000-52041 |
from US $1,051.23 |
||
|
32101
|
32101
32101-52020 Gear Sub-Assy, Drive Plate & Ring[06.2002 - 08.2002] NCP5#..4FC |
32101-52020 |
US $247.52 |
||
| replacement | |||||
|
32101
|
32101
32101-52021 Gear Sub-Assy, Drive Plate & Ring[06.2002 - 08.2002] NCP5#..4FC |
32101-52021 |
US $155.79 |
||
|
32101
|
32101
32101-52021 Gear Sub-Assy, Drive Plate & Ring[08.2002 -] NCP5#..4FC |
32101-52021 |
US $155.79 |
||
|
32101A
|
32101A
90109-08113 Bolt(For Drive Plate & Torque Converter Setting)[06.2002 -] NCP5#..4FC..(DX,F,GL,TX,U,UL) ＊８−１．２５ＰＸ１２−８．４,オリーブ グリーン |
90109-08113 |
US $1.43 |
||
|
32101A
|
32101A
90119-08498 Bolt(For Drive Plate & Torque Converter Setting)[06.2002 -] NCP5#..4FC..(DX,F,GL,TX,U,UL) ＊８−１．２５ＰＸ１２−８,ブラック |
90119-08498 |
from US $0.80 |
||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[06.2002 - 03.2010] NCP5#..4FC..(DX,F,GL,TX,U,UL) ＊１０−１．２５ＰＸ１８−１３,（Ｊ） |
90105-10048 |
from US $1.11 |
||
|
32101C
|
32101C
90105-A0022
Bolt, Hexagon(For Drive Plate Setting)
[06.2002 - 03.2010] NCP5#..4FC..(DX,F,GL,TX,U,UL) ＊１０−１．２５ＰＸ１８−１３,（Ｌ） |
90105-A0022 |
— | ||
| replacement | |||||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[06.2002 - 03.2010] NCP5#..4FC..(DX,F,GL,TX,U,UL) ＊１０−１．２５ＰＸ１８−１３,（Ｌ） |
90105-10048 |
from US $1.11 |
||
|
32116
|
32116
32116-52030 Spacer, Drive Plate, Front[06.2002 -] NCP5#..4FC |
32116-52030 |
US $9.17 |
||
|
32117
|
32117
32117-52030 Spacer, Drive Plate, Rear[06.2002 -] NCP5#..4FC |
32117-52030 |
US $14.12 |
||
|
35301
|
35301
35035-52040 Body Sub-Assy, Front Oil Pump[06.2002 -] NCP51,52,55,58,59..4FC |
35035-52040 |
US $190.44 |
||
|
35301A
|
35301A
90311-38064 Seal, Oil (For Front Oil Pump)[06.2002 - 11.2010] NCP51,52,55,58,59..4FC ブラック,ブラウン |
90311-38064 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99124 Ring, O (For Front Oil Pump Body)[06.2002 - 12.2013] NCP51,52,55,58,59..4FC |
90301-99124 |
from US $3.20 |
||
|
35301F
|
35301F
90105-08301 Bolt (For Front Oil Pump Setting)[06.2002 -] NCP51,52,55,58,59..4FC ＊８−１．２５ＰＸ２２−２０ |
90105-08301 |
US $1.10 |
||
|
35307F
|
35307F
90148-60027 Bolt (For Stator Shaft)[06.2002 -] NCP51,52,55,58,59..4FC |
90148-60027 |
US $0.73 |
||
|
35321
|
35321
35321-52060 Gear, Front Oil Pump Drive[06.2002 -] NCP51,52,55,58,59..4FC 厚さ＝９．４４−９．４４９，マーク １ |
35321-52060 |
US $30.23 |
||
|
35321
|
35321
35321-52070 Gear, Front Oil Pump Drive[06.2002 -] NCP51,52,55,58,59..4FC 厚さ＝９．４５−９．４５９，マーク ２ |
35321-52070 |
US $30.23 |
||
|
35321
|
35321
35321-52080 Gear, Front Oil Pump Drive[06.2002 -] NCP51,52,55,58,59..4FC 厚さ＝９．４６−９．４７，マーク ３ |
35321-52080 |
US $31.16 |
||
|
35321
|
35321
35321-52090 Gear, Front Oil Pump Drive[06.2002 -] NCP51,52,55,58,59..4FC 厚さ＝９．４７１−９．４８，マーク ４ |
35321-52090 |
US $31.16 |
||
|
35321
|
35321
35321-52100 Gear, Front Oil Pump Drive[06.2002 -] NCP51,52,55,58,59..4FC 厚さ＝９．４８１−９．４９，マーク ５ |
35321-52100 |
US $31.16 |
||
|
35322
|
35322
35322-52060 Gear, Front Oil Pump Driven[06.2002 -] NCP51,52,55,58,59..4FC 厚さ＝９．４４−９．４４９，マーク １ |
35322-52060 |
US $26.21 |
||
|
35322
|
35322
35322-52070 Gear, Front Oil Pump Driven[06.2002 -] NCP51,52,55,58,59..4FC 厚さ＝９．４５−９．４５９，マーク ２ |
35322-52070 |
US $26.21 |
||
|
35322
|
35322
35322-52080 Gear, Front Oil Pump Driven[06.2002 -] NCP51,52,55,58,59..4FC 厚さ＝９．４６−９．４７，マーク ３ |
35322-52080 |
US $26.21 |
||
|
35322
|
35322
35322-52090 Gear, Front Oil Pump Driven[06.2002 -] NCP51,52,55,58,59..4FC 厚さ＝９．４７１−９．４８，マーク ４ |
35322-52090 |
US $26.21 |
||
|
35322
|
35322
35322-52100 Gear, Front Oil Pump Driven[06.2002 -] NCP51,52,55,58,59..4FC 厚さ＝９．４８１−９．４９ マーク ５ |
35322-52100 |
US $26.21 |
||
|
35370
|
35370
35370-52030 Shaft Assy, Stator[06.2002 - 01.2006] NCP51,52,55,58,59..4FC |
35370-52030 |
US $321.78 |
||
| replacement | |||||
|
35370
|
35370
35370-52070 Shaft Assy, Stator[06.2002 - 01.2006] NCP51,52,55,58,59..4FC |
35370-52070 |
US $200.93 |
||
|
35370
|
35370
35370-52070 Shaft Assy, Stator[01.2006 -] NCP51,52,55,58,59..4FC |
35370-52070 |
US $200.93 |
||
|
35370A
|
35370A
90374-26003 Bearing, Thrust Needle Roller(For Stator Shaft)[06.2002 - 09.2014] NCP51,52,55,58,59..4FC |
90374-26003 |
US $12.08 |
||
|
35617
|
35617
35613-52010 Ring, Clutch Drum Oil Seal[06.2002 - 12.2006] NCP51,52,55,58,59..4FC |
35613-52010 |
US $2.62 |
||
| replacement | |||||
|
35617
|
35617
35613-52020 Ring, Clutch Drum Oil Seal[06.2002 - 12.2006] NCP51,52,55,58,59..4FC |
35613-52020 |
US $1.51 |
||
|
35617
|
35617
35613-52020 Ring, Clutch Drum Oil Seal[12.2006 -] NCP51,52,55,58,59..4FC |
35613-52020 |
US $1.51 |
||
