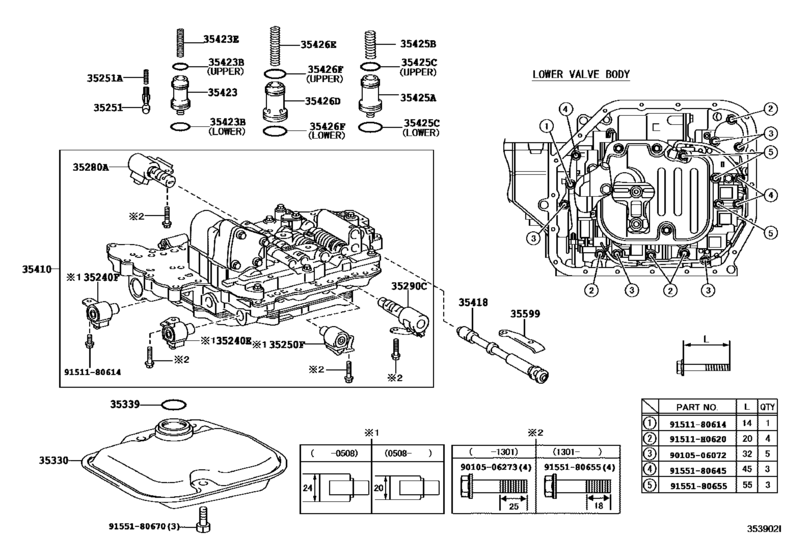

Valve Body & Oil Strainer (Atm) ([06.2002 - ] U340E,U340F (0206- )NCP51,52,55,58,59..4FC) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2002 - 2013
- Sales region
- Japan
- Frame
- NCP58
- grade
- F
- body
- WG
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- PROBOX
- From
- 06.2002
- To
- 10.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- PROBOX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35240E
|
35240E
35240-52011
Solenoid Assy, Automatic Transmission 3Way
[06.2002 - 08.2005] NCP51,52,55,58,59..4FC |
35240-52011 |
— | ||
|
35240E
|
35240E
35240-52050 Solenoid Assy, Automatic Transmission 3Way[08.2005 - 01.2012] NCP51,52,55,58,59..4FC |
35240-52050 |
US $179.09 |
||
| replacement | |||||
|
35240E
|
35240E
35240-52051 Solenoid Assy, Automatic Transmission 3Way[08.2005 - 01.2012] NCP51,52,55,58,59..4FC |
35240-52051 |
US $131.04 |
||
|
35240E
|
35240E
35240-52051 Solenoid Assy, Automatic Transmission 3Way[01.2012 - 09.2014] NCP51,52,55,58,59..4FC |
35240-52051 |
US $131.04 |
||
|
35240F
|
35240F
35230-52011 Solenoid Assy, Transmission 3Way, No.2[06.2002 - 08.2005] NCP51,52,55,58,59..4FC |
35230-52011 |
US $227.14 |
||
|
35240F
|
35240F
35230-52020
Solenoid Assy, Transmission 3Way, No.2
[08.2005 - 01.2012] NCP51,52,55,58,59..4FC |
35230-52020 |
— | ||
| replacement | |||||
|
35240F
|
35240F
35230-52021 Solenoid Assy, Transmission 3Way, No.2[08.2005 - 01.2012] NCP51,52,55,58,59..4FC |
35230-52021 |
from US $138.72 |
||
|
35240F
|
35240F
35230-52021 Solenoid Assy, Transmission 3Way, No.2[01.2012 - 09.2014] NCP51,52,55,58,59..4FC |
35230-52021 |
from US $138.72 |
||
|
35250F
|
35250F
35250-52010 Solenoid Assy, Transmission, No.3[06.2002 - 08.2005] NCP51,52,55,58,59..4FC |
35250-52010 |
US $542.39 |
||
|
35250F
|
35250F
35250-52080 Solenoid Assy, Transmission, No.3[08.2005 - 09.2014] NCP51,52,55,58,59..4FC |
35250-52080 |
from US $143.80 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[06.2002 -] NCP5#..4FC |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[06.2002 -] NCP51,52,55,58,59..4FC |
90501-03005 |
from US $0.79 |
||
|
35280A
|
35280A
35280-52020 Solenoid Assy, Lock Up Control[06.2002 - 09.2014] NCP51,52,55,58,59..4FC |
35280-52020 |
from US $103.38 |
||
|
35290C
|
35290C
35290-52030 Solenoid Assy, Line Pressure Control[06.2002 - 09.2014] NCP51,52,55,58,59..4FC |
35290-52030 |
US $160.74 |
||
|
35330
|
35330
35330-0W020
Strainer Assy, Valve Body Oil
[06.2002 - 03.2012] NCP51,52,55,58,59..4FC |
35330-0W020 |
— | ||
| replacement | |||||
|
35330
|
35330
35330-0W021 Strainer Assy, Valve Body Oil[06.2002 - 03.2012] NCP51,52,55,58,59..4FC |
35330-0W021 |
from US $51.07 |
||
|
35330
|
35330
35330-0W021 Strainer Assy, Valve Body Oil[03.2012 -] NCP51,52,55,58,59..4FC |
35330-0W021 |
from US $51.07 |
||
|
35339
|
35339
90301-32010 O-ring (Gasket, Oil Strainer)[06.2002 - 07.2013] NCP51,52,55,58,59..4FC |
90301-32010 |
from US $2.46 |
||
|
35339
|
35339
90301-32015 Gasket, Oil Strainer[07.2013 -] NCP51,52,55,58,59..4FC |
90301-32015 |
from US $2.34 |
||
|
35410
|
35410
35410-52060 Body Assy, Transmission Valve[06.2002 - 11.2002] NCP51,55,58,59..4FC |
35410-52060 |
US $1,557.92 |
||
| replacements | |||||
|
35410
|
35410
35330-0W021 Strainer Assy, Valve Body Oil[06.2002 - 11.2002] NCP51,55,58,59..4FC |
35330-0W021 |
from US $51.07 |
||
|
35410
|
35410
82125-52100 Wire, Transmission[06.2002 - 11.2002] NCP51,55,58,59..4FC |
82125-52100 |
US $36.98 |
||
|
35410
|
35410
35410-52191 Body Assy, Transmission Valve[06.2002 - 11.2002] NCP51,55,58,59..4FC |
35410-52191 |
US $1,642.37 |
||
|
35410
|
35410
35410-52061 Body Assy, Transmission Valve[11.2002 - 03.2003] NCP51,55,58,59..4FC |
35410-52061 |
US $1,557.92 |
||
| replacements | |||||
|
35410
|
35410
35330-0W021 Strainer Assy, Valve Body Oil[11.2002 - 03.2003] NCP51,55,58,59..4FC |
35330-0W021 |
from US $51.07 |
||
|
35410
|
35410
82125-52100 Wire, Transmission[11.2002 - 03.2003] NCP51,55,58,59..4FC |
82125-52100 |
US $36.98 |
||
|
35410
|
35410
35410-52191 Body Assy, Transmission Valve[11.2002 - 03.2003] NCP51,55,58,59..4FC |
35410-52191 |
US $1,642.37 |
||
|
35410
|
35410
35410-52062 Body Assy, Transmission Valve[03.2003 - 08.2005] NCP51,52,55,58,59..4FC |
35410-52062 |
US $1,557.92 |
||
| replacements | |||||
|
35410
|
35410
35330-0W021 Strainer Assy, Valve Body Oil[03.2003 - 08.2005] NCP51,52,55,58,59..4FC |
35330-0W021 |
from US $51.07 |
||
|
35410
|
35410
82125-52100 Wire, Transmission[03.2003 - 08.2005] NCP51,52,55,58,59..4FC |
82125-52100 |
US $36.98 |
||
|
35410
|
35410
35410-52191 Body Assy, Transmission Valve[03.2003 - 08.2005] NCP51,52,55,58,59..4FC |
35410-52191 |
US $1,642.37 |
||
|
35410
|
35410
35410-52190 Body Assy, Transmission Valve[08.2005 - 01.2013] NCP51,52,55,58,59..4FC |
35410-52190 |
US $1,295.84 |
||
| replacements | |||||
|
35410
|
35410
35330-0W021 Strainer Assy, Valve Body Oil[08.2005 - 01.2013] NCP51,52,55,58,59..4FC |
35330-0W021 |
from US $51.07 |
||
|
35410
|
35410
35410-52191 Body Assy, Transmission Valve[08.2005 - 01.2013] NCP51,52,55,58,59..4FC |
35410-52191 |
US $1,642.37 |
||
|
35410
|
35410
35410-52191 Body Assy, Transmission Valve[01.2013 - 09.2014] NCP51,52,55,58,59..4FC |
35410-52191 |
US $1,642.37 |
||
|
35418
|
35418
35418-52020 Valve, Manual[06.2002 -] NCP51,52,55,58,59..4FC |
35418-52020 |
US $23.73 |
||
|
35423
|
35423
35403-52020 Piston, B-2 Accumulator[06.2002 -] NCP51,52,55,58,59..4FC |
35403-52020 |
US $10.05 |
||
|
35423B
|
35423B
90301-20010 Ring, O (For B-2 Accumulator Piston)[06.2002 -] NCP51,52,55,58,59..4FC 上側 |
90301-20010 |
US $2.62 |
||
|
35423B
|
35423B
90301-29011 Ring (For Accumulator Piston No.1)[06.2002 -] NCP51,52,55,58,59..4FC 下側 |
90301-29011 |
from US $2.62 |
||
|
35423E
|
35423E
90501-20158 Spring, Compression (For B-2 Accmulator Piston)[06.2002 -] NCP51,52,55,58,59..4FC |
90501-20158 |
US $2.04 |
||
|
35425A
|
35425A
35405-52020 Piston, C-2 Accumulator[06.2002 -] NCP51,52,55,58,59..4FC |
35405-52020 |
US $10.63 |
||
|
35425B
|
35425B
90501-24036 Spring, Compression (For C-2 Accumulator Piston)[06.2002 -] NCP51,52,55,58,59..4FC |
90501-24036 |
from US $2.33 |
||
|
35425C
|
35425C
90301-22010 Ring, O (For C-2 Accumulator Piston)[06.2002 -] NCP51,52,55,58,59..4FC 下側 |
90301-22010 |
US $2.18 |
||
|
35425C
|
35425C
90301-35004 Ring, O (For C-2 Accumulator Piston)[06.2002 -] NCP51,52,55,58,59..4FC 上側 |
90301-35004 |
US $2.18 |
||
|
35426D
|
35426D
35426-52020 Piston, C-3 Accumulator[06.2002 -] NCP51,52,55,58,59..4FC |
35426-52020 |
US $26.50 |
||
|
35426E
|
35426E
90501-25057 Spring, Compression (For C-3 Accumulator Piston)[06.2002 -] NCP51,52,55,58,59..4FC |
90501-25057 |
US $2.33 |
||
|
35426F
|
35426F
90301-24016 Ring, O (For C-3 Accumulator Piston)[06.2002 -] NCP51,52,55,58,59..4FC 上側 |
90301-24016 |
US $2.18 |
||
|
35426F
|
35426F
90301-29011 Ring (For Accumulator Piston No.1)[06.2002 -] NCP51,52,55,58,59..4FC 下側 |
90301-29011 |
from US $2.62 |
||
|
35599
|
35599
35599-52010 Cover, Manual Detent Spring[06.2002 -] NCP51,52,55,58,59..4FC |
35599-52010 |
US $3.06 |
||
|
91511H0620
|
91511H0620
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.97 |
||
|
9010506072
|
9010506072
90105-06072 New Genuine Part |
90105-06072 |
US $1.46 |
||
|
9010506273
|
9010506273
90105-06273 New Genuine Part |
90105-06273 |
US $1.75 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9155180645
|
9155180645
91551-80645 BOLT FLANGE |
91551-80645 |
US $1.65 |
||
|
9155180655
|
9155180655
91551-80655 New Genuine Part |
91551-80655 |
US $1.02 |
||
|
9155180670
|
9155180670
91551-80670 Bolt(For Cylinder Head Cover) |
91551-80670 |
US $1.43 |
||
