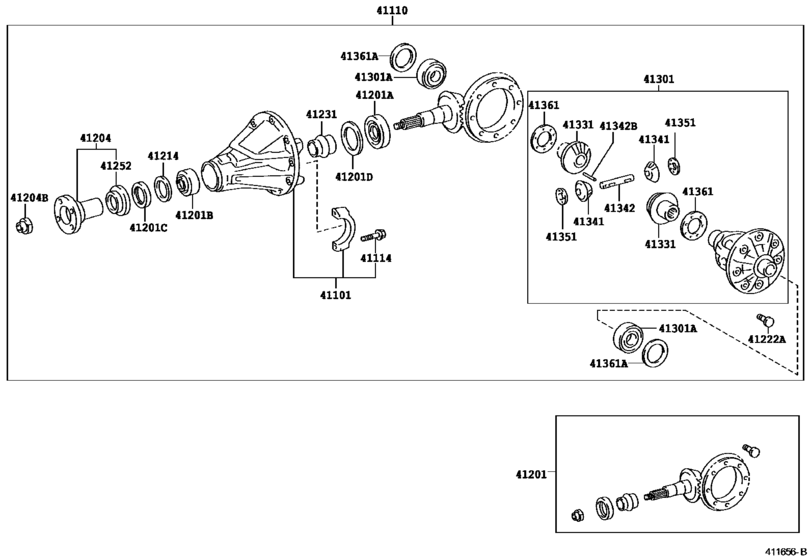

Rear Axle Housing & Differential ([06.2002 - ] (0206- )NCP55,59) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2002 - 2013
- Sales region
- Japan
- Frame
- NCP59
- grade
- TX
- body
- WG
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- SUCCEED
- From
- 06.2002
- To
- 10.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- SUCCEED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-16011 Carrier Sub-Assy, Differential, Rear[06.2002 -] NCP55,59 |
41101-16011 |
US $294.11 |
||
|
41110
|
41110
41110-16141 Carrier Assy, Differential, Rear[06.2002 - 09.2014] NCP55,59 ＊ＦＧＲ＝４１：１８＝２．２７７ |
41110-16141 |
US $1,128.80 |
||
|
41114
|
41114
41114-16010 Bolt, Differential Bearing Cap[06.2002 -] NCP55,59 |
41114-16010 |
US $3.06 |
||
|
41201
|
41201
41201-19616 Final Gear Kit, Differential, Rear[06.2002 -] NCP55,59 ＊ＦＧＲ＝４１：１８＝２．２７７ |
41201-19616 |
US $439.71 |
||
|
41201A
|
41201A
90366-40058 Bearing (For Rear Drive Pinion Rear)[06.2002 -] NCP55,59 |
90366-40058 |
US $39.17 |
||
|
41201B
|
41201B
90366-30047 Bearing (For Rear Drive Pinion Front)[06.2002 -] NCP55,59 |
90366-30047 |
US $26.75 |
||
|
41201C
|
41201C
90311-38015 Seal, Oil (For Rear Differential Carrier)[06.2002 -] NCP55,59 |
90311-38015 |
from US $5.12 |
||
|
41201D
|
41201D
90564-59026 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．２６，マーク Ａ |
90564-59026 |
US $2.48 |
||
|
41201D
|
41201D
90564-59027 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．２８，マーク Ｂ |
90564-59027 |
US $2.48 |
||
|
41201D
|
41201D
90564-59028 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．３０，マーク Ｃ |
90564-59028 |
US $2.48 |
||
|
41201D
|
41201D
90564-59029 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．３２，マーク Ｄ |
90564-59029 |
US $2.48 |
||
|
41201D
|
41201D
90564-59030 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．３４，マーク Ｅ |
90564-59030 |
US $2.48 |
||
|
41201D
|
41201D
90564-59031 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．３６，マーク Ｆ |
90564-59031 |
US $2.48 |
||
|
41201D
|
41201D
90564-59032 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．３８，マーク Ｇ |
90564-59032 |
US $2.48 |
||
|
41201D
|
41201D
90564-59033 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．４０，マーク Ｈ |
90564-59033 |
US $2.48 |
||
|
41201D
|
41201D
90564-59034 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．４２，マーク Ｊ |
90564-59034 |
US $2.48 |
||
|
41201D
|
41201D
90564-59035 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．４４，マーク Ｋ |
90564-59035 |
US $2.48 |
||
|
41201D
|
41201D
90564-59036 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．４６，マーク Ｌ |
90564-59036 |
US $2.48 |
||
|
41201D
|
41201D
90564-59037 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．４８，マーク Ｍ |
90564-59037 |
US $2.48 |
||
|
41201D
|
41201D
90564-59038 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．５０，マーク Ｎ |
90564-59038 |
US $2.48 |
||
|
41201D
|
41201D
90564-59039 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．５２，マーク Ｐ |
90564-59039 |
US $2.48 |
||
|
41201D
|
41201D
90564-59040 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．５４，マーク Ｑ |
90564-59040 |
US $2.48 |
||
|
41201D
|
41201D
90564-59041 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．５６，マーク Ｒ |
90564-59041 |
US $2.48 |
||
|
41201D
|
41201D
90564-59042 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．５８，マーク Ｓ |
90564-59042 |
US $3.20 |
||
|
41201D
|
41201D
90564-59043 Shim, Pinion Bearing Cage[06.2002 -] NCP55,59 厚さ＝２．６０，マーク Ｔ |
90564-59043 |
US $3.20 |
||
|
41204
|
41204
41204-48020 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[06.2002 -] NCP55,59 |
41204-48020 |
US $50.01 |
||
|
41204B
|
41204B
90179-18020 Nut (For Transfer Gear)[06.2002 -] NCP55,59 外径＝３３．５ |
90179-18020 |
US $3.04 |
||
|
41214
|
41214
41214-28010 Slinger, Rear Differential Drive Pinion Oil[06.2002 -] NCP55,59 |
41214-28010 |
US $4.19 |
||
|
41222A
|
41222A
90105-11034 Bolt (For Transfer Gear )[06.2002 -] NCP55,59 |
90105-11034 |
US $1.46 |
||
|
41231
|
41231
41231-16030 Spacer, Rear Differential Drive Pinion Bearing[06.2002 -] NCP55,59 |
41231-16030 |
US $10.77 |
||
|
41252
|
41252
41252-48020 Deflector, Dust (For Rear Differential)[06.2002 -] NCP55,59 |
41252-48020 |
US $6.29 |
||
|
41301
|
41301
41301-16031 Case Sub-Assy, Rear Differential[06.2002 -] NCP55,59 |
41301-16031 |
US $349.44 |
||
|
41301A
|
41301A
90368-34011 Bearing(For Rear Differential Case)[06.2002 -] NCP55,59 |
90368-34011 |
from US $16.25 |
||
|
41331
|
41331
41331-16020 Gear, Rear Differential Side[06.2002 -] NCP55,59 |
41331-16020 |
US $35.96 |
||
|
41341
|
41341
41341-10030
Pinion, Rear Differential
[06.2002 - 10.2008] NCP55,59 |
41341-10030 |
— | ||
|
41341
|
41341
41341-48050 Pinion, Rear Differential[10.2008 -] NCP55,59 |
41341-48050 |
US $20.82 |
||
|
41342
|
41342
41342-10050 Shaft, Rear Differential Pinion[06.2002 -] NCP55,59 |
41342-10050 |
US $9.96 |
||
|
41342B
|
41342B
90250-04089 Pin, Straight (For Rear Differential Pinion Shaft)[06.2002 -] NCP55,59 |
90250-04089 |
US $1.31 |
||
|
41351
|
41351
41351-10030 Washer, Rear Differential Pinion Thrust[06.2002 -] NCP55,59 |
41351-10030 |
US $1.46 |
||
|
41361
|
41361
41361-12010 Washer, Rear Differential Side Gear Thrust, No.1[06.2002 -] NCP55,59 厚さ＝１．５０ |
41361-12010 |
US $4.08 |
||
|
41361
|
41361
41361-12020 Washer, Rear Differential Side Gear Thrust, No.1[06.2002 -] NCP55,59 厚さ＝１．５５ |
41361-12020 |
US $3.35 |
||
|
41361
|
41361
41361-12030 Washer, Rear Differential Side Gear Thrust, No.1[06.2002 -] NCP55,59 厚さ＝１．６０ |
41361-12030 |
US $3.35 |
||
|
41361
|
41361
41361-12040 Washer, Rear Differential Side Gear Thrust, No.1[06.2002 -] NCP55,59 厚さ＝１．６５ |
41361-12040 |
US $3.35 |
||
|
41361
|
41361
41361-12050 Washer, Rear Differential Side Gear Thrust, No.1[06.2002 -] NCP55,59 厚さ＝１．７０ |
41361-12050 |
US $3.35 |
||
|
41361
|
41361
41361-12060 Washer, Rear Differential Side Gear Thrust, No.1[06.2002 -] NCP55,59 厚さ＝１．７５ |
41361-12060 |
US $3.35 |
||
|
41361A
|
41361A
90564-51001 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．６４，マーク ６４ |
90564-51001 |
US $1.49 |
||
|
41361A
|
41361A
90564-51002 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．６７，マーク ６７ |
90564-51002 |
US $2.48 |
||
|
41361A
|
41361A
90564-51003 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．７０，マーク ７０ |
90564-51003 |
US $2.48 |
||
|
41361A
|
41361A
90564-51004 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．７３，マーク ７３ |
90564-51004 |
US $2.48 |
||
|
41361A
|
41361A
90564-51005 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．７６，マーク ７６ |
90564-51005 |
US $2.48 |
||
|
41361A
|
41361A
90564-51006 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．７９，マーク ７９ |
90564-51006 |
US $2.48 |
||
|
41361A
|
41361A
90564-51007 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．８２，マーク ８２ |
90564-51007 |
US $2.48 |
||
|
41361A
|
41361A
90564-51008 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．８５，マーク ８５ |
90564-51008 |
US $2.48 |
||
|
41361A
|
41361A
90564-51009 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．８８，マーク ８８ |
90564-51009 |
US $2.48 |
||
|
41361A
|
41361A
90564-51010 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．９１，マーク ９１ |
90564-51010 |
US $2.48 |
||
|
41361A
|
41361A
90564-51011 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．９４，マーク ９４ |
90564-51011 |
US $2.48 |
||
|
41361A
|
41361A
90564-51012 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．９７，マーク ９７ |
90564-51012 |
US $2.48 |
||
|
41361A
|
41361A
90564-51013 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．００，マーク ００ |
90564-51013 |
US $2.48 |
||
|
41361A
|
41361A
90564-51014 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．０３，マーク ０３ |
90564-51014 |
US $2.48 |
||
|
41361A
|
41361A
90564-51015 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．０６，マーク ０６ |
90564-51015 |
US $2.48 |
||
|
41361A
|
41361A
90564-51016 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．０９，マーク ０９ |
90564-51016 |
US $2.48 |
||
|
41361A
|
41361A
90564-51017 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．１２，マーク １２ |
90564-51017 |
US $2.48 |
||
|
41361A
|
41361A
90564-51018 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．１５，マーク １５ |
90564-51018 |
US $2.48 |
||
|
41361A
|
41361A
90564-51019 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．１８，マーク １８ |
90564-51019 |
US $2.48 |
||
|
41361A
|
41361A
90564-51020 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．２１，マーク ２１ |
90564-51020 |
US $2.48 |
||
|
41361A
|
41361A
90564-51021 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．２４，マーク ２４ |
90564-51021 |
US $2.48 |
||
|
41361A
|
41361A
90564-51022 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．２７，マーク ２７ |
90564-51022 |
US $2.48 |
||
|
41361A
|
41361A
90564-51023 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．３０，マーク ３０ |
90564-51023 |
US $2.48 |
||
|
41361A
|
41361A
90564-51024 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．３３，マーク ３３ |
90564-51024 |
US $2.48 |
||
|
41361A
|
41361A
90564-51025 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．３６，マーク ３６ |
90564-51025 |
US $2.48 |
||
|
41361A
|
41361A
90564-51026 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．３９，マーク ３９ |
90564-51026 |
US $2.48 |
||
|
41361A
|
41361A
90564-51027 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝３．４２，マーク ４２ |
90564-51027 |
US $2.48 |
||
|
41361A
|
41361A
90564-51035 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．５２，マーク ５２ |
90564-51035 |
US $2.48 |
||
|
41361A
|
41361A
90564-51036 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．５５，マーク ５５ |
90564-51036 |
US $2.48 |
||
|
41361A
|
41361A
90564-51037 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．５８，マーク ５８ |
90564-51037 |
US $2.48 |
||
|
41361A
|
41361A
90564-51038 Shim(For Rear Differential Side Gear Thrust)[06.2002 -] NCP55,59 厚さ＝２．６１，マーク ６１ |
90564-51038 |
US $2.48 |
