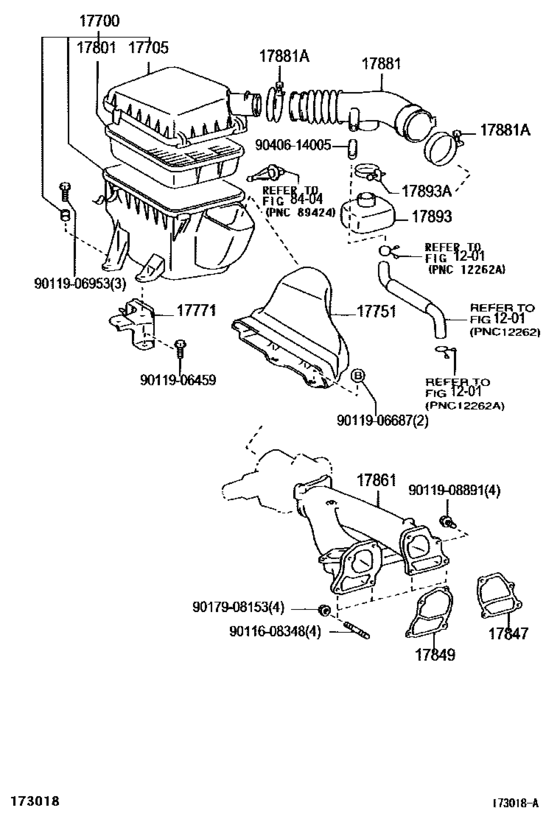

Air Cleaner ([04.2001 - ] (0104- )) Diagram Toyota PROGRES
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZFSE
- Model
- PROGRES
- From
- 04.2001
- To
- 06.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- PROGRES
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-46460 Cleaner Assy, Air[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
17700-46460 |
US $336.34 |
||
|
17705
|
17705
17705-46160
Cap Sub-Assy, Air Cleaner
[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
17705-46160 |
— | ||
|
17751
|
17751
17751-46180 Inlet, Air Cleaner, No.1[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
17751-46180 |
US $133.95 |
||
|
17771
|
17771
17771-46020 Bracket, Air Cleaner Inlet Duct[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
17771-46020 |
US $9.90 |
||
|
17801
|
17801
17801-46090 Element Sub-Assy, Air Cleaner Filter[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
17801-46090 |
US $47.12 |
||
|
17847
|
17847
17847-46010 Gasket, Intake Air Connector, No.2[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
17847-46010 |
US $10.88 |
||
|
17849
|
17849
17849-46040 Gasket, Intake Air Connector[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
17849-46040 |
US $10.88 |
||
|
17861
|
17861
17860-46170 Connector, Intake Air[04.2001 -] 1JZFSE..JCG10,15 |
17860-46170 |
US $406.22 |
||
|
17881
|
17881
17881-46350
Hose, Air Cleaner, No.1
[04.2001 -] 1JZFSE,2JZFSE..JCG10,11 |
17881-46350 |
— | ||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
96111-10800 |
from US $2.56 |
||
|
17893
|
17893
17893-46170 Resonator, Intake Air[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
17893-46170 |
US $32.32 |
||
|
17893A
|
17893A
96111-10560 Clamp Or Clip, Hose(For Radiator Outlet No.1)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
96111-10560 |
US $3.68 |
||
|
9011608348
|
9011608348
90116-08348 Bolt, Stud(For Water Outlet) |
90116-08348 |
from US $1.65 |
||
|
9011906459
|
9011906459
90119-06459 New Genuine Part |
90119-06459 |
US $1.51 |
||
|
9011906687
|
9011906687
90119-06687 BOLT WWASHER |
90119-06687 |
US $1.92 |
||
|
9011906953
|
9011906953
90119-06953 BOLT WWASHER |
90119-06953 |
from US $0.99 |
||
|
9011908891
|
9011908891
90119-08891 BOLT |
90119-08891 |
US $1.92 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9040614005
|
9040614005
90406-14005 New Genuine Part |
90406-14005 |
US $4.22 |
