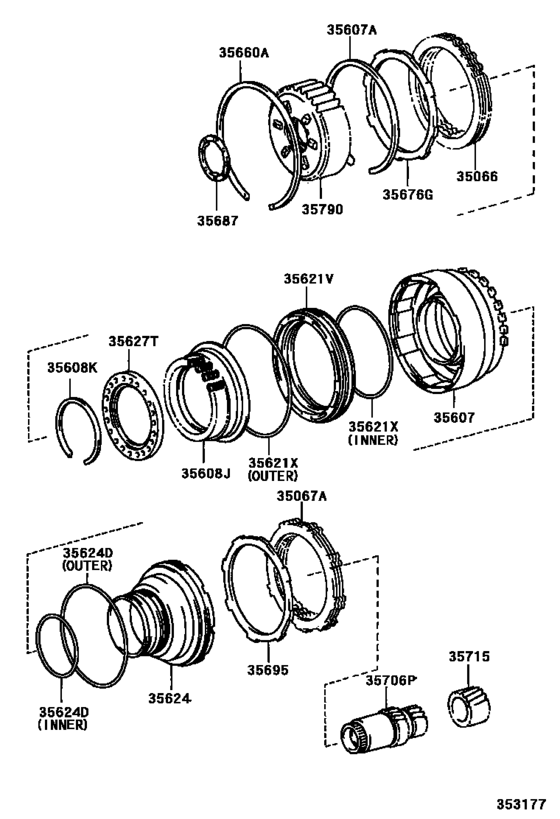

Center Support & Planetary Sun Gear (Atm) ([04.2001 - ] A650E (0104- )JCG10,11) Diagram Toyota PROGRES
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZFSE
- Model
- PROGRES
- From
- 04.2001
- To
- 06.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- PROGRES
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35066
|
35066
35066-22010 Disc Set, 2Nd Brake[04.2001 -] JCG10 |
35066-22010 |
US $321.78 |
||
|
35067A
|
35067A
35067-22010 Disc Set, 3Rd Brake, No.2[04.2001 -] JCG10 |
35067-22010 |
US $93.18 |
||
|
35607
|
35607
35607-30010 Drum Sub-Assy, Brake, No.1 & No.2[04.2001 -] JCG10,11 |
35607-30010 |
US $157.25 |
||
|
35607A
|
35607A
90520-99020 Ring, Snap, No.1 (For Brake Drum)[04.2001 -] JCG10,11 |
90520-99020 |
US $5.53 |
||
|
35608J
|
35608J
35608-30030
Spring Sub-Assy, Brake Piston Return
[04.2001 -] JCG10,11 |
35608-30030 |
— | ||
|
35608K
|
35608K
90520-80001 Ring, Snap (For Brake Piston Return Spring)[04.2001 -] JCG10,11 |
90520-80001 |
US $4.08 |
||
|
35621V
|
35621V
35621-30030
Piston, Brake, No.1
[04.2001 -] JCG10 |
35621-30030 |
— | ||
|
35621X
|
35621X
90301-99089 Ring, O (For Brake Piston No.1)[04.2001 -] JCG10,11 内側 |
90301-99089 |
US $4.37 |
||
|
35621X
|
35621X
90301-99092 Ring, O (For Brake Piston No.1)[04.2001 -] JCG10,11 外側 |
90301-99092 |
US $4.37 |
||
|
35624
|
35624
35601-50010 Piston, 2Nd Brake[04.2001 -] JCG10,11 |
35601-50010 |
US $80.08 |
||
|
35624D
|
35624D
90301-80001 Ring, O (For Brake Piston No.1)[04.2001 -] JCG10,11 内側 |
90301-80001 |
US $3.58 |
||
|
35624D
|
35624D
90301-99087 Ring, O (For Overdrive Brake Piston)[04.2001 -] JCG10,11 外側 |
90301-99087 |
from US $2.62 |
||
|
35627T
|
35627T
35627-30020
Seat, Brake Return Spring
[04.2001 -] JCG10,11 |
35627-30020 |
— | ||
|
35660A
|
35660A
90520-99023 Ring, Snap, No.2 (For Brake Drum)[04.2001 -] JCG10,11 |
90520-99023 |
US $5.53 |
||
|
35676G
|
35676G
35676-30180 Flange, Brake, No.1[04.2001 -] JCG10 厚さ＝３．６ |
35676-30180 |
US $31.45 |
||
|
35676G
|
35676G
35676-30190 Flange, Brake, No.1[04.2001 -] JCG10,11 厚さ＝３．７ |
35676-30190 |
US $31.45 |
||
|
35676G
|
35676G
35676-30200 Flange, Brake, No.1[04.2001 -] JCG10,11 厚さ＝３．８ |
35676-30200 |
US $31.45 |
||
|
35676G
|
35676G
35676-30210 Flange, Brake, No.1[04.2001 -] JCG10,11 厚さ＝３．９ |
35676-30210 |
US $31.45 |
||
|
35676G
|
35676G
35676-30220 Flange, Brake, No.1[04.2001 -] JCG10,11 厚さ＝４．０ |
35676-30220 |
US $31.45 |
||
|
35676G
|
35676G
35676-30230 Flange, Brake, No.1[04.2001 -] JCG10,11 厚さ＝４．１ |
35676-30230 |
US $31.45 |
||
|
35687
|
35687
35687-30010 Washer, Clutch Drum Thrust, No.3[04.2001 -] JCG10,11 |
35687-30010 |
US $5.24 |
||
|
35695
|
35695
35695-30010 Plate, Brake, No.5[04.2001 -] JCG10,11 厚さ＝２．１ |
35695-30010 |
US $40.77 |
||
|
35695
|
35695
35695-30020 Plate, Brake, No.5[04.2001 -] JCG10,11 厚さ＝２．３ |
35695-30020 |
US $40.77 |
||
|
35695
|
35695
35695-30030 Plate, Brake, No.5[04.2001 -] JCG10,11 厚さ＝２．５ |
35695-30030 |
US $40.77 |
||
|
35695
|
35695
35695-30040 Plate, Brake, No.5[04.2001 -] JCG10,11 厚さ＝２．７ |
35695-30040 |
US $40.77 |
||
|
35695
|
35695
35695-30050 Plate, Brake, No.5[04.2001 -] JCG10,11 厚さ＝２．９ |
35695-30050 |
US $40.77 |
||
|
35695
|
35695
35695-30060 Plate, Brake, No.5[04.2001 -] JCG10,11 厚さ＝３．１ |
35695-30060 |
US $40.77 |
||
|
35706P
|
35706P
35706-30090 Gear Sub-Assy, Front Planetary Sun[04.2001 -] JCG10,11 |
35706-30090 |
US $286.83 |
||
|
35715
|
35715
35715-30030 Gear, Rr Planetary Sun[04.2001 -] JCG10,11 |
35715-30030 |
US $64.65 |
||
|
35790
|
35790
35790-30080 Clutch Assy, 1 Way[04.2001 -] JCG10,11 |
35790-30080 |
US $189.28 |
