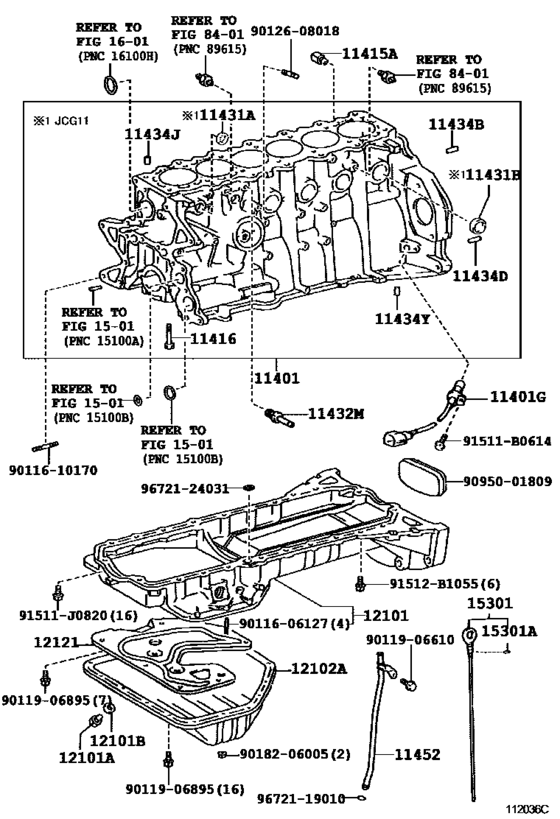

Cylinder Block ([04.2001 - ] (0104- )1JZFSE,2JZFSE..JCG10,11) Diagram Toyota PROGRES
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZFSE
- Model
- PROGRES
- From
- 04.2001
- To
- 06.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- PROGRES
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-49725 Block Sub-Assy, Cylinder[04.2001 -] 1JZFSE..JCG10 |
11401-49725 |
US $3,013.92 |
||
| replacement | |||||
|
11401
|
11401
11401-49726 Block Sub-Assy, Cylinder[04.2001 -] 1JZFSE..JCG10 |
11401-49726 |
US $3,013.92 |
||
|
11401G
|
11401G
90919-05046 Sensor, Crank Position[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90919-05046 |
US $94.35 |
||
|
11415A
|
11415A
90910-09102 Plug, Water Drain Cock(For Cylinder Block)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90910-09102 |
US $8.21 |
||
|
11416
|
11416
90910-02104 Bolt(For Crankshaft Bearing Cap Set)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90910-02104 |
US $4.96 |
||
|
11432M
|
11432M
90404-53064 Union(For Cylinder Block)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90404-53064 |
US $5.53 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[04.2001 -] 1JZFSE,2JZFSE..JCG1# 長さ＝２２，外径＝１０ |
90250-10192 |
from US $0.99 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[04.2001 -] 1JZFSE,2JZFSE..JCG1# 長さ＝１４，外径＝６ |
90250-06003 |
from US $1.05 |
||
|
11434J
|
11434J
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90253-14003 |
from US $1.33 |
||
|
11434Y
|
11434Y
90250-10192 Pin, Straight(For Timing Gear Cover Set)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90250-10192 |
from US $0.99 |
||
|
11452
|
11452
11452-46010
Guide, Oil Level Gage
[04.2001 -] 1JZFSE,2JZFSE..JCG10,11 |
11452-46010 |
— | ||
|
12101
|
12101
12111-46062 Pan Sub-Assy, Oil[04.2001 -] 1JZFSE,2JZFSE..JCG10,11 |
12111-46062 |
US $767.31 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[04.2001 - 06.2007] 1JZFSE,2JZFSE..JCG1# |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[04.2001 - 06.2007] 1JZFSE,2JZFSE..JCG1# |
90341-T0004 |
US $4.49 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90430-12031 |
from US $0.96 |
||
|
12102A
|
12102A
12102-46040 Pan Sub-Assy, Oil, No.2[04.2001 -] 1JZFSE,2JZFSE..JCG10,11 |
12102-46040 |
US $187.20 |
||
|
12121
|
12121
12121-46010 Plate, Oil Pan Baffle, No.1[04.2001 - 06.2007] 1JZFSE,2JZFSE..JCG10,11 |
12121-46010 |
US $61.56 |
||
|
15301
|
15301
15301-46023 Gage Sub-Assy, Oil Level[04.2001 -] 1JZFSE,2JZFSE..JCG10,11 |
15301-46023 |
from US $14.04 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[04.2001 -] 1JZFSE,2JZFSE..JCG10,11 |
96741-19005 |
from US $2.24 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.05 |
||
|
91512B1055
|
91512B1055
91512-B1055 BOLT FLANGE |
91512-B1055 |
from US $3.52 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $1.28 |
||
|
9011610170
|
9011610170
90116-10170 BOLT STUD |
90116-10170 |
US $6.56 |
||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $1.92 |
||
|
9011906895
|
9011906895
90119-06895
BOLT WWASHER
|
90119-06895 |
— | ||
| replacement | |||||
|
9011906895
|
9011906895
90119-06755 BOLT WWASHER |
90119-06755 |
US $1.12 |
||
|
9012608018
|
9012608018
90126-08018 Bolt, Stud(For Egr Valve) |
90126-08018 |
US $7.34 |
||
|
9018206005
|
9018206005
90182-06005 NUT W-WASHER |
90182-06005 |
US $1.44 |
||
|
9095001809
|
9095001809
90950-01809 Plug, Semi Circular(For Chain Cover No.2) |
90950-01809 |
US $8.32 |
||
|
9672119010
|
9672119010
96721-19010 Ring, O(For Oil Level Gage Guide) |
96721-19010 |
from US $1.64 |
||
|
9672124031
|
9672124031
96721-24031 Ring, O |
96721-24031 |
from US $2.26 |
||
| replacement | |||||
|
9672124031
|
9672124031
90301-A0032 Ring, O(For Oil Strainer) |
90301-A0032 |
US $7.32 |
||
