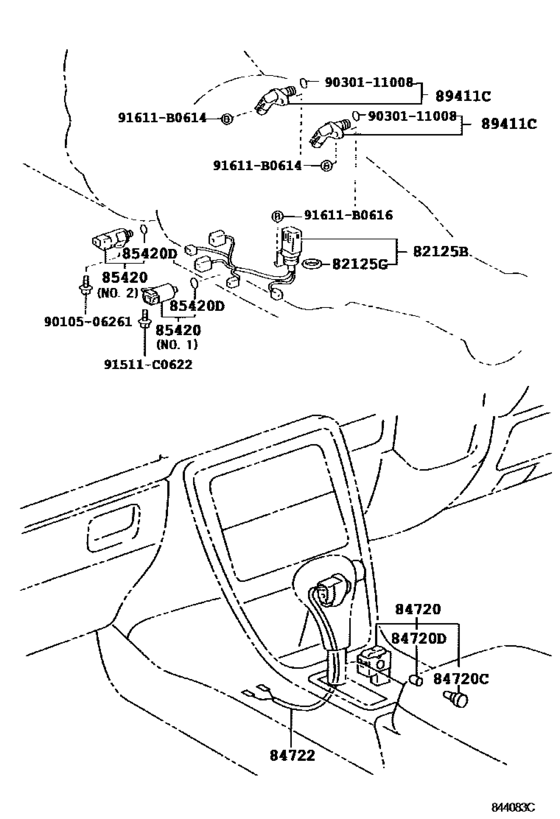

Overdrive & Electronic Controlled Transmission ([04.2001 - ] (0104- )JCG10) Diagram Toyota PROGRES
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZFSE
- Model
- PROGRES
- From
- 04.2001
- To
- 06.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- PROGRES
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125B
|
82125B
82125-30460 Wire, Transmission[04.2001 - 06.2007] JCG10 |
82125-30460 |
US $46.66 |
||
|
82125G
|
82125G
96721-24018 Ring, O[04.2001 - 06.2007] JCG1# |
96721-24018 |
from US $3.96 |
||
|
84720
|
84720
84720-51010 Switch Assy, Pattern Select[04.2001 - 06.2007] JCG1# |
84720-51010 |
US $61.44 |
||
|
84720C
|
84720C
84999-10710 Bulb, Throttle Position Switch[04.2001 - 06.2007] JCG1# １４Ｖ ０．５６Ｗ |
84999-10710 |
from US $6.32 |
||
|
84720D
|
84720D
84998-10670 Cap, Throttle Position Switch Bulb[04.2001 - 06.2007] JCG1# |
84998-10670 |
US $3.68 |
||
|
84722
|
84722
84722-51010-C0 Switch, Transmission Control[04.2001 - 06.2007] JCG1# BLACK,TRIM2# |
84722-51010-C0 |
US $49.65 |
||
|
84722
|
84722
84722-51010-E0 Switch, Transmission Control[04.2001 - 06.2007] JCG1# SANDAL WOOD,TRIM0# |
84722-51010-E0 |
US $49.65 |
||
|
85420
|
85420
35250-50010 Solenoid Assy, Transmission, No.3[08.2001 - 06.2007] JCG10 ＮＯ．１ |
35250-50010 |
US $211.41 |
||
|
85420
|
85420
35250-50030 Valve, Solenoid(S4)[08.2001 - 06.2007] JCG10 ＮＯ．２ |
35250-50030 |
US $192.96 |
||
|
85420
|
85420
85420-30240 Valve, Solenoid(S2)[04.2001 - 08.2001] JCG10 ＮＯ．１ |
85420-30240 |
US $196.56 |
||
| replacement | |||||
|
85420
|
85420
35250-50010 Solenoid Assy, Transmission, No.3[04.2001 - 08.2001] JCG10 ＮＯ．１ |
35250-50010 |
US $211.41 |
||
|
85420
|
85420
85420-30260
Valve, Solenoid(S4)
[04.2001 - 08.2001] JCG10 ＤＥＮＳＯ，ＮＯ．２ |
85420-30260 |
— | ||
| replacement | |||||
|
85420
|
85420
35250-50030 Valve, Solenoid(S4)[04.2001 - 08.2001] JCG10 ＤＥＮＳＯ，ＮＯ．２ |
35250-50030 |
US $192.96 |
||
|
85420
|
85420
85420-30270
Valve, Solenoid(S4)
[04.2001 - 08.2001] JCG10 ＡＩＳＩＮ，ＮＯ．２ |
85420-30270 |
— | ||
| replacement | |||||
|
85420
|
85420
35250-50030 Valve, Solenoid(S4)[04.2001 - 08.2001] JCG10 ＡＩＳＩＮ，ＮＯ．２ |
35250-50030 |
US $192.96 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[04.2001 - 06.2007] JCG10,15 |
90301-06004 |
from US $1.92 |
||
|
89411C
|
89411C
89411-50010 Sensor, Speed[04.2001 - 06.2007] JCG1# |
89411-50010 |
from US $67.18 |
||
|
91511C0622
|
91511C0622
91511-C0622 Strainer Bolt |
91511-C0622 |
US $0.96 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
|
9010506261
|
9010506261
90105-06261 Bolt(For Manual Detent Spring) |
90105-06261 |
US $0.73 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.96 |
||
