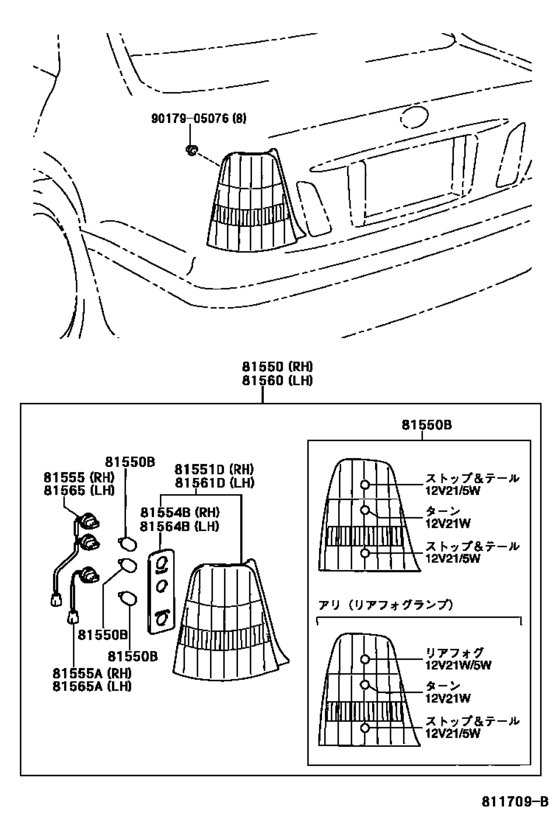

Rear Combination Lamp ([04.2001 - ] (0104- )) Diagram Toyota PROGRES
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZFSE
- Model
- PROGRES
- From
- 04.2001
- To
- 06.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- PROGRES
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-51060 Lamp Assy, Rear Combination, Rh[04.2001 - 12.2005] JCG1# |
81550-51060 |
US $416.42 |
||
|
81550
|
81550
81550-51070 Lamp Assy, Rear Combination, Rh[04.2001 - 12.2005] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81550-51070 |
US $416.42 |
||
|
81550
|
81550
81550-51160 Lamp Assy, Rear Combination, Rh[12.2005 - 06.2007] JCG1# |
81550-51160 |
US $417.87 |
||
|
81550
|
81550
81550-51170 Lamp Assy, Rear Combination, Rh[12.2005 - 06.2007] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81550-51170 |
US $417.87 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[04.2001 - 06.2007] JCG1# １２Ｖ ２１Ｗ |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[04.2001 - 06.2007] JCG1# １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.65 |
||
|
81551D
|
81551D
81551-51060 Lens & Body, Rear Combination Lamp, Rh[04.2001 - 11.2005] JCG1# |
81551-51060 |
US $374.19 |
||
|
81551D
|
81551D
81551-51070 Lens & Body, Rear Combination Lamp, Rh[04.2001 - 11.2005] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81551-51070 |
US $374.19 |
||
|
81551D
|
81551D
81551-51160 Lens & Body, Rear Combination Lamp, Rh[12.2005 -] JCG1# |
81551-51160 |
US $374.19 |
||
|
81551D
|
81551D
81551-51170 Lens & Body, Rear Combination Lamp, Rh[12.2005 -] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81551-51170 |
US $374.19 |
||
|
81554B
|
81554B
81554-51060 Gasket, Rear Combination Lamp Body, No.2 Rh[04.2001 - 11.2005] JCG1# |
81554-51060 |
US $17.91 |
||
|
81555
|
81555
81555-51010 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[04.2001 - 11.2005] JCG1# |
81555-51010 |
US $27.37 |
||
|
81555
|
81555
81555-51020 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[04.2001 - 11.2005] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81555-51020 |
US $27.37 |
||
|
81555
|
81555
81555-51160 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[12.2005 -] JCG1# |
81555-51160 |
US $33.20 |
||
|
81555A
|
81555A
81559-51010 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[04.2001 - 11.2005] JCG1# |
81559-51010 |
US $21.55 |
||
|
81560
|
81560
81560-51060 Lamp Assy, Rear Combination, Lh[04.2001 - 12.2005] JCG1# |
81560-51060 |
US $416.42 |
||
|
81560
|
81560
81560-51070 Lamp Assy, Rear Combination, Lh[04.2001 - 12.2005] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81560-51070 |
US $416.42 |
||
|
81560
|
81560
81560-51160 Lamp Assy, Rear Combination, Lh[12.2005 - 06.2007] JCG1# |
81560-51160 |
US $417.87 |
||
|
81560
|
81560
81560-51170 Lamp Assy, Rear Combination, Lh[12.2005 - 06.2007] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81560-51170 |
US $417.87 |
||
|
81561D
|
81561D
81561-51060 Lens & Body, Rear Combination Lamp, Lh[04.2001 - 11.2005] JCG1# |
81561-51060 |
US $374.19 |
||
|
81561D
|
81561D
81561-51070 Lens & Body, Rear Combination Lamp, Lh[04.2001 - 11.2005] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81561-51070 |
US $374.19 |
||
|
81561D
|
81561D
81561-51160 Lens & Body, Rear Combination Lamp, Lh[12.2005 -] JCG1# |
81561-51160 |
US $374.19 |
||
|
81561D
|
81561D
81561-51170 Lens & Body, Rear Combination Lamp, Lh[12.2005 -] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81561-51170 |
US $374.19 |
||
|
81564B
|
81564B
81554-51060 Gasket, Rear Combination Lamp Body, No.2 Rh[04.2001 - 11.2005] JCG1# |
81554-51060 |
US $17.91 |
||
|
81565
|
81565
81555-51010 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[04.2001 - 11.2005] JCG1# |
81555-51010 |
US $27.37 |
||
|
81565
|
81565
81555-51020 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[04.2001 - 11.2005] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81555-51020 |
US $27.37 |
||
|
81565
|
81565
81555-51160 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[12.2005 -] JCG1# |
81555-51160 |
US $33.20 |
||
|
81565A
|
81565A
81559-51010 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[04.2001 - 11.2005] JCG1# |
81559-51010 |
US $21.55 |
||
|
9017905076
|
9017905076
90179-05076
NUT
|
90179-05076 |
— | ||
| replacement | |||||
|
9017905076
|
9017905076
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
