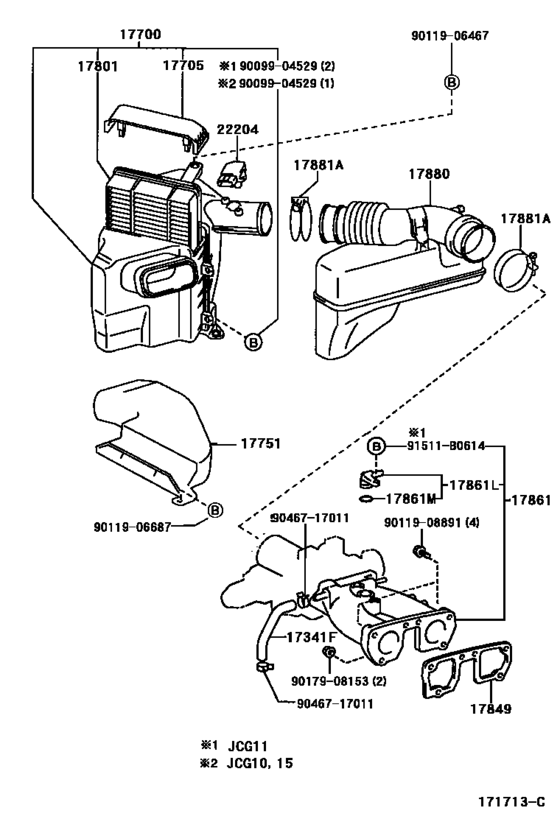

Air Cleaner ([05.1998 - 04.2001] (9805-0104)) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-46380 Cleaner Assy, Air[05.1998 - 04.2001] 1JZGE..JCG10,15 |
17700-46380 |
US $336.34 |
||
|
17705
|
17705
17705-46110
Cap Sub-Assy, Air Cleaner
[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
17705-46110 |
— | ||
|
17751
|
17751
17751-46100 Inlet, Air Cleaner, No.1[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
17751-46100 |
US $131.04 |
||
|
17801
|
17801
17801-46080 Element Sub-Assy, Air Cleaner Filter[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
17801-46080 |
from US $39.16 |
||
|
17849
|
17849
17849-46020 Gasket, Intake Air Connector[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
17849-46020 |
US $14.56 |
||
|
17861
|
17861
17860-46101 Connector, Intake Air[05.1998 - 07.1998] 1JZGE..JCG10 |
17860-46101 |
US $285.38 |
||
| replacement | |||||
|
17861
|
17861
17860-46102 Connector, Intake Air[05.1998 - 07.1998] 1JZGE..JCG10 |
17860-46102 |
US $285.38 |
||
|
17861
|
17861
17860-46102 Connector, Intake Air[07.1998 - 04.2001] 1JZGE..JCG10,15 |
17860-46102 |
US $285.38 |
||
|
17880
|
17880
17880-46160 Hose Assy, Air Cleaner[05.1998 - 04.2001] 1JZGE,2JZGE..JCG10,11 |
17880-46160 |
US $90.27 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
96111-10800 |
from US $2.56 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9009904529
|
9009904529
90099-04529 New Genuine Part |
90099-04529 |
US $1.89 |
||
| replacement | |||||
|
9009904529
|
9009904529
17778-38010
BOLT AIR CLEANER
|
17778-38010 |
— | ||
|
9011906467
|
9011906467
90119-06467 BOLT WWASHER |
90119-06467 |
US $2.56 |
||
|
9011906687
|
9011906687
90119-06687 BOLT WWASHER |
90119-06687 |
US $1.92 |
||
|
9011908891
|
9011908891
90119-08891 BOLT |
90119-08891 |
US $1.92 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9046717011
|
9046717011
90467-17011
Clip Or Clamp(For Ventilation Hose)
|
90467-17011 |
— | ||
| replacement | |||||
|
9046717011
|
9046717011
96134-51700 Clip Or Clamp(For Ventilation Hose) |
96134-51700 |
from US $1.97 |
||
