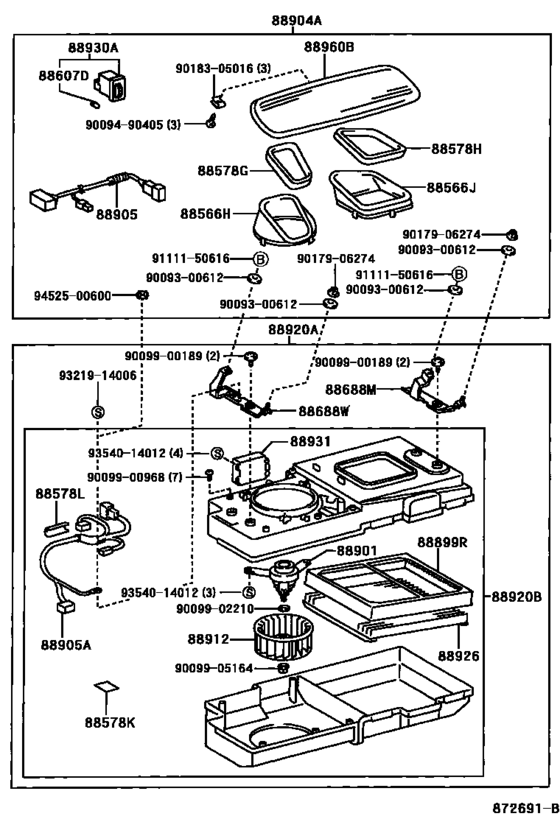

Air Purifier Or Ion Generator ([05.1998 - ] (9805- )) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88566H
|
88566H
88566-51010
Duct, Air, No.1
[05.1998 - 04.2001] JCG1# |
88566-51010 |
— | ||
|
88566J
|
88566J
88566-51020
Duct, Air, No.2
[05.1998 - 04.2001] JCG1# |
88566-51020 |
— | ||
|
88578G
|
88578G
88578-51010
Packing, Air Purifier, No.1
[05.1998 - 04.2001] JCG1# |
88578-51010 |
— | ||
|
88578H
|
88578H
88578-51020
Packing, Air Purifier, No.2
[05.1998 - 04.2001] JCG1# |
88578-51020 |
— | ||
|
88578K
|
88578K
88578-28190
Packin, Cooler No.1
[05.1998 - 04.2001] JCG1# |
88578-28190 |
— | ||
|
88578L
|
88578L
88578-30370
Packing, Air Purifier, No.1
[05.1998 - 04.2001] JCG1# |
88578-30370 |
— | ||
|
88607D
|
88607D
90010-03005
Lamp Sub-Assy, Air Purifier Switch
[05.1998 - 04.2001] JCG1# １４Ｖ １．８Ｗ |
90010-03005 |
— | ||
|
88688M
|
88688M
88688-51010
Bracket, Air Purifier, No.2
[05.1998 - 04.2001] JCG1# |
88688-51010 |
— | ||
|
88688W
|
88688W
88688-51020
Bracket, Air Purifier, No.1
[05.1998 - 04.2001] JCG1# |
88688-51020 |
— | ||
|
88899R
|
88899R
88899-32020
Frame, Air Purifier
[05.1998 - 04.2001] JCG1# |
88899-32020 |
— | ||
|
88901
|
88901
88901-32020
Motor Sub-Assy, Air Purifier
[05.1998 - 04.2001] JCG1# |
88901-32020 |
— | ||
|
88904A
|
88904A
88904-51010-A0
Accessory Sub-Assy, Air Purifire
[05.1998 - 04.2001] JCG1# IVORY,TRIM00 |
88904-51010-A0 |
— | ||
|
88904A
|
88904A
88904-51010-C0 Accessory Sub-Assy, Air Purifire[05.1998 - 04.2001] JCG1# BLACK,TRIM2# |
88904-51010-C0 |
US $160.16 |
||
|
88904A
|
88904A
88904-51010-E0 Accessory Sub-Assy, Air Purifire[05.1998 - 04.2001] JCG1# SANDAL WOOD,TRIM01 |
88904-51010-E0 |
US $160.16 |
||
|
88905
|
88905
88905-51010
Wire Sub-Assy, Air Purifier, No.1
[05.1998 - 04.2001] JCG1# |
88905-51010 |
— | ||
|
88905A
|
88905A
88905-33030
Wire Sub-Assy, Air Purifier, No.2
[05.1998 - 04.2001] JCG1# |
88905-33030 |
— | ||
|
88912
|
88912
88912-32140
Fan, Air Purifier
[05.1998 - 04.2001] JCG1# |
88912-32140 |
— | ||
|
88920A
|
88920A
88920-51010 Purifier Assy, Air[05.1998 - 04.2001] JCG1# |
88920-51010 |
US $436.80 |
||
| replacements | |||||
|
88920A
|
88920A
88688-51010
Bracket, Air Purifier, No.2
[05.1998 - 04.2001] JCG1# |
88688-51010 |
— | ||
|
88920A
|
88920A
88688-51020
Bracket, Air Purifier, No.1
[05.1998 - 04.2001] JCG1# |
88688-51020 |
— | ||
|
88920A
|
88920A
88920-33050 Purifier Assy, Air[05.1998 - 04.2001] JCG1# |
88920-33050 |
US $436.80 |
||
|
88920B
|
88920B
88920-33050 Purifier Assy, Air[05.1998 - 04.2001] JCG1# |
88920-33050 |
US $436.80 |
||
|
88926
|
88926
88926-32030 Filter, Air Purifier[05.1998 - 04.2001] JCG1# |
88926-32030 |
US $189.17 |
||
|
88930A
|
88930A
88930-33050
Switch Assy, Air Purifier
[05.1998 - 04.2001] JCG1# |
88930-33050 |
— | ||
|
88931
|
88931
88931-50030
Sensor, Smoke
[05.1998 - 04.2001] JCG1# |
88931-50030 |
— | ||
|
88960B
|
88960B
88960-51010-A0
Resistor Assy, Air Purifire
[05.1998 - 04.2001] JCG1# IVORY,TRIM00 |
88960-51010-A0 |
— | ||
| replacement | |||||
|
88960B
|
88960B
88960-51010-C0
Resistor Assy, Air Purifire
[05.1998 - 04.2001] JCG1# IVORY,TRIM00 |
88960-51010-C0 |
— | ||
|
88960B
|
88960B
88960-51010-C0
Resistor Assy, Air Purifire
[05.1998 - 04.2001] JCG1# BLACK,TRIM2# |
88960-51010-C0 |
— | ||
|
88960B
|
88960B
88960-51010-E0
Resistor Assy, Air Purifire
[05.1998 - 04.2001] JCG1# SANDAL WOOD,TRIM01 |
88960-51010-E0 |
— | ||
|
9009300612
|
9009300612
90093-00612
New Genuine Part
|
90093-00612 |
— | ||
|
9009490405
|
9009490405
90094-90405
New Genuine Part
|
90094-90405 |
— | ||
|
9009900189
|
9009900189
90099-00189
New Genuine Part
|
90099-00189 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009902210
|
9009902210
90099-02210 New Genuine Part |
90099-02210 |
US $0.87 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.87 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018305016
|
9018305016
90183-05016 NUT |
90183-05016 |
US $1.28 |
||
|
9111150616
|
9111150616
91111-50616 New Genuine Part |
91111-50616 |
US $0.93 |
||
|
9321914006
|
9321914006
93219-14006
New Genuine Part
|
93219-14006 |
— | ||
|
9354014012
|
9354014012
93540-14012 Screw |
93540-14012 |
from US $1.92 |
||
|
9452500600
|
9452500600
94525-00600 New Genuine Part |
94525-00600 |
US $2.18 |
||
