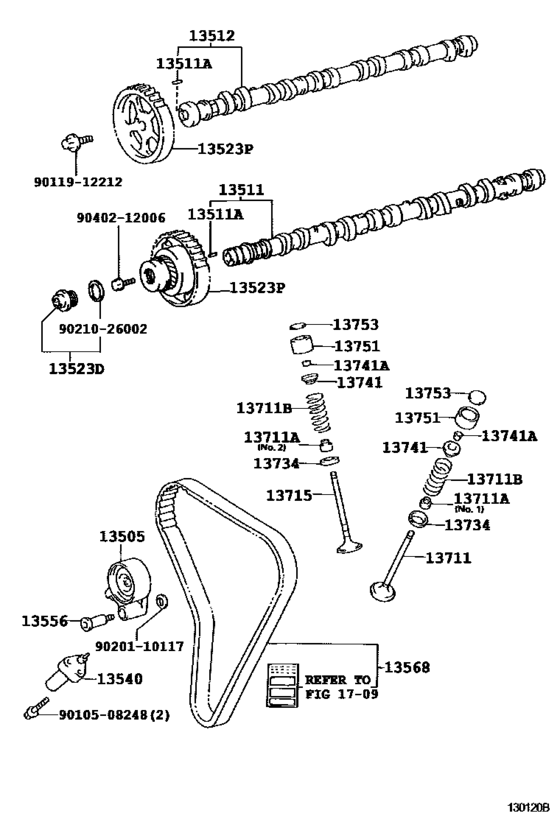

Camshaft & Valve ([05.1998 - 04.2001] (9805-0104)) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13505
|
13505
13505-46020 Idler Sub-Assy, Timing Belt, No.1[05.1998 - 04.2001] 1JZGE..JCG10,15 |
13505-46020 |
US $65.21 |
||
|
13511
|
13511
13501-46070 Camshaft[05.1998 - 01.1999] 1JZGE,2JZGE..JCG1# |
13501-46070 |
US $618.80 |
||
|
13511
|
13511
13501-46080 Camshaft[01.1999 - 04.2001] 1JZGE,2JZGE..JCG1# |
13501-46080 |
US $618.80 |
||
|
13511A
|
13511A
90250-05021 Pin, Straight[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# 長さ＝１３．８，外径＝５．０ |
90250-05021 |
from US $0.72 |
||
|
13512
|
13512
13502-46011 Camshaft, No.2[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
13502-46011 |
US $718.10 |
||
|
13523D
|
13523D
90341-27007 Plug, Straight Screw(For Timing Gear)[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
90341-27007 |
US $8.64 |
||
|
13523P
|
13523P
13050-46010 Pulley, Camshaft Timing[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# 左側 |
13050-46010 |
from US $169.98 |
||
|
13523P
|
13523P
13523-46030 Pulley, Camshaft Timing[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# 右側 |
13523-46030 |
from US $61.97 |
||
|
13540
|
13540
13540-46012
Tensioner Assy, Chain, No.1
[05.1998 - 07.1999] 1JZGE,2JZGE..JCG1# |
13540-46012 |
— | ||
| replacement | |||||
|
13540
|
13540
13540-46030 Tensioner Assy, Chain, No.1[05.1998 - 07.1999] 1JZGE,2JZGE..JCG1# |
13540-46030 |
from US $79.72 |
||
|
13540
|
13540
13540-46030 Tensioner Assy, Chain, No.1[07.1999 - 04.2001] 1JZGE,2JZGE..JCG1# |
13540-46030 |
from US $79.72 |
||
|
13556
|
13556
13556-46010 Shaft, Timing Belt Idler[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
13556-46010 |
from US $22.58 |
||
|
13568
|
13568
13568-49025 Belt, Timing[05.1998 - 04.2001] 1JZGE..JCG10,15 |
13568-49025 |
from US $69.62 |
||
|
13711
|
13711
13711-46022 Valve, Intake[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
13711-46022 |
US $71.74 |
||
|
13711A
|
13711A
90913-02088 Seal Or Ring, O(For Valve Stem Oil)[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# ＮＯ．２ |
90913-02088 |
from US $5.01 |
||
|
13711A
|
13711A
90913-02090 Seal Or Ring, O(For Valve Stem Oil)[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# ＮＯ．１ |
90913-02090 |
from US $4.93 |
||
|
13711B
|
13711B
90501-33013 Spring, Compression(For Inner)[05.1998 - 08.1998] 1JZGE,2JZGE..JCG1# |
90501-33013 |
US $4.66 |
||
| replacement | |||||
|
13711B
|
13711B
90501-33020 Spring, Compression(For Inner)[05.1998 - 08.1998] 1JZGE,2JZGE..JCG1# |
90501-33020 |
US $4.37 |
||
|
13711B
|
13711B
90501-33020 Spring, Compression(For Inner)[08.1998 - 07.1999] 1JZGE,2JZGE..JCG1# |
90501-33020 |
US $4.37 |
||
|
13711B
|
13711B
90905-01068 Spring, Compression(For Inner)[07.1999 - 04.2001] 1JZGE,2JZGE..JCG1# |
90905-01068 |
US $4.95 |
||
|
13715
|
13715
13715-46020 Valve, Exhaust[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
13715-46020 |
US $71.74 |
||
|
13734
|
13734
90201-18017 Seat, Valve Spring[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
90201-18017 |
US $1.92 |
||
|
13741
|
13741
13741-46020 Retainer, Valve Spring[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
13741-46020 |
US $8.16 |
||
|
13741A
|
13741A
90913-03025 Lock, Valve Spring Retainer[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
90913-03025 |
from US $1.97 |
||
|
13751
|
13751
13751-74020 Lifter, Valve[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
13751-74020 |
US $20.67 |
||
|
13753
|
13753
13753-46030 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．５０ マーク １ |
13753-46030 |
US $7.86 |
||
|
13753
|
13753
13753-46040 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．５２ マーク ２ |
13753-46040 |
US $7.86 |
||
|
13753
|
13753
13753-46050 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．５４ マーク ３ |
13753-46050 |
US $7.86 |
||
|
13753
|
13753
13753-46060 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．５６ マーク ４ |
13753-46060 |
US $7.86 |
||
|
13753
|
13753
13753-46070 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．５８ マーク ５ |
13753-46070 |
US $7.86 |
||
|
13753
|
13753
13753-46080 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．６０ マーク ６ |
13753-46080 |
US $7.86 |
||
|
13753
|
13753
13753-46090 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．６２ マーク ７ |
13753-46090 |
US $7.86 |
||
|
13753
|
13753
13753-46100 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．６４ マーク ８ |
13753-46100 |
US $7.86 |
||
|
13753
|
13753
13753-46110 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．６６ マーク ９ |
13753-46110 |
US $7.86 |
||
|
13753
|
13753
13753-46120 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．６８ マーク １１ |
13753-46120 |
US $7.86 |
||
|
13753
|
13753
13753-46130 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．７０ マーク １３ |
13753-46130 |
US $7.86 |
||
|
13753
|
13753
13753-46140 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．７２ マーク １５ |
13753-46140 |
US $7.86 |
||
|
13753
|
13753
13753-46150 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．７４ マーク １７ |
13753-46150 |
US $7.86 |
||
|
13753
|
13753
13753-46160 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．７６ マーク １９ |
13753-46160 |
US $7.86 |
||
|
13753
|
13753
13753-46170 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．７８ マーク ２１ |
13753-46170 |
US $7.86 |
||
|
13753
|
13753
13753-46180 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．８０ マーク ２３ |
13753-46180 |
US $7.86 |
||
|
13753
|
13753
13753-46190 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．８２ マーク ２５ |
13753-46190 |
US $7.86 |
||
|
13753
|
13753
13753-46200 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．８４ マーク ２７ |
13753-46200 |
US $7.86 |
||
|
13753
|
13753
13753-46210 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．８６ マーク ２９ |
13753-46210 |
US $7.86 |
||
|
13753
|
13753
13753-46220 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．８８ マーク ３１ |
13753-46220 |
US $7.86 |
||
|
13753
|
13753
13753-46230 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．９０ マーク ３３ |
13753-46230 |
US $7.86 |
||
|
13753
|
13753
13753-46240 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．９２ マーク ３５ |
13753-46240 |
US $7.86 |
||
|
13753
|
13753
13753-46250 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．９４ マーク ３７ |
13753-46250 |
US $7.86 |
||
|
13753
|
13753
13753-46260 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．９６ マーク ３９ |
13753-46260 |
US $7.86 |
||
|
13753
|
13753
13753-46270
Shim, Valve Adjusting
[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．９８ マーク ４１ |
13753-46270 |
— | ||
| replacement | |||||
|
13753
|
13753
13753-74200 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝２．９８ マーク ４１ |
13753-74200 |
US $8.56 |
||
|
13753
|
13753
13753-46280
Shim, Valve Adjusting
[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．００ マーク ４３ |
13753-46280 |
— | ||
| replacement | |||||
|
13753
|
13753
13753-74210 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．００ マーク ４３ |
13753-74210 |
from US $9.18 |
||
|
13753
|
13753
13753-46290
Shim, Valve Adjusting
[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．０２ マーク ４５ |
13753-46290 |
— | ||
| replacement | |||||
|
13753
|
13753
13753-74220 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．０２ マーク ４５ |
13753-74220 |
US $8.74 |
||
|
13753
|
13753
13753-46300 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．０４ マーク ４７ |
13753-46300 |
US $7.86 |
||
|
13753
|
13753
13753-46310
Shim, Valve Adjusting
[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．０６ マーク ４９ |
13753-46310 |
— | ||
| replacement | |||||
|
13753
|
13753
13753-74230 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．０６ マーク ４９ |
13753-74230 |
from US $8.56 |
||
|
13753
|
13753
13753-46320
Shim, Valve Adjusting
[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．０８ マーク ５０ |
13753-46320 |
— | ||
|
13753
|
13753
13753-46330
Shim, Valve Adjusting
[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．１０ マーク ５１ |
13753-46330 |
— | ||
|
13753
|
13753
13753-46340
Shim, Valve Adjusting
[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．１２ マーク ５２ |
13753-46340 |
— | ||
|
13753
|
13753
13753-46350
Shim, Valve Adjusting
[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．１４ マーク ５３ |
13753-46350 |
— | ||
|
13753
|
13753
13753-46360 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．１６ マーク ５４ |
13753-46360 |
US $7.86 |
||
|
13753
|
13753
13753-46370
Shim, Valve Adjusting
[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．１８ マーク ５５ |
13753-46370 |
— | ||
|
13753
|
13753
13753-46380
Shim, Valve Adjusting
[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．２０ マーク ５６ |
13753-46380 |
— | ||
|
13753
|
13753
13753-46390 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．２２ マーク ５７ |
13753-46390 |
US $7.86 |
||
|
13753
|
13753
13753-46400 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．２４ マーク ５８ |
13753-46400 |
US $7.86 |
||
|
13753
|
13753
13753-46410 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．２６ マーク ５９ |
13753-46410 |
US $7.86 |
||
|
13753
|
13753
13753-46420 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．２８ マーク ６０ |
13753-46420 |
US $7.86 |
||
|
13753
|
13753
13753-46430 Shim, Valve Adjusting[05.1998 - 04.2001] 1JZGE..JCG10,15 厚さ＝３．３０ マーク ６１ |
13753-46430 |
US $7.86 |
||
|
9010508248
|
9010508248
90105-08248 BOLT WASHER BASED |
90105-08248 |
US $2.56 |
||
|
9011912212
|
9011912212
90119-12212 BOLT |
90119-12212 |
US $6.56 |
||
|
9020110117
|
9020110117
90201-10117 WASHER |
90201-10117 |
US $3.20 |
||
|
9021026002
|
9021026002
90210-26002 WASHER SEAL |
90210-26002 |
from US $1.03 |
||
|
9040212006
|
9040212006
90402-12006 BOLT LEXPULLEY |
90402-12006 |
from US $7.13 |
||
