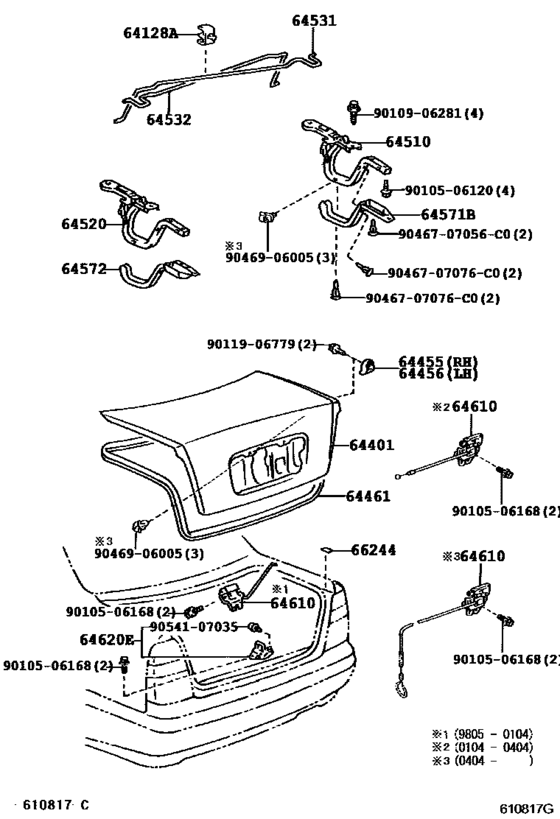

Luggage Compartment Door & Lock ([05.1998 - ] (9805- )) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64128A
|
64128A
64128-51010 Support, Luggage Compartment Door Torsion Bar, No.2[09.1998 - 04.2001] JCG1# |
64128-51010 |
US $4.22 |
||
|
64401
|
64401
64401-51010 Panel Sub-Assy, Luggage Compartment Door[05.1998 - 04.2001] JCG1# |
64401-51010 |
US $793.52 |
||
|
64455
|
64455
64455-51010 Cushion, Luggage Compartment Door Side, Rh[05.1998 - 04.2001] JCG1# |
64455-51010 |
US $4.95 |
||
|
64456
|
64456
64456-51010 Cushion, Luggage Compartment Door Side, Lh[05.1998 - 04.2001] JCG1# |
64456-51010 |
US $4.95 |
||
|
64461
|
64461
64461-51010 Weatherstrip, Luggage Compartment Door[05.1998 - 04.2001] JCG1# |
64461-51010 |
US $101.92 |
||
|
64510
|
64510
64510-51010 Hinge Assy, Luggage Compartment Door, Rh[05.1998 - 04.2001] JCG1# |
64510-51010 |
US $51.25 |
||
|
64520
|
64520
64510-51010 Hinge Assy, Luggage Compartment Door, Rh[05.1998 - 04.2001] JCG1# |
64510-51010 |
US $51.25 |
||
|
64531
|
64531
64531-51010 Bar, Luggage Door Hinge Torsion, Rh[05.1998 - 04.2001] JCG1# |
64531-51010 |
US $24.17 |
||
|
64532
|
64532
64532-51010 Bar, Luggage Door Hinge Torsion, Lh[05.1998 - 04.2001] JCG1# |
64532-51010 |
US $24.17 |
||
|
64571B
|
64571B
64571-51010-C0 Cover, Luggage Compartment Door Hinge, Rh[05.1998 - 04.2001] JCG1# BLACK,TRIM00,01,2# |
64571-51010-C0 |
US $31.30 |
||
|
64572
|
64572
64572-51010-C0 Cover, Luggage Compartment Door Hinge, Lh[05.1998 - 04.2001] JCG1# BLACK,TRIM00,01,2# |
64572-51010-C0 |
US $36.69 |
||
|
64610
|
64610
64600-51010 Lock Assy, Luggage Compartment Door[05.1998 - 04.2001] JCG1# |
64600-51010 |
US $205.30 |
||
|
64620E
|
64620E
64620-30110 Striker Assy, Luggage Compartment Door[05.1998 - 04.2001] JCG1# |
64620-30110 |
US $10.05 |
||
|
66244
|
66244
66244-51010 Protector, Rear Body, No.2[05.1998 - 04.2001] JCG1# |
66244-51010 |
US $3.49 |
||
|
9010506120
|
9010506120
90105-06120 BOLT WASHER BASED |
90105-06120 |
from US $1.03 |
||
|
9010506168
|
9010506168
90105-06168 BOLT WASHER BASED |
90105-06168 |
from US $0.76 |
||
|
9010906281
|
9010906281
90109-06281 BOLT |
90109-06281 |
US $0.96 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.72 |
||
|
9046707056C0
|
9046707056C0
90467-07056-C0 Clip(For Package Tray Trim Panel) |
90467-07056-C0 |
US $2.56 |
||
|
9046707076C0
|
9046707076C0
90467-07076-C0 Clip, Radiator Grille |
90467-07076-C0 |
from US $0.99 |
||
|
9046906005
|
9046906005
90469-06005 Clamp(For Hood Lock Control Cable) |
90469-06005 |
from US $1.28 |
||
|
9054107035
|
9054107035
90541-07035 New Genuine Part |
90541-07035 |
US $3.79 |
