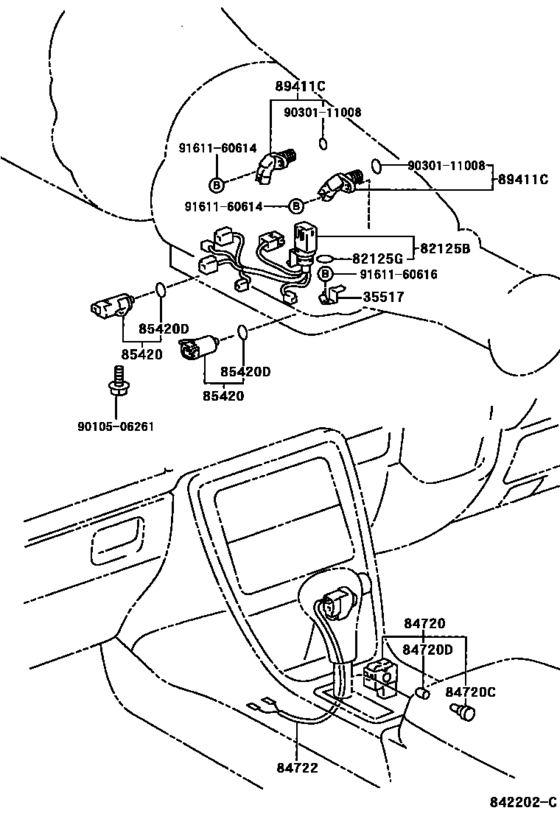

Overdrive & Electronic Controlled Transmission ([05.1998 - 04.2001] (9805-0104)JCG10,11) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35517
|
35517
35517-50010 Plate, Transmission Wire Lock[05.1998 - 04.2001] JCG10,11 |
35517-50010 |
US $3.49 |
||
|
82125B
|
82125B
82125-40050 Wire, Transmission[05.1998 - 04.2001] JCG10,11 |
82125-40050 |
US $37.22 |
||
|
82125G
|
82125G
96721-24018 Ring, O[05.1998 - 04.2001] JCG1# |
96721-24018 |
from US $3.84 |
||
|
84720
|
84720
84720-51010 Switch Assy, Pattern Select[05.1998 - 04.2001] JCG1# |
84720-51010 |
US $61.44 |
||
|
84720C
|
84720C
84999-10710 Bulb, Throttle Position Switch[05.1998 - 04.2001] JCG1# １４Ｖ ０．５６Ｗ |
84999-10710 |
from US $6.26 |
||
|
84720D
|
84720D
84998-10670 Cap, Throttle Position Switch Bulb[05.1998 - 04.2001] JCG1# |
84998-10670 |
US $3.68 |
||
|
84722
|
84722
84722-51010-C0 Switch, Transmission Control[05.1998 - 04.2001] JCG1# BLACK,TRIM2# |
84722-51010-C0 |
US $49.65 |
||
|
84722
|
84722
84722-51010-E0 Switch, Transmission Control[05.1998 - 04.2001] JCG1# SANDAL WOOD,TRIM01 |
84722-51010-E0 |
US $49.65 |
||
|
84722
|
84722
84722-51010-J0 Switch, Transmission Control[05.1998 - 04.2001] JCG1# DK.BLUE,TRIM00 |
84722-51010-J0 |
US $49.94 |
||
| replacement | |||||
|
84722
|
84722
84722-51010-C0 Switch, Transmission Control[05.1998 - 04.2001] JCG1# DK.BLUE,TRIM00 |
84722-51010-C0 |
US $49.65 |
||
|
85420
|
85420
85420-50020 Solenoid Assy, Transmission[05.1998 - 04.2001] JCG10,11 |
85420-50020 |
US $227.14 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[05.1998 - 04.2001] JCG1# |
90301-06004 |
from US $1.92 |
||
|
89411C
|
89411C
89411-50010 Sensor, Speed[05.1998 - 04.2001] JCG1# |
89411-50010 |
from US $67.18 |
||
|
9010506261
|
9010506261
90105-06261 Bolt(For Manual Detent Spring) |
90105-06261 |
US $0.73 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.92 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.88 |
||
