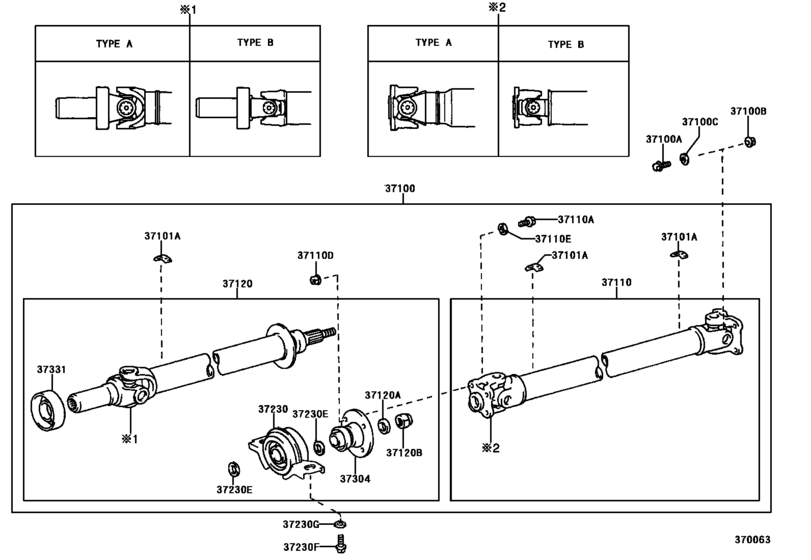

Propeller Shaft & Universal Joint ([05.1998 - 04.2001] (9805-0104)JCG10,11) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-30770 Shaft Assy, Propeller W/center Bearing[01.2000 - 04.2001] JCG10 |
37100-30770 |
US $1,400.67 |
||
|
37100
|
37100
37100-51030 Shaft Assy, Propeller W/center Bearing[05.1998 - 01.2000] JCG10 |
37100-51030 |
US $1,557.92 |
||
| replacement | |||||
|
37100
|
37100
37100-30770 Shaft Assy, Propeller W/center Bearing[05.1998 - 01.2000] JCG10 |
37100-30770 |
US $1,400.67 |
||
|
37100A
|
37100A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[05.1998 - 09.1999] JCG1# |
90105-10085 |
from US $1.17 |
||
| replacement | |||||
|
37100A
|
37100A
90080-10294 Bolt, No.1 (For Propeller Shaft & Differential Setting)[05.1998 - 09.1999] JCG1# |
90080-10294 |
US $6.47 |
||
|
37100A
|
37100A
90105-10466 Bolt, No.1 (For Propeller Shaft & Differential Setting)[09.1999 - 04.2001] JCG1# |
90105-10466 |
from US $2.24 |
||
|
37100B
|
37100B
90178-10007 Nut, No.1 (For Propeller Shaft & Differential Setting)[09.1999 - 04.2001] JCG1# |
90178-10007 |
from US $1.28 |
||
|
37100B
|
37100B
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[05.1998 - 09.1999] JCG1# |
90179-10059 |
from US $2.28 |
||
| replacement | |||||
|
37100B
|
37100B
90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting)[05.1998 - 09.1999] JCG1# |
90080-17239 |
US $8.96 |
||
|
37100C
|
37100C
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[05.1998 - 09.1999] JCG1# |
90204-10002 |
— | ||
| replacement | |||||
|
37100C
|
37100C
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[05.1998 - 09.1999] JCG1# |
90560-10H00 |
from US $2.11 |
||
|
37100C
|
37100C
90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)[09.1999 - 04.2001] JCG1# |
90560-10102 |
from US $1.12 |
||
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10 １０Ｇ，長さ＝２０．７,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90937-01132 |
US $3.52 |
||
|
37101A
|
37101A
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２０Ｇ，長さ＝４１．４ |
90937-01136 |
US $3.20 |
||
|
37101A
|
37101A
90937-01140 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ３０Ｇ，長さ＝６２．２ |
90937-01140 |
US $3.49 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２Ｇ，厚さ＝２．０ |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ４Ｇ，厚さ＝２．０ |
90937-01148 |
US $2.24 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10 ６Ｇ，長さ＝１２．４,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90937-01149 |
US $2.24 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10 ８Ｇ，長さ＝１６．６,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90937-01150 |
US $2.24 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10 １２Ｇ，長さ＝２４．９,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90937-01151 |
US $2.40 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10 １４Ｇ，長さ＝２９．０,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90937-01152 |
US $2.24 |
||
|
37101A
|
37101A
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 １６Ｇ，長さ＝３３．２ |
90937-01153 |
US $1.31 |
||
|
37101A
|
37101A
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 １８Ｇ，長さ＝３７．３ |
90937-01154 |
US $1.75 |
||
|
37101A
|
37101A
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２２Ｇ，長さ＝４５．６ |
90937-01155 |
US $1.75 |
||
|
37101A
|
37101A
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２４Ｇ，長さ＝４９．７ |
90937-01156 |
US $1.75 |
||
|
37101A
|
37101A
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２６Ｇ，長さ＝５３．９ |
90937-01157 |
US $1.75 |
||
|
37101A
|
37101A
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２８Ｇ，長さ＝５８．１ |
90937-01158 |
US $1.75 |
||
|
37101A
|
37101A
90937-01311 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ３Ｇ |
90937-01311 |
US $6.41 |
||
|
37101A
|
37101A
90937-01312 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ５Ｇ |
90937-01312 |
US $6.41 |
||
|
37101A
|
37101A
90937-01313 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ７Ｇ，長さ＝１４．４ |
90937-01313 |
US $6.41 |
||
|
37101A
|
37101A
90937-01314 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ９Ｇ，長さ＝１８．５ |
90937-01314 |
US $6.41 |
||
|
37101A
|
37101A
90937-01338 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ３Ｇ，厚さ＝１．０，長さ＝１９．１ |
90937-01338 |
US $1.60 |
||
|
37101A
|
37101A
90937-01339 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ５Ｇ，厚さ＝１．０，長さ＝３１．８ |
90937-01339 |
US $1.60 |
||
|
37101A
|
37101A
90937-01340 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ７Ｇ，厚さ＝２．０ |
90937-01340 |
US $1.60 |
||
|
37101A
|
37101A
90937-01355 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ２Ｇ，厚さ＝１．０，長さ＝１２．７ |
90937-01355 |
US $2.77 |
||
|
37101A
|
37101A
90937-01356 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ４Ｇ，厚さ＝１．０，長さ＝２５．４ |
90937-01356 |
US $2.77 |
||
|
37101A
|
37101A
90937-01357 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ６Ｇ，厚さ＝２．０,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90937-01357 |
US $2.77 |
||
|
37101A
|
37101A
90937-01358 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ８Ｇ，厚さ＝２．０,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90937-01358 |
US $3.93 |
||
|
37101A
|
37101A
90937-01359 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 １０Ｇ，厚さ＝２．０,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90937-01359 |
US $3.93 |
||
|
37101A
|
37101A
90937-01360 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 １２Ｇ，厚さ＝２．０,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90937-01360 |
US $3.93 |
||
|
37101A
|
37101A
90937-01361 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 １４Ｇ，厚さ＝２．０,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90937-01361 |
US $3.93 |
||
|
37101A
|
37101A
90937-01362 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 １６Ｇ，厚さ＝２．０ |
90937-01362 |
US $3.93 |
||
|
37101A
|
37101A
90937-01363 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 １８Ｇ，厚さ＝２．０ |
90937-01363 |
US $5.10 |
||
|
37101A
|
37101A
90937-01364 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ２０Ｇ，厚さ＝２．０，長さ＝４２．４ |
90937-01364 |
US $5.10 |
||
|
37101A
|
37101A
90937-01365 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 １Ｇ，厚さ＝１．０，長さ＝６．４ |
90937-01365 |
US $2.77 |
||
|
37101A
|
37101A
90937-01385 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ２２Ｇ，厚さ＝２．０，長さ＝４６．６ |
90937-01385 |
US $5.10 |
||
|
37101A
|
37101A
90937-01386 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ２４Ｇ，厚さ＝２．０，長さ＝５０．８ |
90937-01386 |
US $5.10 |
||
|
37101A
|
37101A
90937-01487 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 １．５Ｇ，厚さ＝１．０，長さ＝９．５ |
90937-01487 |
US $0.73 |
||
|
37101A
|
37101A
90937-01488 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ２．５Ｇ，厚さ＝１．０，長さ＝１５．９ |
90937-01488 |
US $1.02 |
||
|
37101A
|
37101A
90937-01489 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ３．５Ｇ，厚さ＝１．０，長さ＝２２．３ |
90937-01489 |
US $1.31 |
||
|
37101A
|
37101A
90937-01490 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 01.2000] JCG10,11 ４．５Ｇ，厚さ＝１．０，長さ＝２８．６ |
90937-01490 |
US $1.46 |
||
|
37110
|
37110
37110-30360 Shaft Assy, Propeller[01.2000 - 11.2000] JCG10 |
37110-30360 |
US $745.47 |
||
| replacement | |||||
|
37110
|
37110
37110-30361 Shaft Assy, Propeller[01.2000 - 11.2000] JCG10 |
37110-30361 |
US $748.38 |
||
|
37110
|
37110
37110-30361 Shaft Assy, Propeller[11.2000 - 04.2001] JCG10 |
37110-30361 |
US $748.38 |
||
|
37110
|
37110
37110-51020
Shaft Assy, Propeller
[05.1998 - 01.2000] JCG10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
37110-51020 |
— | ||
|
37110
|
37110
37110-51030 Shaft Assy, Propeller[05.1998 - 01.2000] JCG10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
37110-51030 |
US $869.23 |
||
|
37110A
|
37110A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[05.1998 - 09.1999] JCG1# ＊１０−１．００ＰＸ２７−１３ |
90105-10085 |
from US $1.17 |
||
| replacement | |||||
|
37110A
|
37110A
90080-10294 Bolt, No.1 (For Propeller Shaft & Differential Setting)[05.1998 - 09.1999] JCG1# ＊１０−１．００ＰＸ２７−１３ |
90080-10294 |
US $6.47 |
||
|
37110A
|
37110A
90105-10466 Bolt, No.1 (For Propeller Shaft & Differential Setting)[09.1999 - 01.2000] JCG10 ＊１０−１．００ＰＸ２９−１５,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90105-10466 |
from US $2.24 |
||
|
37110D
|
37110D
90178-10007 Nut, No.1 (For Propeller Shaft & Differential Setting)[09.1999 - 01.2000] JCG10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90178-10007 |
from US $1.28 |
||
|
37110D
|
37110D
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[05.1998 - 09.1999] JCG1# |
90179-10059 |
from US $2.28 |
||
| replacement | |||||
|
37110D
|
37110D
90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting)[05.1998 - 09.1999] JCG1# |
90080-17239 |
US $8.96 |
||
|
37110E
|
37110E
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[05.1998 - 09.1999] JCG1# |
90204-10002 |
— | ||
| replacement | |||||
|
37110E
|
37110E
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[05.1998 - 09.1999] JCG1# |
90560-10H00 |
from US $2.11 |
||
|
37110E
|
37110E
90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)[09.1999 - 01.2000] JCG10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90560-10102 |
from US $1.12 |
||
|
37120
|
37120
37120-51010 Shaft Assy, Propeller Intermediate[05.1998 - 01.2000] JCG10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
37120-51010 |
US $688.69 |
||
|
37120
|
37120
37120-51020 Shaft Assy, Propeller Intermediate[05.1998 - 04.2001] JCG10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
37120-51020 |
US $748.38 |
||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[05.1998 - 04.2001] JCG1# 外径＝３３．５，厚さ＝４．０ |
90201-18182 |
from US $2.88 |
||
|
37120B
|
37120B
90179-18009 Nut (For Propeller Intermediate Shaft Setting)[05.1998 - 04.2001] JCG1# |
90179-18009 |
from US $1.64 |
||
|
37230
|
37230
37230-51010 Bearing Assy, Center Support, No.1[05.1998 - 04.2001] JCG1# |
37230-51010 |
US $168.48 |
||
|
37230E
|
37230E
90201-25006 Washer, Plate (For Propeller Intermediate Shaft Set)[05.1998 - 04.2001] JCG1# |
90201-25006 |
US $1.44 |
||
|
37230F
|
37230F
90119-10217 Bolt, No.1 (For Center Support Bearing)[05.1998 - 09.1999] JCG1# 長さ＝４０ |
90119-10217 |
US $3.68 |
||
|
37230F
|
37230F
90119-10902 Bolt, No.1 (For Center Support Bearing)[09.1999 - 04.2001] JCG1# 長さ＝３３ |
90119-10902 |
US $1.92 |
||
|
37230G
|
37230G
90201-10008 Washer, No.2 (For Center Support Bearing)[05.1998 - 04.2001] JCG10,11 厚さ＝４．５ |
90201-10008 |
US $1.76 |
||
|
37230G
|
37230G
90201-10017 Washer, No.2 (For Center Support Bearing)[05.1998 - 04.2001] JCG10,11 厚さ＝９．０ |
90201-10017 |
US $2.62 |
||
|
37230G
|
37230G
90201-10033 Washer, No.2 (For Center Support Bearing)[05.1998 - 04.2001] JCG10,11 厚さ＝６．５ |
90201-10033 |
US $2.61 |
||
|
37230G
|
37230G
90201-10034 Washer, No.2 (For Center Support Bearing)[05.1998 - 04.2001] JCG10,11 厚さ＝１１．０ |
90201-10034 |
US $3.52 |
||
|
37230G
|
37230G
90201-10035 Washer, No.2 (For Center Support Bearing)[05.1998 - 04.2001] JCG10,11 厚さ＝１３．５ |
90201-10035 |
US $2.91 |
||
|
37230G
|
37230G
90201-10106 Washer, No.2 (For Center Support Bearing)[05.1998 - 04.2001] JCG10,11 厚さ＝２．０ |
90201-10106 |
US $0.87 |
||
|
37304
|
37304
37304-35041 Flange Sub-Assy, Universal Joint[05.1998 - 04.2001] JCG1# |
37304-35041 |
from US $52.59 |
||
|
37331
|
37331
37331-24010 Cover, Sliding Shaft Dust[05.1998 - 04.2001] JCG10,11 |
37331-24010 |
US $6.81 |
||
