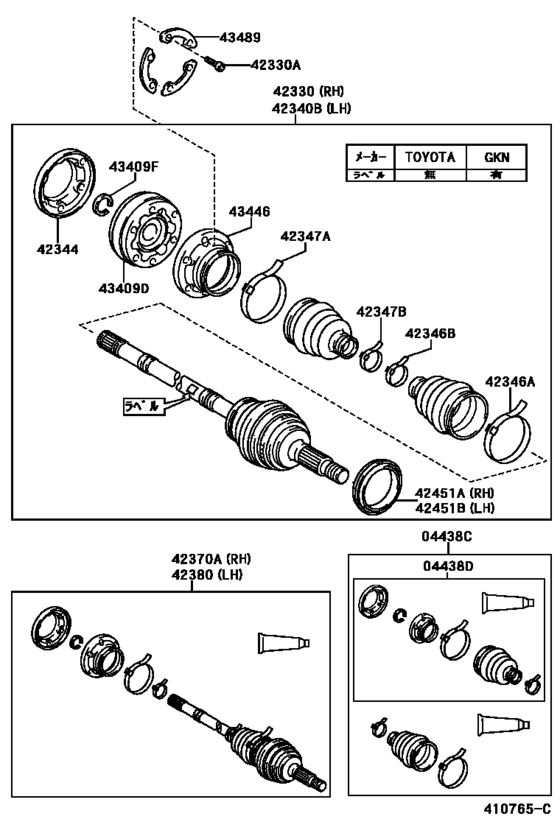

Rear Axle Shaft & Hub ([05.1998 - 04.2001] GKN (9805-0104)) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438C
|
04438C
04437-0W020 Boot Kit, Rear Drive Shaft[05.1998 - 04.2001] JCG1# ＧＫＮ |
04437-0W020 |
US $165.98 |
||
|
04438C
|
04438C
04437-30060 Boot Kit, Rear Drive Shaft[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
04437-30060 |
US $165.98 |
||
| replacement | |||||
|
04438C
|
04438C
04429-30080
Boot Kit, Rear Drive Shaft
[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
04429-30080 |
— | ||
|
04438D
|
04438D
04437-0W010 Boot Kit, Rear Drive Shaft Inboard Joint[05.1998 - 04.2001] JCG1# ＧＫＮ |
04437-0W010 |
US $112.11 |
||
|
04438D
|
04438D
04437-30050
Boot Kit, Rear Drive Shaft Inboard Joint
[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
04437-30050 |
— | ||
| replacement | |||||
|
04438D
|
04438D
04437-30030 Boot Kit, Rear Drive Shaft Inboard Joint[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
04437-30030 |
US $99.16 |
||
|
42330
|
42330
42330-0W010 Shaft Assy, Rear Drive, Rh[05.1998 - 04.2001] JCG1# ＧＫＮ |
42330-0W010 |
US $832.83 |
||
|
42330
|
42330
42330-30120 Shaft Assy, Rear Drive, Rh[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
42330-30120 |
US $775.76 |
||
|
42330A
|
42330A
90110-10016 Bolt(For Rear Drive Shaft)[05.1998 - 04.2001] JCG1# ＊１０−１．２５ＰＸ５３．４−３４．７ |
90110-10016 |
US $4.16 |
||
|
42340B
|
42340B
42340-0W010 Shaft Assy, Rear Drive, Lh[05.1998 - 04.2001] JCG1# ＧＫＮ |
42340-0W010 |
US $797.89 |
||
|
42340B
|
42340B
42340-30120 Shaft Assy, Rear Drive, Lh[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
42340-30120 |
US $775.76 |
||
|
42344
|
42344
42344-09005 Cover, Rear Axle Inboard Joint End[05.1998 - 04.2001] JCG1# ＧＫＮ |
42344-09005 |
US $26.21 |
||
|
42344
|
42344
42344-30030
Cover, Rear Axle Inboard Joint End
[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
42344-30030 |
— | ||
|
42346A
|
42346A
42345-0W010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1998 - 04.2001] JCG1# ＧＫＮ |
42345-0W010 |
US $7.28 |
||
|
42346A
|
42346A
42345-30080 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1998 - 04.2001] JCG1# 内径＝３６．１,ＴＯＹＯＴＡ |
42345-30080 |
US $5.24 |
||
|
42346B
|
42346B
42345-0W020 Clamp, No. 2 (For Rr Drive Shaft Outboard Joint Boot)[05.1998 - 04.2001] JCG1# ＧＫＮ |
42345-0W020 |
US $4.95 |
||
|
42346B
|
42346B
42345-30070 Clamp, No. 2 (For Rr Drive Shaft Outboard Joint Boot)[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
42345-30070 |
US $6.46 |
||
|
42347A
|
42347A
42345-0W010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1998 - 04.2001] JCG1# ＧＫＮ |
42345-0W010 |
US $7.28 |
||
|
42347A
|
42347A
42345-30080 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1998 - 04.2001] JCG1# 内径＝３６．１,ＴＯＹＯＴＡ |
42345-30080 |
US $5.24 |
||
|
42347B
|
42347B
42345-0W020 Clamp, No. 2 (For Rr Drive Shaft Outboard Joint Boot)[05.1998 - 04.2001] JCG1# ＧＫＮ |
42345-0W020 |
US $4.95 |
||
|
42347B
|
42347B
42345-30070 Clamp, No. 2 (For Rr Drive Shaft Outboard Joint Boot)[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
42345-30070 |
US $6.46 |
||
|
42370A
|
42370A
42370-09005 Shaft Assy, Rear Drive Outboard Joint, Rh[05.1998 - 04.2001] JCG1# ＧＫＮ |
42370-09005 |
US $653.74 |
||
|
42370A
|
42370A
42370-39135 Shaft Assy, Rear Drive Outboard Joint, Rh[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
42370-39135 |
US $658.11 |
||
| replacement | |||||
|
42370A
|
42370A
42370-39295 Shaft Assy, Rear Drive Outboard Joint, Rh[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
42370-39295 |
US $725.09 |
||
|
42380
|
42380
42380-09005 Shaft Assy, Rear Drive Outboard Joint, Lh[05.1998 - 04.2001] JCG1# ＧＫＮ |
42380-09005 |
US $628.99 |
||
|
42380
|
42380
42380-39055 Shaft Assy, Rear Drive Outboard Joint, Lh[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
42380-39055 |
US $636.27 |
||
| replacement | |||||
|
42380
|
42380
42380-39165 Shaft Assy, Rear Drive Outboard Joint, Lh[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
42380-39165 |
US $704.70 |
||
|
42451A
|
42451A
42453-50010 Deflector, Rear Wheel Bearing Dust, No.1 Rh[05.1998 - 04.2001] JCG1# |
42453-50010 |
from US $9.34 |
||
|
42451B
|
42451B
42453-50010 Deflector, Rear Wheel Bearing Dust, No.1 Rh[05.1998 - 04.2001] JCG1# |
42453-50010 |
from US $9.34 |
||
|
43409D
|
43409D
43409-0W010 Joint Sub-Assy, Rear Drive Shaft Cross Groove[05.1998 - 04.2001] JCG1# ＧＫＮ |
43409-0W010 |
US $398.94 |
||
|
43409D
|
43409D
43409-30030 Joint Sub-Assy, Rear Drive Shaft Cross Groove[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
43409-30030 |
US $398.94 |
||
|
43409F
|
43409F
43425-0W020 Ring, Snap (For Rear Drive Shaft Cross Groove Joint)[05.1998 - 04.2001] JCG1# ＧＫＮ |
43425-0W020 |
US $1.16 |
||
|
43409F
|
43409F
90520-26028 Ring, Snap (For Rear Drive Shaft)[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
90520-26028 |
from US $1.76 |
||
|
43446
|
43446
43446-09005 Cover, Rear Axle Inboard Joint[05.1998 - 04.2001] JCG1# ＧＫＮ |
43446-09005 |
US $32.03 |
||
|
43446
|
43446
43446-30010 Cover, Rear Axle Inboard Joint[05.1998 - 04.2001] JCG1# ＴＯＹＯＴＡ |
43446-30010 |
US $16.31 |
||
|
43489
|
43489
43489-30020 Washer, Rear Drive Shaft Cross Groove Joint[05.1998 - 04.2001] JCG1# |
43489-30020 |
US $7.20 |
||
