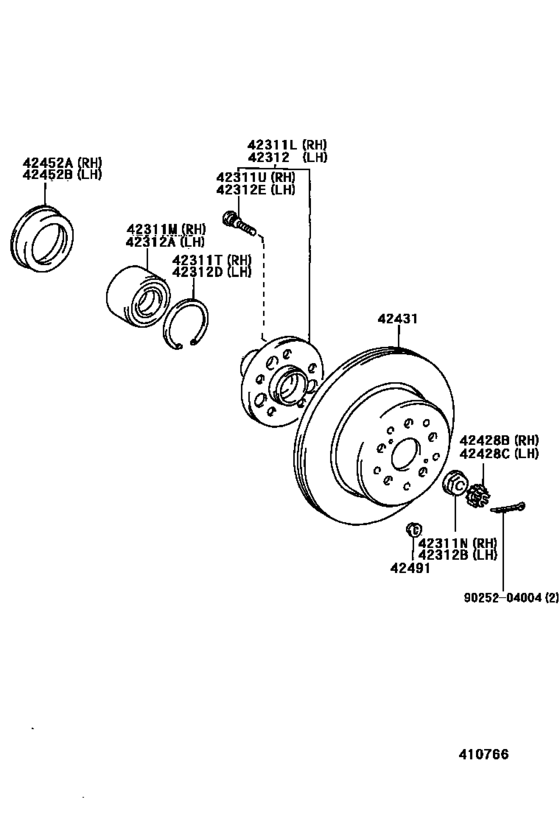

Rear Axle Shaft & Hub ([05.1998 - ] (9805- )) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311L
|
42311L
42301-30040 Shaft, Rear Axle, Rh[05.1998 - 04.2001] JCG1# |
42301-30040 |
US $221.76 |
||
|
42311M
|
42311M
90369-49002 Bearing (For Rear Axle Shaft)[05.1998 - 04.2001] JCG1# |
90369-49002 |
from US $88.18 |
||
|
42311N
|
42311N
90179-26006 Nut (For Rear Axle Shaft)[05.1998 - 04.2001] JCG1# |
90179-26006 |
from US $3.16 |
||
|
42311T
|
42311T
90520-77001 Ring, Snap[05.1998 - 04.2001] JCG1# |
90520-77001 |
from US $3.18 |
||
|
42311U
|
42311U
90942-02070 Bolt, Hub[05.1998 - 04.2001] JCG1# |
90942-02070 |
US $3.67 |
||
| replacements | |||||
|
42311U
|
42311U
90942-02049 Bolt, Hub[05.1998 - 04.2001] JCG1# |
90942-02049 |
US $3.84 |
||
|
42311U
|
42311U
90942-02082 Bolt, Hub[05.1998 - 04.2001] JCG1# |
90942-02082 |
from US $2.46 |
||
|
42312
|
42312
42301-30040 Shaft, Rear Axle, Rh[05.1998 - 04.2001] JCG1# |
42301-30040 |
US $221.76 |
||
|
42312A
|
42312A
90369-49002 Bearing (For Rear Axle Shaft)[05.1998 - 04.2001] JCG1# |
90369-49002 |
from US $88.18 |
||
|
42312B
|
42312B
90179-26006 Nut (For Rear Axle Shaft)[05.1998 - 04.2001] JCG1# |
90179-26006 |
from US $3.16 |
||
|
42312D
|
42312D
90520-77001 Ring, Snap[05.1998 - 04.2001] JCG1# |
90520-77001 |
from US $3.18 |
||
|
42312E
|
42312E
90942-02070 Bolt, Hub[05.1998 - 04.2001] JCG1# |
90942-02070 |
US $3.67 |
||
| replacements | |||||
|
42312E
|
42312E
90942-02049 Bolt, Hub[05.1998 - 04.2001] JCG1# |
90942-02049 |
US $3.84 |
||
|
42312E
|
42312E
90942-02082 Bolt, Hub[05.1998 - 04.2001] JCG1# |
90942-02082 |
from US $2.46 |
||
|
42428B
|
42428B
42428-24010 Plate, Rear Axle Lock Nut[05.1998 - 04.2001] JCG1# |
42428-24010 |
from US $9.56 |
||
|
42428C
|
42428C
42428-24010 Plate, Rear Axle Lock Nut[05.1998 - 04.2001] JCG1# |
42428-24010 |
from US $9.56 |
||
|
42431
|
42431
42431-51010 Disc, Rear[05.1998 - 04.2001] JCG1# |
42431-51010 |
US $159.84 |
||
|
42452A
|
42452A
42451-30010 Deflecter, Rear Wheel Bearing Dust, No.2 Rh[05.1998 - 04.2001] JCG1# |
42451-30010 |
from US $14.40 |
||
|
42452B
|
42452B
42451-30010 Deflecter, Rear Wheel Bearing Dust, No.2 Rh[05.1998 - 04.2001] JCG1# |
42451-30010 |
from US $14.40 |
||
|
42491
|
42491
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[05.1998 - 04.2001] JCG1# |
47491-22020 |
from US $1.77 |
||
|
9025204004
|
9025204004
90252-04004 PIN COTTER |
90252-04004 |
US $1.44 |
||
