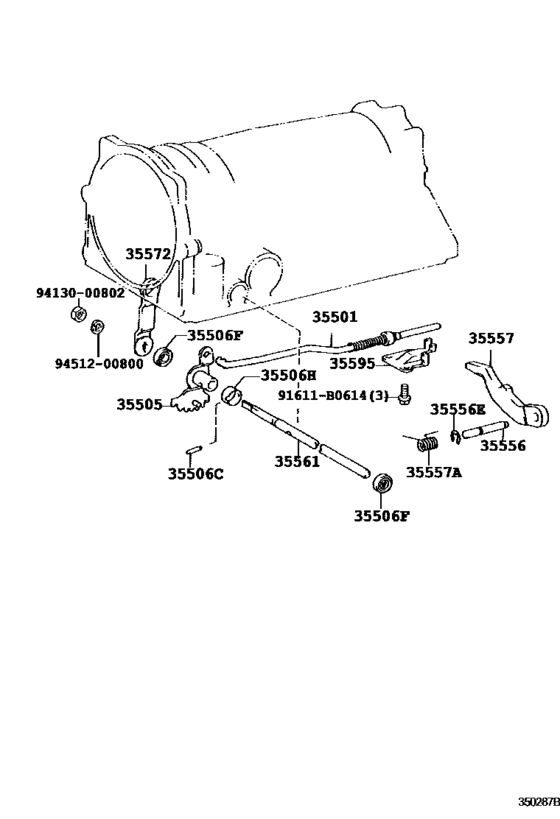

Throttle Link & Valve Lever (Atm) ([05.1998 - ] A340E,A650E (9805- )JCG10,11) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-30010 Rod Sub-Assy, Parking Lock[05.1998 - 04.2001] JCG10,11 |
35501-30010 |
US $49.21 |
||
|
35505
|
35505
35505-50010 Lever Sub-Assy, Manual Valve[05.1998 - 04.2001] JCG10,11 |
35505-50010 |
US $26.79 |
||
|
35506C
|
35506C
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[05.1998 - 04.2001] JCG1# |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[05.1998 - 04.2001] JCG1# |
90311-12002 |
from US $4.29 |
||
|
35506H
|
35506H
90560-20006 Spacer (For Manual Valve Lever)[05.1998 - 04.2001] JCG1# |
90560-20006 |
from US $2.77 |
||
|
35556
|
35556
35556-30020 Shaft, Parking Lock Pawl[05.1998 - 04.2001] JCG1# |
35556-30020 |
US $6.81 |
||
|
35556E
|
35556E
90523-08021 Ring, E (For Parking Lock Pawl Shaft)[05.1998 - 04.2001] JCG1# |
90523-08021 |
US $1.05 |
||
|
35557
|
35557
35557-30020 Pawl, Parking Lock[05.1998 - 04.2001] JCG10,11 |
35557-30020 |
US $41.06 |
||
|
35557A
|
35557A
90508-21002 Spring, Torsion (For Parking Lock Pawl)[05.1998 - 04.2001] JCG1# |
90508-21002 |
US $2.97 |
||
|
35561
|
35561
35561-30070 Shaft Sub-Assy, Manual Valve Lever[05.1998 - 04.2001] JCG10,11 |
35561-30070 |
US $37.39 |
||
|
35572
|
35572
35572-30070 Lever, Transmission Control Shaft, Rh[05.1998 - 04.2001] JCG10,11 |
35572-30070 |
US $6.41 |
||
|
35595
|
35595
35595-30010 Bracket, Parking Lock Pawl[05.1998 - 04.2001] JCG10,11 |
35595-30010 |
US $13.54 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
