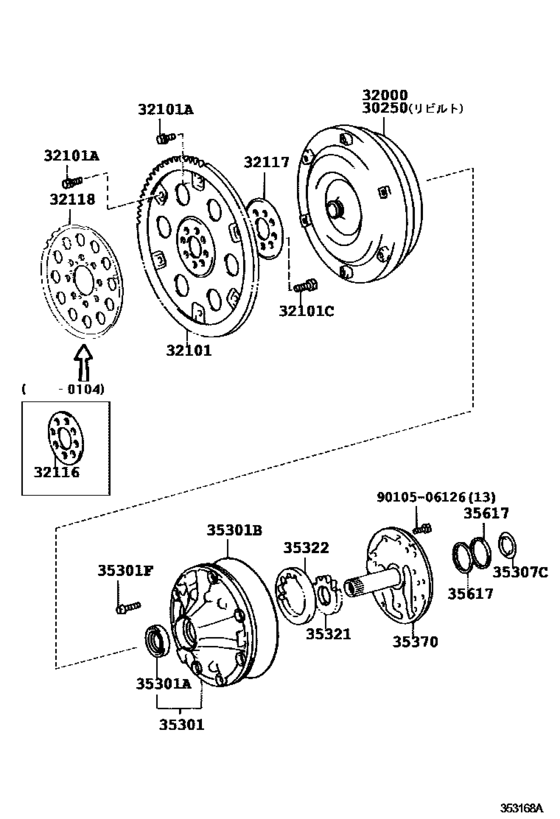

Torque Converter, Front Oil Pump & Chain (Atm) ([05.1998 - ] A340E,A340H,A650E (9805- )) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30250
|
30250
30250-22201 Converter Assy, Torque, Rebuilt[05.1998 - 04.2001] JCG10 |
30250-22201 |
US $1,268.18 |
||
|
32000
|
32000
32000-22201 Converter Assy, Torque[05.1998 - 04.2001] JCG10 |
32000-22201 |
US $1,820 |
||
|
32101
|
32101
32101-22050 Gear Sub-Assy, Drive Plate & Ring[05.1998 - 04.2001] JCG1# |
32101-22050 |
US $270.82 |
||
|
32101A
|
32101A
90119-09009 Bolt(For Drive Plate & Torque Converter Setting)[05.1998 - 04.2001] JCG1# ＊９−１．２５ＰＸ１２．８−８．８,イエロー |
90119-09009 |
from US $1.07 |
||
|
32101A
|
32101A
90119-09010 Bolt(For Drive Plate & Torque Converter Setting)[05.1998 - 04.2001] JCG1# ＊９−１．２５ＰＸ１２．８−９,グリーン |
90119-09010 |
from US $2.56 |
||
|
32101C
|
32101C
90105-10294 Bolt, Flywheel Setting[05.1998 - 04.2001] JCG1# ＊１０−１．２５ＰＸ２２−１５ |
90105-10294 |
from US $1.15 |
||
|
32116
|
32116
32116-22020 Spacer, Drive Plate, Front[05.1998 - 04.2001] JCG1# |
32116-22020 |
US $23.41 |
||
|
32117
|
32117
32117-22020 Spacer, Drive Plate, Rear[05.1998 - 04.2001] JCG1# |
32117-22020 |
US $10.13 |
||
|
35301
|
35301
35301-35010 Body Sub-Assy, Front Oil Pump[05.1998 - 04.2001] JCG1# |
35301-35010 |
US $255.09 |
||
|
35301A
|
35301A
90311-38029
Seal, Oil (For Front Oil Pump)
[05.1998 - 04.2001] JCG1# |
90311-38029 |
— | ||
| replacement | |||||
|
35301A
|
35301A
90311-38020 Seal, Oil (For Front Oil Pump)[05.1998 - 04.2001] JCG1# |
90311-38020 |
from US $8.64 |
||
|
35301B
|
35301B
90301-99033 Ring, O (For Front Oil Pump Body)[05.1998 - 04.2001] JCG1# |
90301-99033 |
from US $3.84 |
||
|
35301F
|
35301F
90105-08091 Bolt (For Front Oil Pump Setting)[05.1998 - 04.2001] JCG1# ＊８−１．２５ＰＸ３５−３５ |
90105-08091 |
US $1.89 |
||
|
35307C
|
35307C
35789-30020
Race, Thrust Bearing (For Stator Shaft)
[05.1998 - 06.1999] JCG1# 厚さ＝３．７ |
35789-30020 |
— | ||
| replacement | |||||
|
35307C
|
35307C
35789-30340 Race, Thrust Bearing (For Stator Shaft)[05.1998 - 06.1999] JCG1# 厚さ＝３．７ |
35789-30340 |
US $5.24 |
||
|
35307C
|
35307C
35789-30340 Race, Thrust Bearing (For Stator Shaft)[06.1999 - 04.2001] JCG1# 厚さ＝３．７ |
35789-30340 |
US $5.24 |
||
|
35321
|
35321
35321-12020 Gear, Front Oil Pump Drive[05.1998 - 04.2001] JCG1# 厚さ＝１０．６９０−１０．６９９ |
35321-12020 |
US $47.12 |
||
|
35321
|
35321
35321-12030 Gear, Front Oil Pump Drive[05.1998 - 04.2001] JCG1# 厚さ＝１０．７００−１０．７０９ |
35321-12030 |
US $41.64 |
||
|
35321
|
35321
35321-12040
Gear, Front Oil Pump Drive
[05.1998 - 04.2001] JCG1# 厚さ＝１０．７１０−１０．７２０ |
35321-12040 |
— | ||
|
35321
|
35321
35321-12050 Gear, Front Oil Pump Drive[05.1998 - 04.2001] JCG1# 厚さ＝１０．７２１−１０．７３０ |
35321-12050 |
US $41.64 |
||
|
35321
|
35321
35321-12060
Gear, Front Oil Pump Drive
[05.1998 - 04.2001] JCG1# 厚さ＝１０．７３１−１０．７４０ |
35321-12060 |
— | ||
|
35322
|
35322
35322-12010 Gear, Front Oil Pump Driven[05.1998 - 04.2001] JCG1# 厚さ＝１０．６９０−１０．６９９ |
35322-12010 |
US $50.33 |
||
|
35322
|
35322
35322-12020 Gear, Front Oil Pump Driven[05.1998 - 04.2001] JCG1# 厚さ＝１０．７００−１０．７０９ |
35322-12020 |
US $44.55 |
||
|
35322
|
35322
35322-12030 Gear, Front Oil Pump Driven[05.1998 - 04.2001] JCG1# 厚さ＝１０．７１０−１０．７２０ |
35322-12030 |
US $44.55 |
||
|
35322
|
35322
35322-12040 Gear, Front Oil Pump Driven[05.1998 - 04.2001] JCG1# 厚さ＝１０．７２１−１０．７３０ |
35322-12040 |
US $44.55 |
||
|
35322
|
35322
35322-12050
Gear, Front Oil Pump Driven
[05.1998 - 04.2001] JCG1# 厚さ＝１０．７３１−１０．７４０ |
35322-12050 |
— | ||
|
35370
|
35370
35370-30031 Shaft Sub-Assy, Stator[05.1998 - 04.2001] JCG1# |
35370-30031 |
US $288.29 |
||
|
35617
|
35617
35617-30020 Ring, Clutch Drum Oil Seal[05.1998 - 04.2001] JCG1# |
35617-30020 |
from US $15.97 |
||
|
9010506126
|
9010506126
90105-06126 Bolt (For Stator Shaft) |
90105-06126 |
US $0.87 |
||
