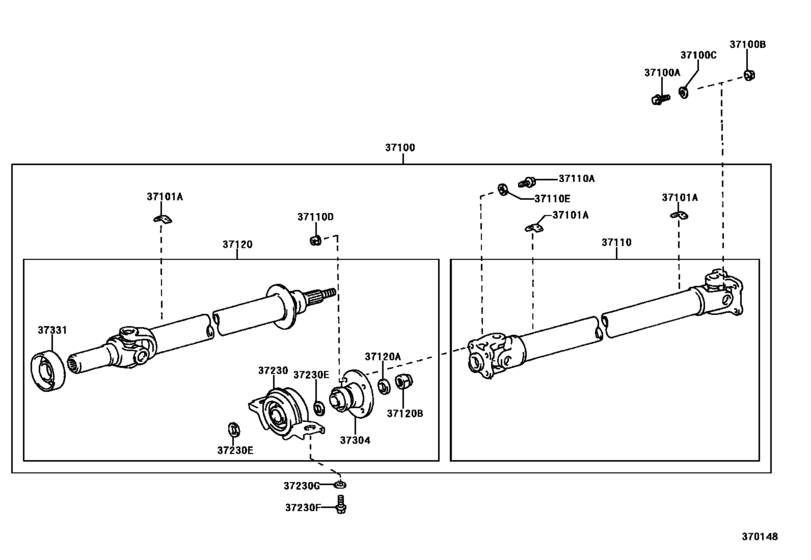

Propeller Shaft & Universal Joint ([12.1999 - 04.2001] ﾘﾔ (9912-0104)JCG15) Diagram Toyota PROGRES
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- JCG15
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 12.1999
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-30740
Shaft Assy, Propeller W/center Bearing
[12.1999 - 04.2001] JCG15 |
37100-30740 |
— | ||
|
37100A
|
37100A
90105-10466 Bolt, No.1 (For Propeller Shaft & Differential Setting)[09.1999 - 04.2001] JCG1# |
90105-10466 |
US $2.24 |
||
|
37100B
|
37100B
90178-10007 Nut, No.1 (For Propeller Shaft & Differential Setting)[09.1999 - 04.2001] JCG1# |
90178-10007 |
from US $0.90 |
||
|
37100C
|
37100C
90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)[09.1999 - 04.2001] JCG1# |
90560-10102 |
from US $1.12 |
||
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[12.1999 - 04.2001] JCG15 １０Ｇ，長さ＝２０．７ |
90937-01132 |
US $3.52 |
||
|
37101A
|
37101A
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２０Ｇ，長さ＝４１．４ |
90937-01136 |
US $3.20 |
||
|
37101A
|
37101A
90937-01140 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ３０Ｇ，長さ＝６２．２ |
90937-01140 |
US $3.49 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２Ｇ，厚さ＝２．０ |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ４Ｇ，厚さ＝２．０ |
90937-01148 |
US $2.24 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[12.1999 - 04.2001] JCG15 ６Ｇ，長さ＝１２．４ |
90937-01149 |
US $2.24 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[12.1999 - 04.2001] JCG15 ８Ｇ，長さ＝１６．６ |
90937-01150 |
US $2.24 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[12.1999 - 04.2001] JCG15 １２Ｇ，長さ＝２４．９ |
90937-01151 |
US $2.40 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[12.1999 - 04.2001] JCG15 １４Ｇ，長さ＝２９．０ |
90937-01152 |
US $2.24 |
||
|
37101A
|
37101A
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 １６Ｇ，長さ＝３３．２ |
90937-01153 |
US $1.31 |
||
|
37101A
|
37101A
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 １８Ｇ，長さ＝３７．３ |
90937-01154 |
US $1.75 |
||
|
37101A
|
37101A
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２２Ｇ，長さ＝４５．６ |
90937-01155 |
US $1.75 |
||
|
37101A
|
37101A
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２４Ｇ，長さ＝４９．７ |
90937-01156 |
US $1.75 |
||
|
37101A
|
37101A
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２６Ｇ，長さ＝５３．９ |
90937-01157 |
US $1.75 |
||
|
37101A
|
37101A
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ２８Ｇ，長さ＝５８．１ |
90937-01158 |
US $1.75 |
||
|
37101A
|
37101A
90937-01311 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ３Ｇ |
90937-01311 |
US $6.41 |
||
|
37101A
|
37101A
90937-01312 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ５Ｇ |
90937-01312 |
US $6.41 |
||
|
37101A
|
37101A
90937-01313 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ７Ｇ，長さ＝１４．４ |
90937-01313 |
US $6.41 |
||
|
37101A
|
37101A
90937-01314 Piece, Balance, No.1 (For Propeller Shaft)[05.1998 - 04.2001] JCG10,15 ９Ｇ，長さ＝１８．５ |
90937-01314 |
US $6.41 |
||
|
37110
|
37110
37110-51020
Shaft Assy, Propeller
[12.1999 - 04.2001] JCG15 |
37110-51020 |
— | ||
|
37110A
|
37110A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[12.1999 - 04.2001] JCG15 ＊１０−１．００ＰＸ２７−１３ |
90105-10085 |
from US $1.21 |
||
| replacement | |||||
|
37110A
|
37110A
90080-10294 Bolt, No.1 (For Propeller Shaft & Differential Setting)[12.1999 - 04.2001] JCG15 ＊１０−１．００ＰＸ２７−１３ |
90080-10294 |
US $6.47 |
||
|
37110D
|
37110D
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[12.1999 - 04.2001] JCG15 |
90179-10059 |
from US $2.36 |
||
| replacement | |||||
|
37110D
|
37110D
90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting)[12.1999 - 04.2001] JCG15 |
90080-17239 |
US $8.96 |
||
|
37110E
|
37110E
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[12.1999 - 04.2001] JCG15 |
90204-10002 |
— | ||
| replacement | |||||
|
37110E
|
37110E
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[12.1999 - 04.2001] JCG15 |
90560-10H00 |
from US $5.46 |
||
|
37120
|
37120
37120-30630 Shaft Assy, Propeller Intermediate[12.1999 - 04.2001] JCG15 |
37120-30630 |
US $845.94 |
||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[05.1998 - 04.2001] JCG1# 外径＝３３．５，厚さ＝４．０ |
90201-18182 |
from US $2.88 |
||
|
37120B
|
37120B
90179-18009 Nut (For Propeller Intermediate Shaft Setting)[05.1998 - 04.2001] JCG1# |
90179-18009 |
from US $1.72 |
||
|
37230
|
37230
37230-51010 Bearing Assy, Center Support, No.1[05.1998 - 04.2001] JCG1# |
37230-51010 |
US $168.48 |
||
|
37230E
|
37230E
90201-25006 Washer, Plate (For Propeller Intermediate Shaft Set)[05.1998 - 04.2001] JCG1# |
90201-25006 |
US $1.44 |
||
|
37230F
|
37230F
90119-10902 Bolt, No.1 (For Center Support Bearing)[09.1999 - 04.2001] JCG1# 長さ＝３３ |
90119-10902 |
US $1.92 |
||
|
37230F
|
37230F
90387-10141 Bolt, No.1 (For Center Support Bearing)[12.1999 - 04.2001] JCG15 厚さ＝１５ |
90387-10141 |
US $8.44 |
||
|
37230F
|
37230F
90387-10142 Bolt, No.1 (For Center Support Bearing)[12.1999 - 04.2001] JCG15 厚さ＝１７ |
90387-10142 |
US $9.90 |
||
|
37230F
|
37230F
90387-10143 Bolt, No.1 (For Center Support Bearing)[12.1999 - 04.2001] JCG15 厚さ＝１９ |
90387-10143 |
US $8 |
||
|
37230G
|
37230G
90201-10083 Washer, No.1 (For Center Support Bearing)[12.1999 - 04.2001] JCG15 厚さ＝６．５ |
90201-10083 |
US $3.84 |
||
|
37230G
|
37230G
90201-10084 Washer, No.1 (For Center Support Bearing)[12.1999 - 04.2001] JCG15 厚さ＝９．０ |
90201-10084 |
US $4.02 |
||
|
37230G
|
37230G
90201-10085 Washer, No.1 (For Center Support Bearing)[12.1999 - 04.2001] JCG15 厚さ＝１１．０ |
90201-10085 |
US $4.86 |
||
|
37230G
|
37230G
90201-10086 Washer, No.2 (For Center Support Bearing)[12.1999 - 04.2001] JCG15 厚さ＝１３．５ |
90201-10086 |
US $6.12 |
||
|
37230G
|
37230G
90201-10128 Washer, No.2 (For Center Support Bearing)[02.2000 - 04.2001] JCG15 厚さ＝８．５ |
90201-10128 |
US $5.53 |
||
|
37304
|
37304
37304-35041 Flange Sub-Assy, Universal Joint[05.1998 - 04.2001] JCG1# |
37304-35041 |
from US $52.59 |
||
|
37331
|
37331
37331-30020 Cover, Sliding Shaft Dust[12.1999 - 04.2001] JCG15 |
37331-30020 |
US $16.02 |
||
