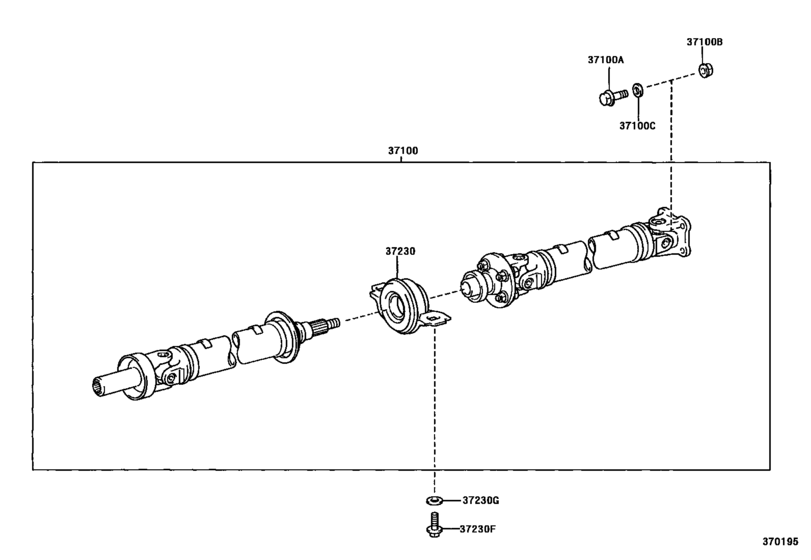

Propeller Shaft & Universal Joint ([04.2001 - ] ﾘﾔ (0104- )JCG15) Diagram Toyota PROGRES
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- JCG15
- body
- SED
- ENGINE
- 1JZFSE
- Model
- PROGRES
- From
- 04.2001
- To
- 06.2007
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-30740
Shaft Assy, Propeller W/center Bearing
[04.2001 -] JCG15 |
37100-30740 |
— | ||
|
37100A
|
37100A
90105-10466 Bolt, No.1 (For Propeller Shaft & Differential Setting)[04.2001 -] JCG1# |
90105-10466 |
US $2.24 |
||
|
37100B
|
37100B
90178-10007 Nut, No.1 (For Propeller Shaft & Differential Setting)[04.2001 -] JCG1# |
90178-10007 |
from US $0.90 |
||
|
37100C
|
37100C
90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)[04.2001 -] JCG1# |
90560-10102 |
from US $1.12 |
||
|
37230
|
37230
37230-59015 Bearing Assy, Center Support, No.1[04.2001 -] JCG1# |
37230-59015 |
US $168.48 |
||
|
37230F
|
37230F
90119-10902 Bolt, No.1 (For Center Support Bearing)[04.2001 -] JCG1# 長さ＝３３ |
90119-10902 |
US $1.92 |
||
|
37230F
|
37230F
90387-10141 Bolt, No.1 (For Center Support Bearing)[04.2001 -] JCG15 厚さ＝１５ |
90387-10141 |
US $8.44 |
||
|
37230F
|
37230F
90387-10142 Bolt, No.1 (For Center Support Bearing)[04.2001 -] JCG15 厚さ＝１７ |
90387-10142 |
US $9.90 |
||
|
37230F
|
37230F
90387-10143 Bolt, No.1 (For Center Support Bearing)[04.2001 -] JCG15 厚さ＝１９ |
90387-10143 |
US $8 |
||
|
37230G
|
37230G
90201-10083 Washer, No.1 (For Center Support Bearing)[04.2001 -] JCG15 厚さ＝６．５ |
90201-10083 |
US $3.84 |
||
|
37230G
|
37230G
90201-10084 Washer, No.1 (For Center Support Bearing)[04.2001 -] JCG15 厚さ＝９．０ |
90201-10084 |
US $4.02 |
||
|
37230G
|
37230G
90201-10085 Washer, No.1 (For Center Support Bearing)[04.2001 -] JCG15 厚さ＝１１．０ |
90201-10085 |
US $4.86 |
||
|
37230G
|
37230G
90201-10086 Washer, No.2 (For Center Support Bearing)[04.2001 -] JCG15 厚さ＝１３．５ |
90201-10086 |
US $6.12 |
||
|
37230G
|
37230G
90201-10128 Washer, No.2 (For Center Support Bearing)[04.2001 -] JCG15 厚さ＝８．５ |
90201-10128 |
US $5.53 |
