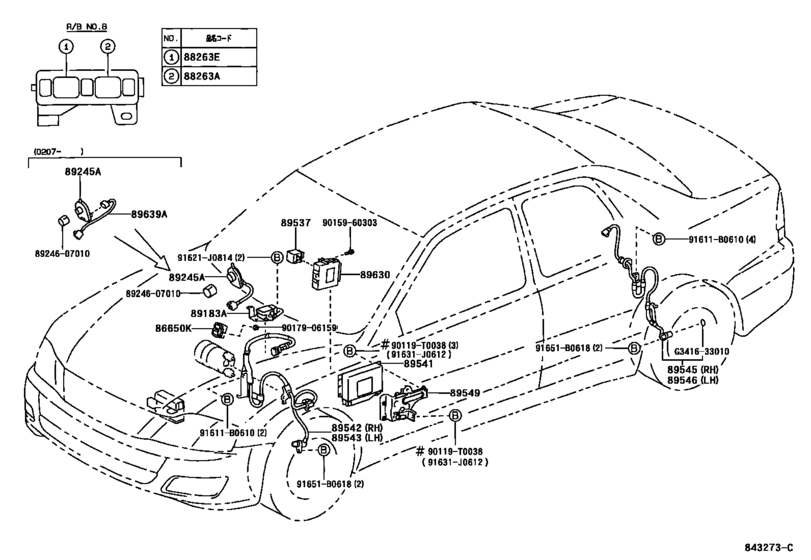

Abs & Vsc ([02.2000 - ] (0002- )) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86650K
|
86650K
86650-41010 Buzzer Assy, Skid Control[02.2000 - 07.2002] MCX20 |
86650-41010 |
US $31.16 |
||
|
88263A
|
88263A
88263-24020 Relay, Skid Control[02.2000 - 07.2002] MCX20 |
88263-24020 |
from US $45.98 |
||
|
88263E
|
88263E
88263-24030 Relay, Skid Control[02.2000 - 07.2002] MCX20 |
88263-24030 |
from US $48.40 |
||
|
89183A
|
89183A
89183-07010 Sensor, Yawrate[02.2000 - 07.2002] MCX20 |
89183-07010 |
US $1,616.16 |
||
|
89183A
|
89183A
89183-07020 Sensor, Yawrate[07.2002 - 01.2003] MCX20 |
89183-07020 |
US $1,616.16 |
||
|
89245A
|
89245A
89245-05010 Sensor, Steering[07.2002 - 01.2003] MCX20 |
89245-05010 |
US $278.50 |
||
|
89245A
|
89245A
89245-07010 Sensor, Steering[02.2000 - 02.2002] MCX20 |
89245-07010 |
US $315.95 |
||
| replacement | |||||
|
89245A
|
89245A
89245-07011
Sensor, Steering
[02.2000 - 02.2002] MCX20 |
89245-07011 |
— | ||
|
89245A
|
89245A
89245-07011
Sensor, Steering
[02.2002 - 07.2002] MCX20 |
89245-07011 |
— | ||
|
89537
|
89537
89537-41010 Relay, Active Lamp[02.2000 - 07.2002] MCX20 |
89537-41010 |
US $66.25 |
||
|
89541
|
89541
89541-07030 Computer, Skid Control[02.2000 - 07.2002] MCX20 |
89541-07030 |
US $3,479.84 |
||
|
89541
|
89541
89541-07040 Computer, Skid Control[07.2002 - 01.2003] MCX20 |
89541-07040 |
US $3,479.84 |
||
|
89542
|
89542
89542-33050 Sensor, Speed[02.2000 - 07.2002] MCX20 |
89542-33050 |
US $292.66 |
||
|
89543
|
89543
89543-33050 Sensor, Speed[02.2000 - 07.2002] MCX20 |
89543-33050 |
US $292.66 |
||
|
89545
|
89545
89545-33020 Sensor, Speed, Rear, Rh[02.2000 - 07.2002] MCX20 |
89545-33020 |
US $292.66 |
||
|
89546
|
89546
89546-33020 Sensor, Speed, Rear, Lh[02.2000 - 07.2002] MCX20 |
89546-33020 |
from US $208.26 |
||
|
89549
|
89549
89549-41050 Bracket, Skid Control Computer[02.2000 - 07.2002] MCX20 |
89549-41050 |
US $57.51 |
||
|
89630
|
89630
89630-07020 Computer Assy, Translate[07.2002 - 01.2003] MCX20 |
89630-07020 |
US $856.13 |
||
|
89630
|
89630
89630-41030 Computer Assy, Translate[02.2000 - 07.2002] MCX20 |
89630-41030 |
US $856.13 |
||
|
89639A
|
89639A
89639-07010 Wire, Brake Control[07.2002 - 01.2003] MCX20 |
89639-07010 |
US $11.65 |
||
|
90119T0038
|
90119T0038
90119-T0038 BOLT WWASHER |
90119-T0038 |
US $0.73 |
||
|
91611B0610
|
91611B0610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
8924607010
|
8924607010
89246-07010 Disc, Sensor Steering |
89246-07010 |
US $45.72 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
G341633010
|
G341633010
G3416-33010 New Genuine Part |
G3416-33010 |
US $1.31 |
||
