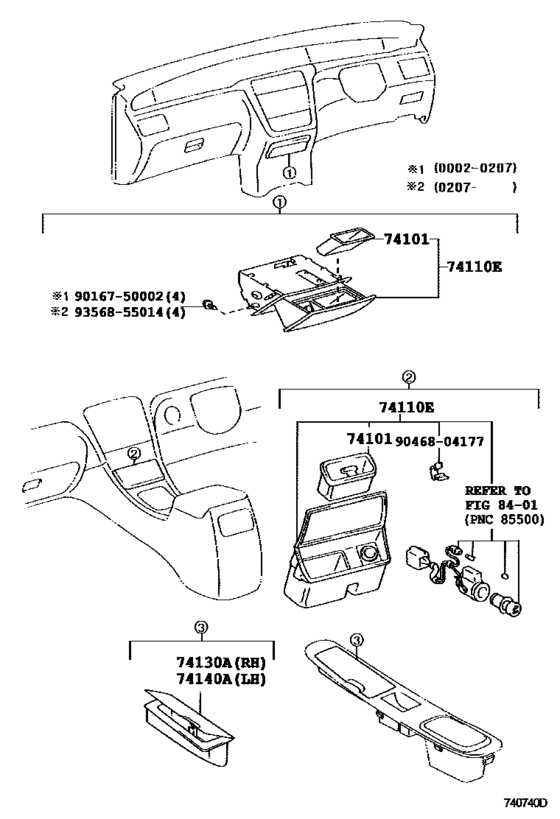

Ash Receptacle ([02.2000 - ] (0002- )) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74101
|
74101
74101-AC030 Receptacle Sub-Assy, Front Ash[02.2000 - 07.2002] MCX20..4HC |
74101-AC030 |
US $38.73 |
||
|
74110E
|
74110E
74110-AC050-A0 Receptacle Assy, Front Ash[02.2000 - 07.2002] MCX20..4HC IVORY,TRIM0# |
74110-AC050-A0 |
US $248.98 |
||
|
74110E
|
74110E
74110-AC050-E0 Receptacle Assy, Front Ash[07.2002 - 01.2003] MCX20..4HC FAWN,TRIM4# |
74110-AC050-E0 |
US $248.98 |
||
|
74130A
|
74130A
74130-AC030 Receptacle Assy, Rear Ash, Rh[02.2000 - 07.2002] MCX20 |
74130-AC030 |
from US $67.85 |
||
|
74140A
|
74140A
74140-AC030 Receptacle Assy, Rear Ash, Lh[02.2000 - 07.2002] MCX20 |
74140-AC030 |
US $67.85 |
||
|
9016750002
|
9016750002
90167-50002
Direct
|
90167-50002 |
— | ||
| replacement | |||||
|
9016750002
|
9016750002
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
